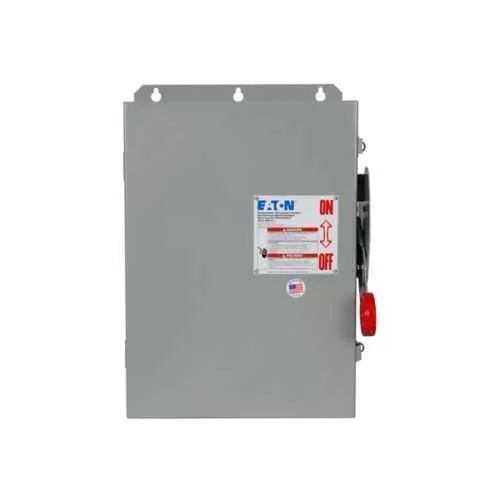

Eaton DCG6063FPM DC disconnect/grounded system - NEMA 4
Part Number: DCG6063FPM
Quick Summary
Eaton DCG6063FPM is a heavy-duty DC disconnect designed for solar photovoltaic systems. For engineers and procurement teams, selecting a reliable disconnect reduces field faults and downtime during maintenance. It meets NEC 690 per UL 1741 and UL 98B certifications and features a NEMA 4 enclosure, enabling safe outdoor operation in harsh environments. With a 100 A rating across six circuits and a grounded, fusible design, this unit delivers robust protection for PV arrays and balance-of-system components. The rugged painted galvanized steel enclosure, compatibility with In/Out LC/SR terminals (1/0-#14 AWG), and straightforward installation streamline project schedules and support ongoing compliance across industrial rooftops and ground-mounted installations.
Product Information
Extended Description
DCG6063FPM Eaton: Eaton heavy-duty DC disconnect,100A,Solar,Painted steel,Fusible,Grounded,In/Out(LC/SR): 1/0-#14 AWG,600 Vdc,NEMA 4,6,Fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6063FPM
UPC
786685557298
Product Length/Depth
10.22 in
Product Height
24.95 in
Product Width
16.13 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
100A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Fusible
Application
Solar
Main lug wire size
In/Out(LC/SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
Heavy duty safety DC photovoltaic systems Single-throw
Protection
Fusible
Feature: Heavy-duty DC disconnect body with six-pole configuration. Benefit: Provides centralized, reliable switching for multiple PV circuits, reducing installation complexity and improving system safety in high-current solar arrays. Application: Ideal for outdoor solar installations where multiple strings require coordinated isolation. Feature: 100 A amperage rating. Benefit: Supports typical commercial and utility-scale PV strings with margin for startup transients, improving overall system uptime and return on investment. Application: Large-roof and ground-mounted PV projects. Feature: Fusible protection and grounded design. Benefit: Enhances fault protection and minimizes shock hazards, ensuring safer maintenance and reducing risk of arc faults in energized systems. Application: Environments with elevated risk or strict safety requirements. Feature: NEMA 4 enclosure with painted galvanized steel. Benefit: Weather-resistant housing resists dust, rain, and corrosion, enabling long service life in outdoor installations. Application: Outdoor PV arrays, equipment rooms, and exposed installations. Feature: In/Out terminals rated for 1/0-#14 AWG conductors. Benefit: Simplifies wiring from modules to combiner boxes, reducing field cabling errors and speeding up installation. Application: Common PV conductor sizes and layouts. Feature: 600 VDC maximum and six-pole configuration. Benefit: Supports standard solar array voltages while keeping a compact, modular footprint. Application: Commercial rooftop and utility-scale projects. Feature: Compliance indicators NEC 690 per UL 1741 and UL 98B. Benefit: Ensures code-aligned safety and performance, reducing regulatory risks. Application: Solar safety compliance and third-party verification. Feature: NEMA 4 enclosure and protective fusible design. Benefit: Provides rugged protection against environmental hazards and facilitates reliable maintenance access. Application: Harsh outdoor environments with frequent maintenance needs. Feature: One-year warranty (or 18 months from shipment per Eaton policy). Benefit: Minimized risk and predictable total cost of ownership over the product life. Application: Project budgeting and procurement planning.
