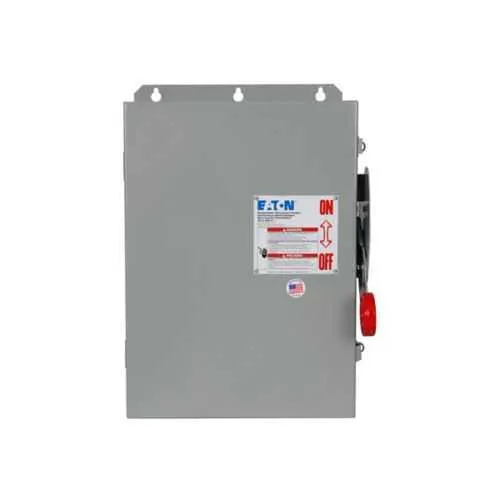

Eaton DCG6063UPM DC Disconnect - 600 VDC, NEMA 4
Part Number: DCG6063UPM
Quick Summary
Eaton heavy duty DC disconnect is a rugged, reliable solution to safely isolate DC circuits in solar PV installations. For engineers and procurement teams, downtime and safety incidents during maintenance are major risks, especially in outdoor environments. This device meets NEC 690 per UL 1741 and UL 98B, and it uses a NEMA 4 enclosure to withstand harsh conditions. With a grounded, six-pole, non-fusible design rated at 100 A and 600 VDC, it offers straightforward wiring (In/Out: 1/0–#14 AWG) and robust PV system isolation. Designed for solar applications, it complements Eaton’s protection line while supporting compliant, efficient installations and reduced maintenance costs.
Product Information
Extended Description
DCG6063UPM Eaton: Eaton heavy-duty DC disconnect,100A,Solar,Painted steel,Non-fusible,Grounded,In/Out(LC/SR): 1/0-#14 AWG,600 Vdc,NEMA 4,6,Non-fusible,Six-pole,DC photovoltaic applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6063UPM
UPC
786685557267
Product Length/Depth
10.22 in
Product Height
24.95 in
Product Width
16.13 in
Product Weight
37 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
100A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC/SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Switch type
Single-throw Heavy duty safety DC photovoltaic systems
Protection
Non-fusible
Feature: 100 A amperage rating across six poles; Business Impact: Enables safe, simultaneous isolation of multiple DC strings, reducing the risk of arcing and enabling faster maintenance; Application: Solar PV arrays and rooftop installations. Feature: 600 VDC maximum voltage with NEMA 4 weatherproof enclosure; Business Impact: Provides outdoor-ready protection against dust, water, and corrosion, ensuring uptime in challenging environments; Application: Outdoor solar deployments and industrial PV sites. Feature: Non-fusible, grounded design; Business Impact: Simplifies compliance with NEC requirements and improves system safety by providing a clear DC disconnect path; Application: Grounded DC PV circuits in commercial installations. Feature: In/Out wiring rated 1/0–#14 AWG; Business Impact: Facilitates flexible, code-compliant wiring and reduces field wiring errors; Application: Main lug connections for six circuits. Feature: Durable painted galvanized steel enclosure; Business Impact: Extends service life in harsh environments, lowering total cost of ownership; Application: Outdoor and industrial DC disconnect installations. Feature: Certifications: NEC 690 per UL 1741, UL 98B; Business Impact: Helps satisfy code and utility requirements, streamlining project approval; Application: PV system approvals and code compliance.
