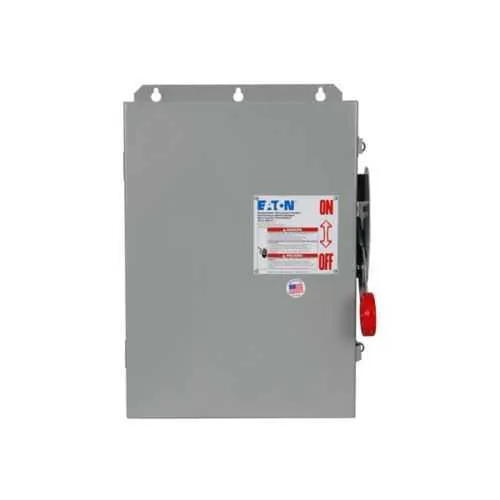

Eaton DCG6063URM DC Disconnect - NEMA 3R, 600 VDC
Part Number: DCG6063URM
Quick Summary
DCG6063URM DC disconnect is a rugged isolation switch designed for solar PV applications. It provides reliable, non-fusible DC isolation for 100A circuits, helping operators safely disconnect power during maintenance and emergency shutdowns. This unit carries UL 98B and NEC 690 per UL 1741 approvals and is housed in a weatherproof NEMA 3R enclosure for outdoor service. By combining a grounded six-pole design with a painted galvanized steel enclosure, it delivers durable, low-maintenance operation. For engineering teams, the combination of high availability, straightforward wiring (In/Out: 1/0–#14 AWG), and Eaton’s support ecosystem translates to reduced commissioning time and compliant installations across solar projects.
Product Information
Extended Description
DCG6063URM Eaton: Eaton heavy-duty DC disconnect,100A,Solar,Painted galvanized steel,Non-fusible,Grounded,In/Out(LC/SR): 1/0-#14 AWG,600 Vdc,NEMA 3R,6,Non-fusible,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6063URM
UPC
786685557205
Product Length/Depth
10.22 in
Product Height
24.95 in
Product Width
16.13 in
Product Weight
37 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/grounded system
Amperage Rating
100A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC/SR): 1/0-#14 AWG
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Switch type
Heavy duty safety Single-throw DC photovoltaic systems
Protection
Non-fusible
Feature: 100A, six-pole non-fusible DC disconnect delivers robust isolation for solar arrays, reducing arc-flash exposure and enabling safer maintenance. The six-pole configuration supports multiple conductors and simplifies wiring schemes in tight equipment spaces, delivering a clear path for safe shutdown in solar inverters and combiner boxes. This modular approach translates to faster commissioning and easier fault isolation during troubleshooting. Feature: NEMA 3R weatherproof enclosure and painted galvanized steel construction provide outdoor durability and corrosion resistance while minimizing enclosure footprint, enabling reliable operation in harsh environments. Feature: Main lug connections accept 1/0 to #14 AWG conductors, reducing the need for mid-span terminations and supporting common solar DC configurations. Feature: UL 98B and NEC 690 per UL 1741 certifications reinforce safety and regulatory compliance for outdoor solar installations. Feature: Warranty and support from Eaton 25-000 policy offers predictable service and quick RMA processing to minimize downtime.
Get a Quick Quote for a Eaton DCG6063URM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6063URM?
Enquire Now
FAQs
When deploying the DCG6063URM, plan for a grounded six-pole configuration in a NEMA 3R enclosure to withstand outdoor weather. Use In/Out connections rated 1/0–#14 AWG and ensure clear maintenance access. Verify proper wiring alignment with the six-pole layout to minimize commissioning time and to facilitate safe, rapid isolation during inverter servicing.
Key specs include a 100A amperage rating, six circuits, grounded configuration, and a maximum voltage of 600 VDC per pole. The unit is non-fusible, intended for DC photovoltaic applications, and supports 1/0–#14 AWG main lugs. This combination enables reliable isolation while meeting solar power system safety requirements.
Yes. The DCG6063URM is designed for outdoor solar PV installations, featuring a NEMA 3R enclosure and painted galvanized steel construction. Its weatherproof design, combined with UL 98B and NEC 690 per UL 1741 certifications, ensures safe operation in harsh environments and simplifies field implementation on rooftop or ground-mounted solar arrays.
This unit is certified to UL 98B and NEC 690 per UL 1741, suitable for solar PV applications. The enclosure carries a NEMA 3R rating, and the device is designed for grounded, non-fusible operation. These certifications help ensure compliance with common electrical codes and safer outdoor performance.
Eaton provides a standard warranty per policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. In addition, Eaton’s distribution and service network supports quicker RMA processing and access to technical resources for installation guidance and long-term system uptime.
