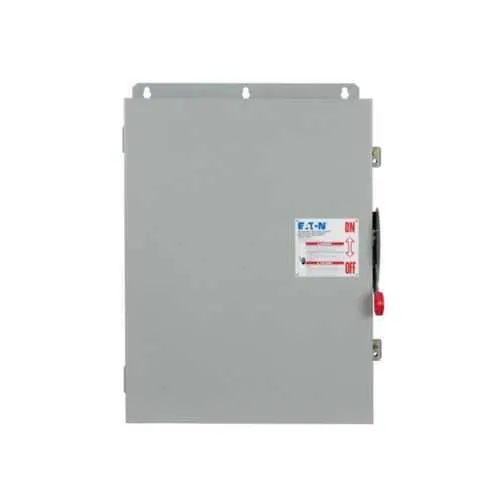

Eaton DCG6064UPM DC Disconnect - NEMA 4, 600 VDC
Part Number: DCG6064UPM
Quick Summary
The Eaton DCG6064UPM heavy-duty DC disconnect is designed to safely isolate solar DC circuits in commercial PV installations. Users often wrestle with complex wiring, limited space, and downtime during maintenance; this six-pole solution offers a compact, rugged, pre-wired option that simplifies field work. UL 98B and NEC 690 per UL 1741 compliance, plus a NEMA 4 enclosure, deliver rugged protection in outdoor industrial environments. With 200 A capacity and six circuits, it supports scalable solar PV layouts while boosting safety, uptime, and overall electrical protection in modern energy projects. This approach aligns with industrial electrical protection, energy management goals, and cost-effective maintenance strategies. The result is easier installation, fewer field modifications, and faster compliance checks.
Product Information
Extended Description
DCG6064UPM Eaton: Eaton heavy-duty DC disconnect,200A,Solar,Painted steel,Non-fusible,Grounded,In/Out(LC): 300 MCM-#6, In/Out(SR): 300 MCM-#6,600 Vdc,NEMA 4,6,Non-fusible,Isolated return,Six-pole,DC photovoltaic applications,Single-throw
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCG6064UPM
UPC
786685625003
Product Length/Depth
39.18 in
Product Height
11.63 in
Product Width
30.18 in
Product Weight
65 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Type
DC disconnect/grounded system
Amperage Rating
200 A
Number of circuits
6
Ground
Grounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Non-fusible
Application
Solar
Main lug wire size
In/Out(LC): 300 kcmil-#6, In/Out(SR): 300 kcmil-#6
Number of poles
Six-pole
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Isolation
Isolated return
Switch type
Heavy duty safety DC photovoltaic systems Single-throw
Protection
Non-fusible
Feature: 200 A amperage rating and six-pole configuration. Business Impact: Enables isolation of multiple DC strings within a single enclosure, reducing wiring complexity and panel footprint. Application: Suitable for mid-size to larger solar PV installations where reliable, multi-branch DC isolation is required. Feature: Non-fusible protection with isolated return. Business Impact: Minimizes nuisance fuse changes while improving fault detection and arc-flash safety in DC circuits. Application: Critical for solar DC PV systems demanding robust, maintenance-friendly disconnects. Feature: In/Out conductor compatibility (LC): 300 kcmil-#6 and In/Out(SR): 300 kcmil-#6. Business Impact: Supports large feeder conductors with fewer terminations, reducing resistive losses and installation time. Application: Large-diameter DC feeders from combiner boxes to inverters in rooftop and ground-mounted arrays. Feature: NEMA 4 enclosure and painted galvanized steel. Business Impact: Delivers weather-resistant protection, lowering corrosion risk and enabling outdoor deployments with predictable uptime. Application: Outdoor solar installations exposed to dust, rain, and temperature swings. Feature: Six-pole, single-throw design. Business Impact: Simplifies operation and wiring schemes, shortening commissioning and service intervals. Application: Grid-tied and off-grid PV projects requiring straightforward, reliable DC isolation. Feature: Compliance and certifications (UL 98B, NEC 690 per UL 1741). Business Impact: Ensures regulatory alignment, reduces audit findings, and supports safe maintenance practices. Application: Commercial, industrial, and utility-scale PV projects with strict safety standards.
Get a Quick Quote for a Eaton DCG6064UPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCG6064UPM?
Enquire Now
FAQs
DCG6064UPM supports large feeder conductors with In/Out LC 300 kcmil to #6 and In/Out SR 300 kcmil to #6, enabling direct connection to common solar DC components like combiner boxes and inverters. Its six-pole, non-fusible design reduces the need for additional switching devices while maintaining safe isolation for 600 VDC systems.
Isolated return means the return path for the circuit is electrically separated, which minimizes parallel fault paths and helps isolate faults quickly. This reduces arc-flash risk and simplifies fault diagnosis during maintenance, making it particularly beneficial for utility-scale and commercial PV installations where reliability and safety are paramount.
Yes. The unit features a NEMA 4 enclosure with painted galvanized steel, designed to resist dust, rain, and temperature fluctuations. This makes it well-suited for outdoor solar deployments on rooftops or field installations where rugged protection and durability are required to maintain uptime.
The DCG6064UPM complies with UL 98B and NEC 690 per UL 1741, ensuring safety and regulatory alignment for DC PV applications. These certifications support safe installation, regular maintenance, and smoother inspections in commercial and industrial energy systems.
Eaton provides a one-year limited warranty from installation or 18 months from shipment, whichever occurs first. Routine maintenance typically involves inspection of terminations and enclosure integrity. Its robust enclosure, high amperage rating, and non-fusible design help reduce ongoing maintenance costs and downtime.
