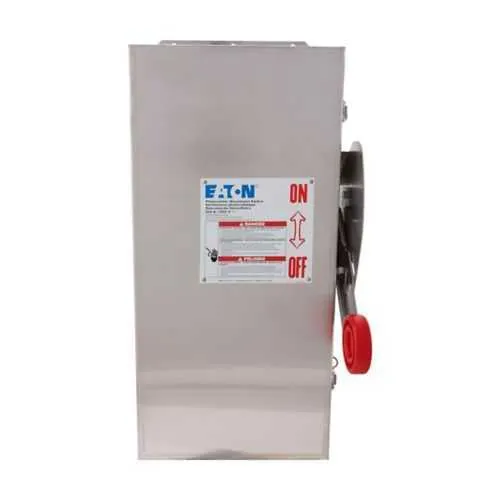

Eaton DCU1061UWM DC disconnect - NEMA 4X
Part Number: DCU1061UWM
Quick Summary
DCU1061UWM is a heavy-duty DC disconnect designed for ungrounded solar systems. When deploying outdoor PV arrays, reliability, corrosion resistance, and safe disconnection are critical, and this unit addresses those challenges with a robust 304 stainless steel enclosure and a NEMA 4X rating. It is certified for NEC 690 per UL 1741 and UL 98B, supporting code-compliant protection in harsh environments. This Eaton solution also delivers straightforward installation and wiring, reducing field downtime. With compact depth of 10.22 in, width of 8.76 in, and a weight of 21 lb, it fits tight enclosures without sacrificing reach. Practical, business-friendly features support solar DC protection and ungrounded DC distribution while helping projects stay on schedule and within budget.
Product Information
Extended Description
DCU1061UWM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,30A,NEMA 4X,Grade 304 stainless steel,Non-fusible,Ungrounded,#14-#2 AWG lug capacity, #14-1/0 AWG solid return,600 Vdc,1,DC Photovoltaic Applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU1061UWM
UPC
786685557069
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
8.76 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/ungrounded system
Amperage Rating
30A
Number of circuits
1
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4X
Protection
Non-fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-1/0 AWG solid return
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse configuration
Non-fusible
Switch type
Heavy duty
Protection
Non-fusible
Feature: 30A, 1 circuit, non-fusible, ungrouded DC disconnect. Business impact: Safe, predictable disconnection reduces arc-flash exposure and simplifies maintenance planning. Application: Solar PV arrays and ungrounded DC distribution where reliability is essential. Feature: NEMA 4X enclosure with 304 stainless steel construction. Business impact: Superior corrosion resistance and weatherproofing extend service life in outdoor installations, lowering replacement costs. Application: Outdoor solar farms, rooftop PV, and exposed equipment yards. Feature: Main lug wiring capacity of #14-#2 AWG and solid return up to #14-1/0 AWG. Business impact: Flexible, field-friendly terminations minimize commissioning time and wiring errors. Application: String combiner boxes and DC distribution trunks in PV systems. Feature: System voltage up to 600 VDC per pole; voltage rating 600 VDC. Business impact: Supports higher voltage PV configurations with safe, compliant protection, reducing the need for additional adapters. Application: Utility-grade and commercial solar installations. Feature: Certifications NEC 690 per UL 1741; UL 98B; enclosure and fuse configuration aligned with industry standards. Business impact: Regulatory compliance and safer operations translate to fewer audits and faster project approvals. Application: Code-compliant solar DC protection for harsh environments.
