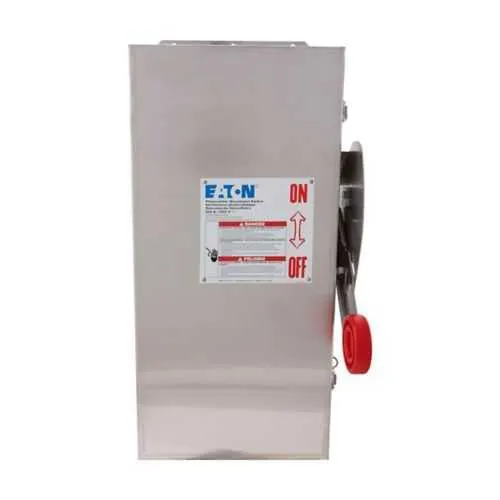

Eaton DCU1062FXM DC Disconnect - NEMA 4X Fusible
Part Number: DCU1062FXM
Quick Summary
The Eaton DCU1062FXM heavy duty DC disconnect provides safe, reliable isolation for solar PV systems and ungrounded DC circuits. Engineers often struggle with arc flash risk, weather exposure, and wiring complexity in outdoor DC installations. This product is UL 98B listed and NEC 690 compliant with a rugged NEMA 4X, 316 stainless steel enclosure to endure harsh environments. In practice, this translates to lower downtime, simplified maintenance, and safer PV DC isolation that meets demanding codes while aligning with solar project timelines. Its 60 A rating, 600 VDC capability, and flexible lug sizing support efficient field wiring and future expansion. Procurement benefits include familiar interfaces, fast installation, and reliable service life in industrial and utility-scale PV projects.
Product Information
Extended Description
DCU1062FXM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,60A,NEMA 4X,Grade 316 stainless steel,Fusible,Ungrounded,#14-#2 AWG lug capacity, #14-1/0 AWG solid return,600 Vdc,1,DC Photovoltaic Applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU1062FXM
UPC
786685557168
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
8.76 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/ungrounded system
Amperage Rating
60 A
Number of circuits
1
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4X
Protection
Fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-1/0 AWG solid return
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse configuration
Fusible
Switch type
Heavy duty
Protection
Fusible
Feature: 60 A amperage rating with a single circuit DC disconnect. Business Impact: Enables precise, code-compliant isolation of photovoltaic DC strings, reducing potential fault currents and simplifying maintenance. Application: Ideal for ungrounded DC systems in outdoor solar installations where compact, reliable isolation is required. Feature: Fusible protection with a dedicated DC disconnect/ungrounded configuration. Business Impact: Provides protective coordination for PV arrays and simplifies compliance with NEC 690 requirements. Application: Suitable for solar applications needing intentional fuse protection at the source. Feature: NEMA 4X enclosure made from 316 stainless steel. Business Impact: Delivers outstanding corrosion resistance and weatherproofing for outdoor and harsh environments, reducing enclosure maintenance and downtime. Application: Outdoor utility-scale PV sites or harsh industrial settings where enclosure integrity matters. Feature: 600 VDC maximum voltage per pole and overall system voltage rating. Business Impact: Supports large PV strings and higher voltage configurations while maintaining safe isolation. Application: Solar installations with elevated common-mode voltages and demanding safety limits. Feature: Main lug capacity up to #14-#2 AWG and solid return up to #14-1/0 AWG. Business Impact: Offers flexible, fast-wiring options and easier field installation without complex terminals. Application: Field configurations in new builds and retrofits where wiring versatility saves time. Feature: Product is part of Eaton’s DC Photovoltaic Applications series with UL 98B and NEC 690 conformance. Business Impact: Ensures regulatory alignment, traceable performance, and reliability across PV projects. Application: Suitable for commercial, industrial, and utility-scale solar deployments with demanding code requirements.
