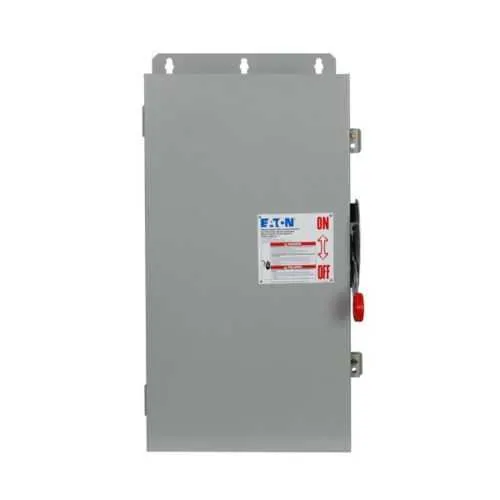

Eaton DCU2064FRM DC disconnect/ungrounded system - NEMA 3R
Part Number: DCU2064FRM
Quick Summary
Eaton heavy duty DC disconnect enables safe solar PV system isolation for 600 VDC networks. This robust enclosure provides reliable shutoff in demanding outdoor environments, reducing arc flash risk and enabling quick maintenance. Complex installations often struggle with weatherproof enclosures and aging protective devices; this unit addresses those pain points with rugged construction and integrated fusible protection. It carries NEC 690 per UL 1741 and UL 98B certifications, and its NEMA 3R rating suits outdoor solar installations demanding reliability. Designed for 200 A with two circuits, this disconnect supports wide conductor ranges and simplifies field wiring, delivering tangible time and cost savings. In practice, it reduces downtime and supports scalable solar projects from small arrays to commercial rooftops, while meeting 600 VDC system requirements.
Product Information
Extended Description
DCU2064FRM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,200A,NEMA 3R,Painted galvanized steel,Fusible,Ungrounded,LC: In 300 MCM-#6 out 300 MCM-#6. SR: in 300 MCM-#6 out 300 MCM-#6. EG: in #4-#14 AWG out 1/0-#14,600 Vdc,2
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU2064FRM
UPC
786685625157
Product Length/Depth
37.5 in
Product Height
11.5 in
Product Width
19 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Type
DC disconnect/ungrounded system
Amperage Rating
200 A
Number of circuits
2
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Fusible
Application
Solar
Main lug wire size
LC: In 300 kcmil-#6 out 300 kcmil-#6. SR: in 300 kcmil-#6 out 300 kcmil-#6. EG: in #4-#14 AWG out 1/0-#14
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
Heavy duty
Protection
Fusible
Feature → Business Impact → Application: The 200 A amperage rating with two circuits ensures reliable, code-compliant isolation for solar PV runs, reducing the risk of arc flash and enabling safer maintenance windows across multiple strings. This directly improves site safety and uptime, especially for midscale to large solar deployments that demand rapid shutoff during faults or servicing. Application: DCU2064FRM is well suited for solar installations needing a two-pole disconnect with fusible protection, delivering predictable performance under fault conditions and meeting field wiring expectations for LC/SR/EG main lugs. The business impact is lower outage duration, simpler compliance reporting, and reduced maintenance costs over the system life.
