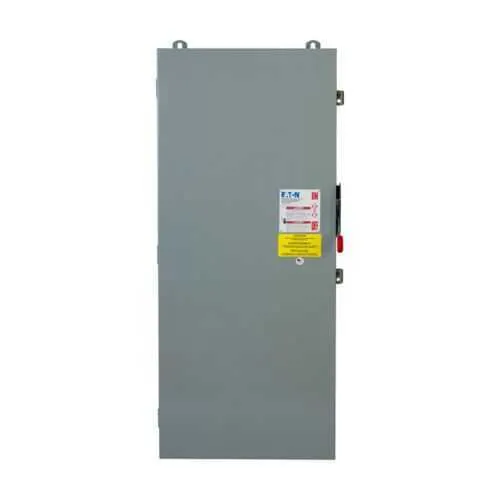

Eaton DCU2065FPM DC Disconnect for Solar - UL Listed
Part Number: DCU2065FPM
Quick Summary
Eaton DCU2065FPM is a heavy-duty DC disconnect for solar PV systems. This solution addresses the common challenge of safe, rapid isolation of ungrounded DC circuits during maintenance and fault conditions. The unit is UL Listed and designed with a NEMA 4 enclosure, featuring a painted galvanized steel body for outdoor reliability, while its fusible protection supports robust fault isolation. With a 400 A rating and 600 VDC per pole across two circuits, it delivers clear protection for PV arrays, minimizing risk to personnel and equipment. For procurement teams, this translates to predictable performance, simplified compliance, and a safer path to scalable solar installations with long-term value.
Product Information
Extended Description
DCU2065FPM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,400A,NEMA 4,Painted steel,Fusible,Ungrounded,600 Vdc,2,DC Photovoltaic Applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU2065FPM
UPC
786685865928
Product Length/Depth
12.42 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
118 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/ungrounded system
Amperage Rating
400 A
Number of circuits
2
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Fusible
Application
Solar
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
Heavy duty
Protection
Fusible
Feature → Business Impact → Application: The DCU2065FPM delivers a 400 A amperage rating and a 600 VDC per pole capability, enabling safe, rapid disconnection of high‑energy PV strings. This translates to improved personnel safety during electrical maintenance and reduced downtime during fault isolation, particularly in utility-scale or roof-mounted solar installations. Feature → Application: Two circuits within a single enclosure support modular PV layouts, facilitating easier expansion and system tuning without added disconnects, ideal for mid-size solar projects and retrofit scenarios. Feature → Business Impact → Application: Fusible protection in a NEMA 4, painted galvanized steel enclosure ensures outdoor durability and robust fault containment, reducing corrosion risk and maintenance costs in harsh environments. Feature → Application: Ungrounded system emphasis aligns with common PV configurations, lowering stray-ground fault concerns and simplifying code-compliant disconnect strategies. Feature → Business Impact → Application: The compact footprint (12.42 in depth, 24.12 in width, 57.47 in height) and 118 lb weight support easier installation, mounting versatility, and reduced installation labor in rooftop or equipment room installations. Feature → Application: UL Listing provides third-party assurance and faster регulatory approvals for solar projects while supporting ongoing compliance, performance predictability, and long-term ROI.
Get a Quick Quote for a Eaton DCU2065FPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCU2065FPM?
Enquire Now
FAQs
For rooftop or equipment-room installations, ensure a sturdy mounting surface, allow access for wiring and maintenance, and follow NEC/UL requirements. The unit's dimensions (12.42 in D x 24.12 in W x 57.47 in H) and 118 lb weight should guide mounting hardware selection and handling procedures.
DCU2065FPM is rated 400 A with 600 VDC per pole and uses fusible protection within a NEMA 4 painted galvanized enclosure, addressing high-energy PV string protection while maintaining safe operation in outdoor environments.
Yes. The unit is UL Listed and supports two circuits, enabling practical two-string DC protection within a single enclosure, simplifying wiring and maintenance for PV arrays.
UL Listed certification is provided, and the enclosure is NEMA 4 rated with painted galvanized steel construction, suitable for outdoor, wet, and dusty environments typically encountered in solar installations.
Eaton’s policy covers one year from installation or eighteen months from shipment, whichever occurs first. Regular inspection of fusible elements and enclosure seals helps maintain reliability and minimize unplanned downtime.
