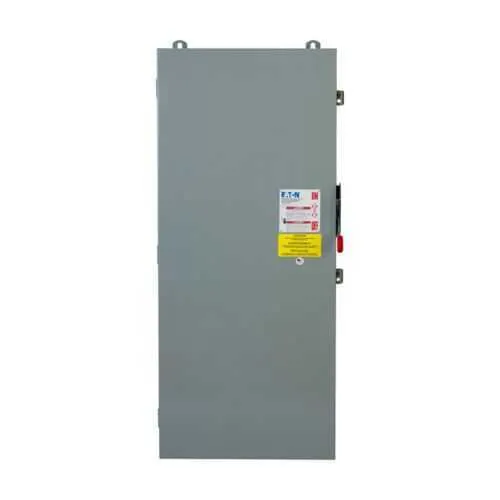

Eaton DCU2065FRM DC Disconnect - NEMA 3R, 600VDC Fusible
Part Number: DCU2065FRM
Quick Summary
Eaton DCU2065FRM DC disconnect is a heavy-duty DC disconnect built for photovoltaic solar installations. Engineers and maintenance teams struggle with undersized protection, ungrounded DC networks, and hard-to-access isolation points that drive safety risk and costly downtime. UL Listed protection, a NEMA 3R enclosure, and fusible switching provide code-compliant outdoor performance and reliable fault isolation. This design supports 600 VDC per pole across two circuits, enabling scalable PV or energy-storage configurations. By consolidating protection, mounting, and enclosure in one unit, it reduces wiring complexity, speeds installation, and improves system uptime for solar projects.
Product Information
Extended Description
DCU2065FRM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,400A,NEMA 3R,Painted galvanized steel,Fusible,Ungrounded,600 Vdc,2,DC Photovoltaic Applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU2065FRM
UPC
786685865904
Product Length/Depth
12.42 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
118 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/ungrounded system
Amperage Rating
400 A
Number of circuits
2
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Fusible
Application
Solar
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
Heavy duty
Protection
Fusible
Feature: 400 A amperage rating with two circuits. Business impact: Enables handling large PV arrays and minimizes the need for additional disconnect gear, cutting cabling and installation time. Application: Solar photovoltaic installations demanding robust, multi-string isolation. Feature: 600 VDC maximum voltage with ungrounded, fusible protection. Business impact: Provides rapid fault isolation and safer maintenance, reducing arc flash risk and downtime. Application: Outdoor solar farms and battery-integrated PV setups. Feature: NEMA 3R enclosure in painted galvanized steel. Business impact: Weatherproof protection for harsh outdoor environments, lowering corrosion risk and service calls. Application: Rooftop and ground-mounted systems. Feature: UL Listed certification and documented warranty (1 year from installation or 18 months from shipment). Business impact: Simplifies compliance and procurement, improving project timelines and service support. Application: Regulated industrial and commercial solar deployments. Feature: Dimensions 12.42 in depth, 57.47 in height, 24.12 in width, weight 118 lb. Business impact: Requires proper mounting planning and mechanical support, but provides a compact, serviceable footprint for DC isolation in a single enclosure. Application: Field installations with space planning.
Get a Quick Quote for a Eaton DCU2065FRM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCU2065FRM?
Enquire Now
FAQs
The DCU2065FRM is a heavy-duty DC disconnect designed for photovoltaic solar installations. It provides 400 A with two circuits, supports up to 600 VDC per pole, and uses a fusible, ungrounded configuration inside a NEMA 3R painted galvanized steel enclosure. It is UL Listed, helping to meet code requirements and simplify procurement for commercial and industrial PV projects.
Yes, the DCU2065FRM is UL Listed. It features a NEMA 3R enclosure suitable for outdoor environments, and its fusible protection aligns with common electrical safety standards for solar DC protection. These certifications aid compliance with safety codes, permitting processes, and ongoing maintenance in solar installations.
The unit weighs 118 lb and measures 12.42 in (depth) by 57.47 in (height) by 24.12 in (width), so plan for sturdy mounting hardware and adequate space. Install on a reinforced surface with appropriate enclosure clearance, and ensure wiring access is permitted for two 400 A circuits at up to 600 VDC per pole.
Yes. The DCU2065FRM supports 600 VDC per pole and two circuits, making it suitable for solar PV arrays and related energy storage configurations. Its fusible protection and NEMA 3R enclosure support outdoor installations, ease of maintenance, and straightforward integration with existing PV protection schemes.
The unit is covered under Eaton’s warranty policy 25-000, offering one year from the date of installation or eighteen months from shipment, whichever occurs first. This warranty, combined with UL Listed certification and documented datasheets, provides assurance for maintenance planning, spare parts, and service support in solar projects.
