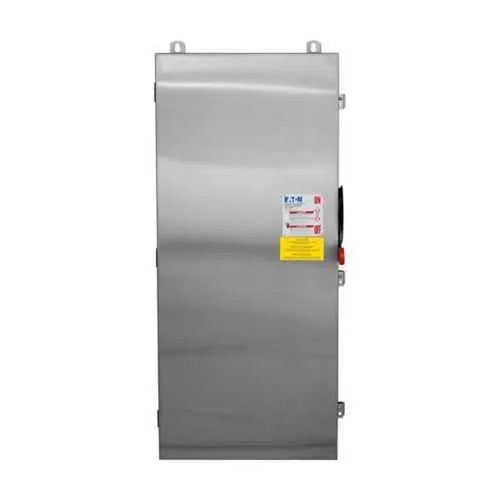

Eaton DCU2065UXM DC Disconnect Heavy Duty - NEMA 4X
Part Number: DCU2065UXM
Quick Summary
DC disconnect solutions like the Eaton DCU2065UXM reliably isolate solar DC circuits in PV installations. Engineers often struggle with safe isolation in ungrounded, non-fusible DC systems exposed to harsh environments, where corrosion and weather can threaten reliability. This unit is UL Listed and built in a NEMA 4X, 316 stainless steel enclosure to withstand outdoor and dirty conditions. For businesses, that means consistent protection, reduced downtime, and easier compliance in solar farm or rooftop projects. By pairing rugged construction with a clear 600 VDC rating and 400 A capacity, it supports scalable solar protections while aligning with procurement needs and lifecycle cost goals.
Product Information
Extended Description
DCU2065UXM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,400A,NEMA 4X,Grade 316 stainless steel,Non-fusible,Ungrounded,600 Vdc,2,DC Photovoltaic Applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU2065UXM
UPC
786685865959
Product Length/Depth
12.42 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
115 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/ungrounded system
Amperage Rating
400 A
Number of circuits
2
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4X
Protection
Non-fusible
Application
Solar
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse configuration
Non-fusible
Switch type
Heavy duty
Protection
Non-fusible
Feature → Business Impact → Application: The DCU2065UXM delivers a 400 A amperage rating across two circuits, enabling robust DC isolation for mid-scale solar installations while reducing the risk of overcurrent events in PV arrays. This translates to improved electrical protection, fewer unplanned outages, and lower maintenance costs in rooftop and ground-mounted projects. Application: Solar PV systems requiring reliable ungrounded DC disconnects with durable enclosure. Feature → Business Impact → Application: NEMA 4X enclosure with 316 stainless steel construction provides corrosion resistance and weatherproof integrity in outdoor environments, extending service life and minimizing enclosure maintenance in coastal or industrial settings. Application: Outdoor solar installations exposed to dust, water, and temperature fluctuations. Feature → Business Impact → Application: Non-fusible, heavy-duty switch design reduces replacement complexity and simplifies field servicing, supporting faster installation, lower labor costs, and predictable ROI in utility-scale and commercial solar deployments. Feature → Business Impact → Application: 600 VDC system voltage and two-pole configuration align with standard PV DC circuits, enabling straightforward integration with existing protection schemes and minimizing design changes during system upgrades. Feature → Business Impact → Application: UL Listed certification and documented specs streamline procurement, compliance reporting, and QA reviews, helping engineers meet regulatory requirements without compromising on performance. Feature → Business Impact → Application: 12.42 in depth, 24.12 in width, and substantial height ensure ample clearance for wiring management and future expansion, reducing rework and enabling cleaner, safer installations in constrained electrical rooms.
Get a Quick Quote for a Eaton DCU2065UXM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCU2065UXM?
Enquire Now
FAQs
Install the Eaton DCU2065UXM by mounting the enclosure in a clean, accessible location, connect the two 600 VDC poles, ensure the ungrounded configuration, and verify UL Listed compliance. Follow the datasheet for wiring topology, torque specifications, and required clearances. This unit supports 400 A and two circuits, using appropriate conductors and protective accessories.
Key specs include 400 A amperage rating, two circuits, 600 VDC maximum voltage per pole, ungrounded system configuration, NEMA 4X enclosure, 316 stainless steel construction, and non-fusible protection. The product is UL Listed and designed for solar PV applications, ensuring safe isolation and reliable operation in harsh environments.
Yes. The enclosure is NEMA 4X rated and crafted from 316 stainless steel, delivering excellent corrosion resistance and weatherproof performance. This makes it well-suited for outdoor solar installations, coastal sites, and other harsh environments where enclosure integrity and safety are critical.
The unit is UL Listed and features a NEMA 4X rated enclosure with 316 stainless steel construction. It supports 600 VDC, two circuits, and a non-fusible configuration for safe operation in solar applications. These certifications help simplify regulatory paperwork and ensure industry-standard protection levels.
The rugged, non-fusible design paired with a durable 316 stainless enclosure minimizes corrosion-related downtime, while UL Listing and robust protection simplify compliance audits. With a 115 lb weight and generous enclosure dimensions, installation is straightforward, potentially reducing field service time and extending service life in challenging solar environments.
