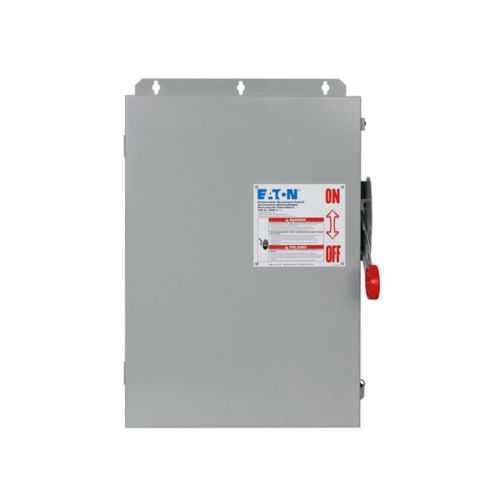

Eaton DCU2102UXM DC Disconnect - NEMA 4X, 1000 VDC
Part Number: DCU2102UXM
Quick Summary
DCU2102UXM is a heavy-duty DC disconnect built to safely isolate solar PV circuits. This design addresses corrosion concerns, outdoor exposure, and reliable ungrounded isolation, reducing maintenance and downtime. It carries NEC 690 per UL 1741 and UL 98B certifications and is rated for 1000 VDC in a NEMA 4X enclosure. For solar developers and panel builders, the rugged stainless-steel enclosure and 60 A capacity translate into safer installations, simpler wiring, and long-term cost savings. This product also supports #14-#2 AWG lug sizing for straightforward field assembly. Industry-standard dimensions help with retrofit projects.
Product Information
Extended Description
DCU2102UXM Eaton: Eaton Heavy duty DC disconnect, 60 A, NEMA 4X, Grade 316 stainless steel, Non-fusible, Ungrounded, #14-#2 AWG lug capacity, #14-#2 AWG solid return, 2, DC photovoltaic applications, Rating:1000 Vdc
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU2102UXM
UPC
786685558127
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
37 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/ungrounded system
Amperage Rating
60 A
Number of circuits
2
Ground
Ungrounded
Protection
Non-fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-#2 AWG solid return
System voltage
1000 VDC
Voltage rating
1000 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse configuration
Non-fusible
Switch type
Heavy duty
Protection
Non-fusible
Feature: 60 A, 2-circuit, non-fusible DC disconnect. Business impact: supports typical solar PV strings while minimizing fuse-related maintenance and stocking, improving installation scalability. Application: suitable for two-string configurations in outdoor solar installations. Feature: Ungrounded system with non-fusible protection. Business impact: simplifies insulation coordination and reduces fault pathways, enhancing safety and serviceability in utility-scale and commercial PV sites. Application: critical for ungrounded DC protection in harsh environments. Feature: NEMA 4X enclosure and 316 stainless steel construction. Business impact: superior corrosion resistance and weatherproofing, lowering lifetime maintenance costs in coastal or industrial sites. Application: outdoor and wash-down-ready protection for solar equipment. Feature: Lug capacity for #14-#2 AWG and solid return wiring. Business impact: enables straightforward field wiring, faster assemblies, and compatibility with common PV conductors. Application: DC connections for two circuits with reliable electrical integrity. Feature: 1000 VDC system rating and UL 1741/UL 98B certifications. Business impact: ensures compliance with high-voltage PV standards and safe operation under demanding conditions. Application: critical for compliant solar power systems. Feature: Dimensions and weight (10.22 in x 19.08 in x 12.88 in, 37 lb). Business impact: predictable fitment in existing enclosures and streamlined retrofit planning. Application: mid-size industrial installations seeking robust protection.
