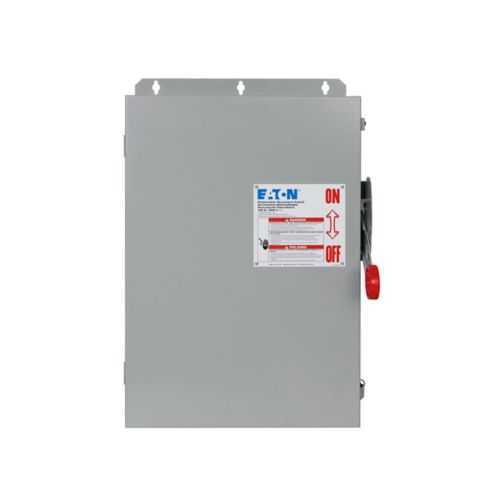

Eaton DCU2105UXM DC Disconnect - NEMA 4X
Part Number: DCU2105UXM
Quick Summary
The Eaton DCU2105UXM DC disconnect provides rugged, high-current isolation for solar PV systems. It safely disconnects 400 A at up to 1000 VDC in outdoor and demanding environments. Engineers often face challenges with weather exposure, corrosion, and reliable enclosure sealing; this unit’s 316 stainless steel construction and NEMA 4X enclosure address those concerns. UL Listed certification adds critical regulatory confidence for electrical installations in industrial settings. For procurement and operations teams, the combination of robust protection, straightforward integration with DC PV arrays, and a one-year warranty translates to lower lifecycle risk, reduced maintenance, and faster commissioning across diverse solar projects.
Product Information
Extended Description
DCU2105UXM Eaton: Eaton Heavy duty DC disconnect, DCU, 400 A, DC photovoltaic systems, Grade 316 stainless steel, Non-fusible, Max:1000 Vdc, NEMA 4X, 2, Non-fusible
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU2105UXM
UPC
786685866208
Product Length/Depth
12.43 in
Product Height
57.47 in
Product Width
24.12 in
Product Weight
128 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/ungrounded system
Amperage Rating
400 A
Number of circuits
2
Maximum voltage
1000 VDC
NEMA rating
NEMA 4X
Protection
Non-fusible
Application
Solar
System voltage
1000 VDC
Voltage rating
1000 VDC
Series
DC photovoltaic applications
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse configuration
Non-fusible
Switch type
Heavy duty
Protection
Non-fusible
