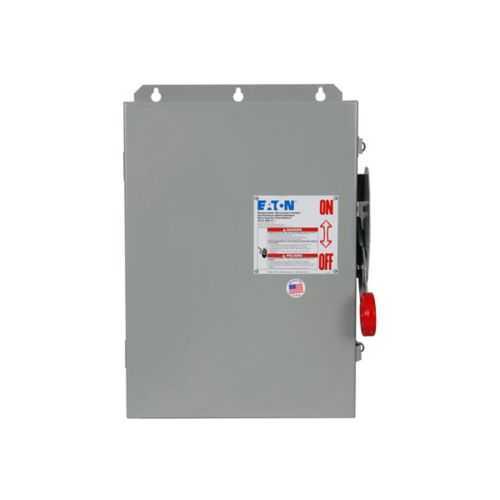

Eaton DCU3061FRM DC Disconnect - NEMA 3R Heavy Duty Fusible
Part Number: DCU3061FRM
Quick Summary
The Eaton DCU3061FRM is a heavy-duty DC disconnect designed for ungrounded solar PV systems. Installers frequently struggle with matching lug configurations, outdoor exposure, and code-compliance when selecting a DC disconnect. This unit is built to NEC 690 per UL 1741 and UL 98B standards and ships in a NEMA 3R painted galvanized enclosure. For engineers and procurement teams, the DCU3061FRM delivers rugged reliability, easy field wiring, and long-term operating savings in rooftop and utility-scale PV installations. Its 30A per circuit rating across three circuits provides scalable protection as system capacity grows, while its fusible protection supports safer shutdown sequences.
Product Information
Extended Description
DCU3061FRM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,30A,NEMA 3R,Painted galvanized steel,Fusible,Ungrounded,#14-#2 AWG lug capacity, #14-1/0 AWG solid return,600 Vdc,3,DC Photovoltaic Applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU3061FRM
UPC
786685557458
Product Length/Depth
25.5 in
Product Height
9 in
Product Width
13.25 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/ungrounded system
Amperage Rating
30A
Number of circuits
3
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-1/0 AWG solid return
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
Heavy duty
Protection
Fusible
Three circuits rated at 30A each, with a 600 VDC maximum, deliver safe, scalable isolation for PV strings, reducing fault propagation and arc-flash risk while helping meet NEC/UL requirements in outdoor solar arrays. The NEMA 3R enclosure, crafted from painted galvanized steel, delivers outdoor durability against rain, hail, and temperature cycling, minimizing corrosion and maintenance costs in rooftop and ground-mounted installations. Lug compatibility includes main lug sizes of #14-#2 AWG and solid returns up to #14-1/0 AWG, streamlining wiring and reducing field modifications during installation and future upgrades. The product is part of Eaton’s DC Photovoltaic Applications series, aligning with industry standards for reliability, serviceability, and global solar deployments. A one-year warranty (or 18 months from shipment) provides peace of mind and supports consistent uptime in mission-critical PV controls. Dimensions of 25.5 in length, 13.25 in width, and 9 in height enable practical placement in standard electrical spaces while accommodating three separate circuits.
Get a Quick Quote for a Eaton DCU3061FRM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCU3061FRM?
Enquire Now
FAQs
The DCU3061FRM is designed for ungrounded solar PV systems with three independent circuits, each rated at 30A, and it accepts lug configurations of #14-#2 AWG per circuit with solid returns up to #14-1/0 AWG. For wiring, plan for 600 VDC per pole, follow NEC guidelines, and use the fusible protection model to ensure rapid isolation during maintenance or fault conditions. In rooftop or utility-scale PV installations, this unit simplifies output string isolation while maintaining compliance with UL 690 and UL 1741 requirements.
The DCU3061FRM combines three 30A circuits with a 600 VDC rating and fusible protection, specifically addressing solar PV needs for safe isolation and rapid shutdown procedures. Its NEMA 3R enclosure provides weather resistance for outdoor deployments, and its compatibility with common PV wiring sizes reduces field wiring complexity. This makes it well-suited for rooftop arrays and utility-scale solar installations seeking reliable isolation and long-term performance.
This unit adheres to NEC 690 requirements as specified by UL 1741, with UL 98B protection for disconnect enclosures. These certifications ensure safe operation in outdoor solar installations and align with industry safety expectations. Customers can rely on compliance for code-based installations, commissioning, and ongoing maintenance of PV systems.
Dimensions are 25.5 inches in length, 13.25 inches in width, and 9 inches in height, with a weight of approximately 40 pounds. Its NEMA 3R enclosure supports outdoor mounting on standard electrical chases or walls, and the unit’s form factor allows for straightforward installation alongside other DC protection devices. Plan for ventilation and clearance to ensure access for wiring and maintenance.
Beyond basic safety and compliance, the DCU3061FRM offers predictable maintenance costs due to its rugged galvanized steel enclosure and straightforward wiring. The part’s three-circuit configuration supports scalable PV layouts, reducing the need for future replacements during capacity expansion. The warranty (one year from installation or 18 months from shipment) provides protection against manufacturing defects, contributing to a favorable return on investment for rooftop and utility-scale PV deployments.
