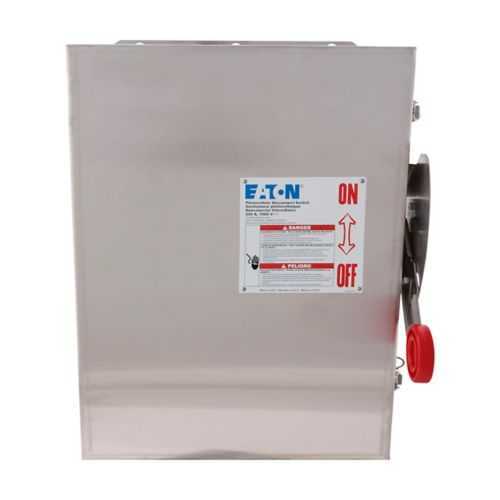

Eaton DCU3061UWM Heavy Duty DC Disconnect - NEMA 4X 600V
Part Number: DCU3061UWM
Quick Summary
The Eaton DCU3061UWM heavy duty DC disconnect safely isolates 600 VDC solar circuits for robust PV installations in commercial and industrial sites. With harsh environments and demanding uptime requirements, field failures, corrosion, and ingress-related faults are common pain points that disrupt production. UL 98B and NEC 690 per UL 1741 compliance, plus a NEMA 4X stainless enclosure, provide outdoor reliability against water, dust, and corrosion. This configuration delivers reduced maintenance, safer DC switching, faster installation, and easier servicing for field technicians in solar, telecom, and industrial power applications. Ideal for solar PV installations, it reduces maintenance costs while boosting uptime, thanks to non-fusible protection, rugged 304 stainless steel construction, and proven Eaton engineering.
Product Information
Extended Description
DCU3061UWM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,30A,NEMA 4X,Grade 304 stainless steel,Non-fusible,Ungrounded,#14-#2 AWG lug capacity, #14-1/0 AWG solid return,600 Vdc,3,DC Photovoltaic Applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU3061UWM
UPC
786685557540
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
37 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/ungrounded system
Amperage Rating
30A
Number of circuits
3
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4X
Protection
Non-fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-1/0 AWG solid return
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse configuration
Non-fusible
Switch type
Heavy duty
Protection
Non-fusible
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DCU3061UWM
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 30A amperage rating with 3 circuits in a non-fusible, ungrounded DC disconnect. Business impact: Enables modular, scalable DC switching for small to mid-size solar arrays without adding fuse-related maintenance, reducing downtime and labor costs. Application: Solar PV system cabinets and enclosures where reliable isolation is required. Feature: NEMA 4X enclosure made from 304 stainless steel. Business impact: Delivers superior corrosion resistance and weatherproofing, extending service life in outdoor or washdown environments. Application: Outdoor PV installations, industrial facilities, and harsh environments where ingress protection matters. Feature: 600 VDC maximum voltage per pole with robust lug capacity (#14-#2 AWG) and solid return up to #14-1/0 AWG. Business impact: Simplifies field wiring, lowers termination errors, and accelerates installation, improving project timelines. Application: 600 VDC solar or similar DC power distribution networks. Feature: UL 98B and NEC 690 per UL 1741 certifications. Business impact: Ensures regulatory compliance and safety, reducing risk of non-conformance in utility-grade solar projects. Application: Commercial and industrial solar deployments requiring recognized standards. Feature: Main lug wiring versatility and clear labeling in a heavy-duty enclosure. Business impact: Facilitates fast servicing and straightforward retrofits, lowering maintenance windows. Application: Upgrades to existing DC disconnect layouts and new PV builds. Feature: Warranty coverage under Eaton policy with a one-year from installation or eighteen months from shipment. Business impact: Provides reassurance for procurement and facilities teams, improving total cost of ownership. Application: Long-term asset planning and service contracts. In practice, customers benefit from durable construction, straightforward installation, and predictable maintenance cycles across solar, telecom, and industrial power applications.
