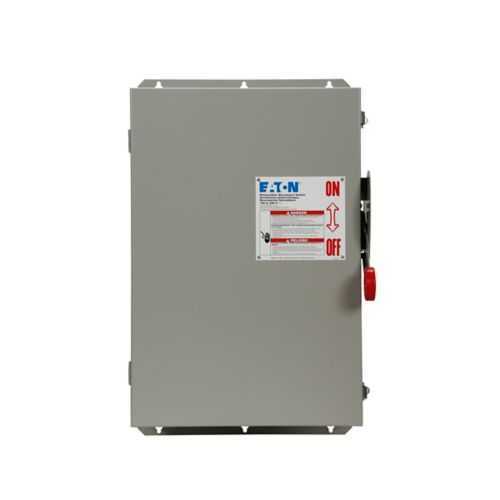

Eaton DCU3062FRM Heavy Duty DC Disconnect - NEMA 3R
Part Number: DCU3062FRM
Quick Summary
DCU3062FRM is a heavy-duty DC disconnect designed for ungrounded PV systems. It isolates solar arrays safely, minimizing arc flash risk and enabling rapid maintenance. Certified for NEC 690 per UL 1741 and UL 98B, with a rugged NEMA 3R enclosure, it withstands outdoor use. This solution delivers reliable, code-compliant protection for solar projects while reducing installation time and overall lifecycle costs. By combining robust protection with straightforward wiring and mounting, it supports efficient, scalable PV deployments and aligns with broader safety and reliability goals.
Product Information
Extended Description
DCU3062FRM Eaton: Eaton heavy duty DC disconnect,For Ungrounded PV Systems,DC disconnect/ungrounded system,60A,NEMA 3R,Painted galvanized steel,Fusible,Ungrounded,#14-#2 AWG lug capacity, #14-1/0 AWG solid return,600 Vdc,3,DC Photovoltaic Applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU3062FRM
UPC
786685557465
Product Length/Depth
25.5 in
Product Height
9 in
Product Width
13.25 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
NEC 690 per UL 1741 UL 98B
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Special features
For Ungrounded PV Systems
Type
DC disconnect/ungrounded system
Amperage Rating
60 A
Number of circuits
3
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-1/0 AWG solid return
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible
Switch type
Heavy duty
Protection
Fusible
