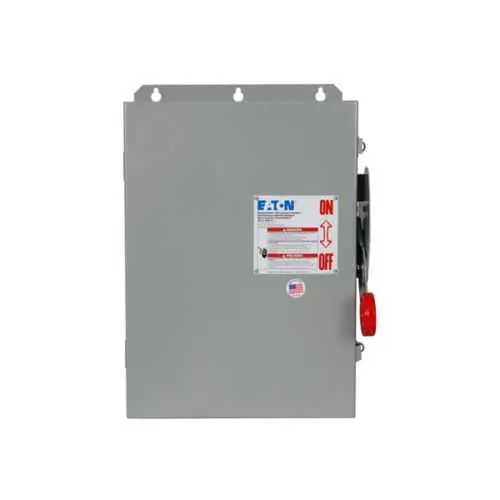

Eaton DCU3062UPM DC Disconnect - NEMA 4, 600 VDC
Part Number: DCU3062UPM
Quick Summary
DC disconnects provide safe, rapid isolation for solar PV DC circuits, enabling safe maintenance and compliant shutdown of PV arrays. A common challenge is finding a rugged, weather-resistant enclosure that fits standard wiring while meeting electrical codes in outdoor environments. This Eaton DCU3062UPM unit combines a heavy-duty 60 A, 3-circuit disconnect with a NEMA 4 painted galvanized steel enclosure, UL 98B and NEC 690 per UL 1741 compliant. It supports ungrounded configurations and non-fusible protection, making field service straightforward. By delivering robust construction, documented wiring options, and a clear warranty, the design reduces commissioning risk and accelerates project timelines. For solar projects, it translates to predictable performance and lower lifecycle costs compared with multi-part assemblies.
Product Information
Extended Description
DCU3062UPM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,60A,NEMA 4,Painted steel,Non-fusible,Ungrounded,#14-#2 AWG lug capacity, #14-1/0 AWG solid return,600 Vdc,3,DC Photovoltaic Applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU3062UPM
UPC
786685557496
Product Length/Depth
25.5 in
Product Height
9 in
Product Width
13.25 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/ungrounded system
Amperage Rating
60 A
Number of circuits
3
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4
Protection
Non-fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-1/0 AWG solid return
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 4
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Switch type
Heavy duty
Protection
Non-fusible
Feature: 60 A, 3 circuits, 600 VDC per pole; Business Impact: Enables safe, scalable isolation for typical PV strings while keeping installation compact; Application: Solar PV arrays and small-scale installations. Feature: Ungrounded, non-fusible protection; Business Impact: Simplifies maintenance workflows and reduces nuisance fuse operations; Application: Outdoor DC isolation where upstream protection remains in the array. Feature: NEMA 4 painted galvanized steel enclosure; Business Impact: Weather and dust resistance improves reliability in harsh environments; Application: Outdoor rooftops and ground-mounted PV sites. Feature: Main lug size and return capacity (#14-#2 AWG lug, #14-1/0 AWG solid return); Business Impact: Broad wiring compatibility minimizes field rework; Application: PV combiner boxes and disconnect integration. Feature: Dimensions and weight (25.5 in x 13.25 in x 9 in; 40 lb); Business Impact: Predictable footprint simplifies enclosure planning; Application: Site planning and retrofit projects. Feature: Certification and warranty (UL 98B, NEC 690 per UL 1741; 1 year or 18 months); Business Impact: Ensures regulatory compliance and post-sale support; Application: Procurement for code-compliant solar DC systems.
Get a Quick Quote for a Eaton DCU3062UPM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCU3062UPM?
Enquire Now
FAQs
The DCU3062UPM supports 3 ungrounded circuits with a 60 A rating and a 600 VDC per pole limit. It provides main lug capacities for #14-#2 AWG wiring and a solid return up to #14-1/0 AWG, enabling straightforward integration with common PV conductors while maintaining code-compliant disconnect isolation.
With a 60 A current rating and 600 VDC per pole, the DCU3062UPM suits PV strings and subarrays within these electrical limits. Designers must ensure that the sum of concurrent currents does not exceed 60 A per switch position and that the system voltage does not surpass 600 VDC, aligning with NEC requirements for DC equipment.
Yes. Its NEMA 4 enclosure, painted galvanized steel construction, and outdoor-rated design make it well-suited for rooftop and ground-mounted PV installations. The unit is built to withstand weather exposure while providing reliable isolation, meeting UL 98B and NEC 690 per UL 1741 references for solar applications.
The DCU3062UPM adheres to UL 98B and NEC 690 per UL 1741, supporting safe, code-compliant operation in PV systems. The NEMA 4 enclosure further confirms suitability for outdoor environments, reducing compliance risk during procurement and installation.
As a non-fusible disconnect, routine maintenance focuses on mechanical and enclosure integrity rather than fuse replacement. The unit carries a one-year warranty (or 18 months from shipment), and its robust steel enclosure, wiring flexibility, and standardized dimensions help minimize on-site modifications, contributing to lower lifecycle costs and faster ROI for solar projects.
