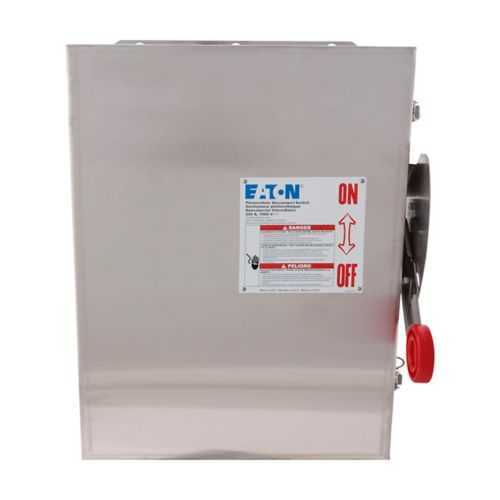

Eaton DCU3062UXM DC Disconnect - NEMA 4X 316 SS
Part Number: DCU3062UXM
Quick Summary
Eaton DCU3062UXM DC disconnect is a heavy-duty DC isolation switch designed for solar photovoltaic systems. Maintenance teams often struggle with safe, reliable isolation in outdoor or harsh environments, where corrosion and weather can compromise performance. This unit meets critical protection benchmarks with UL 98B and NEC 690 per UL 1741 compliance, and it uses a NEMA 4X enclosure in Grade 316 stainless steel to resist washdown and corrosion. Beyond safety, its 60 A, 3-circuit design and 600 VDC rating support scalable PV applications, delivering dependable isolation while reducing downtime and easing compliance reporting for electrical protection and solar installation projects.
Product Information
Extended Description
DCU3062UXM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,60A,NEMA 4X,Grade 316 stainless steel,Non-fusible,Ungrounded,#14-#2 AWG lug capacity, #14-1/0 AWG solid return,600 Vdc,3,DC Photovoltaic Applications
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU3062UXM
UPC
786685557618
Product Length/Depth
10.22 in
Product Height
19.08 in
Product Width
12.88 in
Product Weight
37 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Catalog Notes
Not all configurations for ampere rating and number of circuits are available. All circuit configurations can be found in the product dimension tables.
Type
DC disconnect/ungrounded system
Amperage Rating
60 A
Number of circuits
3
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 4X
Protection
Non-fusible
Application
Solar
Main lug wire size
#14-#2 AWG lug capacity, #14-1/0 AWG solid return
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse configuration
Non-fusible
Switch type
Heavy duty
Protection
Non-fusible
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DCU3062UXM
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 60 A current rating with 3 circuits and non-fusible, ungrouned operation. Business Impact: Provides reliable DC isolation for solar strings while simplifying maintenance procedures and reducing fuse-related waste. Application: Solar photovoltaic installations requiring robust, non-fusible protection. Feature: NEMA 4X enclosure in Grade 316 stainless steel. Business Impact: Superior outdoor durability and washdown resistance translate to lower lifecycle costs and less corrosion-related downtime. Application: Outdoor solar farms and rooftop PV systems subjected to weather exposure. Feature: Generous lug capacity (#14-#2 AWG) with #14-1/0 AWG solid return. Business Impact: Flexible wiring options cut installation time and support diverse PV string configurations. Application: Field-wiring scenarios where conductor variety is common. Feature: System voltage rated at 600 VDC per pole with a 3-pole design. Business Impact: Safe handling of high-voltage DC circuits, enabling scalable PV architectures. Application: DC PV arrays and other ungrounded DC networks. Feature: DC Photovoltaic Applications series designation and UL/NEC alignment. Business Impact: Streamlines engineering documentation and compliance workflows for solar projects. Application: Solar energy projects targeting regulated environments. All features collectively support installation efficiency, long-term reliability, and regulatory compliance across industrial DC protection applications.
Get a Quick Quote for a Eaton DCU3062UXM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCU3062UXM?
Enquire Now
FAQs
The DCU3062UXM is rated for 60 A with three circuits, non-fusible and ungrounded, making it suitable for solar PV strings and similar DC installations. It supports #14-#2 AWG lugs and #14-1/0 AWG solid returns, enabling flexible wiring configurations and straightforward field wiring without oversized conductors. This compatibility helps engineers design scalable solar systems with reliable isolation at the point of interface.
It meets UL 98B and NEC 690 per UL 1741 requirements, ensuring recognized safety and performance in solar DC applications. The enclosure is NEMA 4X and the enclosure material is grade 316 stainless steel, providing outdoor durability and corrosion resistance essential for rooftop and ground-mounted installations.
Yes. With a 60 A, 3-circuit configuration, 600 VDC rating per pole, ungrounded design, and a rugged 316 stainless steel NEMA 4X enclosure, it is well-suited for both rooftop and utility-scale PV applications. Its non-fusible design simplifies protection schemes and allows easy integration into existing DC protection architectures.
Plan for a 10.22 in length, 12.88 in width, and 19.08 in height footprint with an approximate 37 lb weight to ensure proper mounting clearance. Ensure appropriate LOTO/lockout procedures and verify conductor sizes (#14-#2 AWG lug capacity, #14-1/0 AWG solid return). Confirm 600 VDC per pole rating in your PV string configuration and provide weatherproof routing for outdoor installation.
The product is covered by Eaton’s standard warranty policy. The documented terms specify one year from installation or eighteen months from shipment, whichever occurs first. For additional guidance, consult the Selling Policy 25-000 and applicable Eaton resources to understand service, replacement parts, and distributor support.
