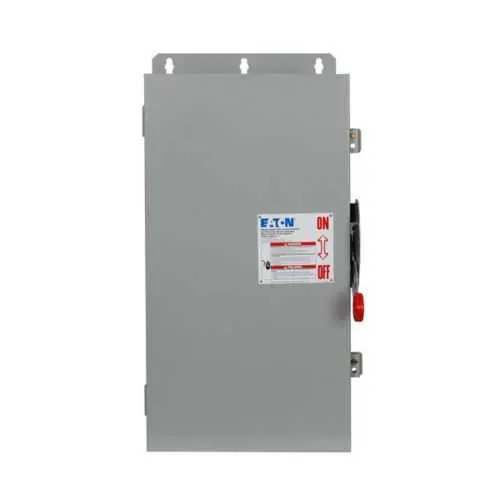

Eaton DCU3064URM DC disconnect/ungrounded system - UL 98B
Part Number: DCU3064URM
Quick Summary
DCU3064URM DC disconnect is a heavy-duty ungrounded DC disconnect designed for solar applications. This solution helps ensure safe, code-compliant isolation in 600 VDC PV systems, reducing arc flash risks and simplifying maintenance. The unit carries UL 98B and NEC 690 per UL 1741 certifications and is housed in a NEMA 3R painted galvanized steel enclosure to withstand outdoor environments. For engineers and procurement teams, the robust 200 A rating, three circuits, and non-fusible design translate to reliable protection with lower total cost of ownership. By combining durable construction with standard wire configurations (LC, SR, EG), it streamlines installation, compliance, and field servicing, delivering predictable performance across diverse solar sites.
Product Information
Extended Description
DCU3064URM Eaton: Eaton heavy duty DC disconnect,DC disconnect/ungrounded system,200A,NEMA 3R,Painted galvanized steel,Non-fusible,Ungrounded,LC: In 300 MCM-#6 out 300 MCM-#6. SR: in 300 MCM-#6 out 300 MCM-#6. EG: in #4-#14 AWG out 1/0-#14,600 Vdc,3
Product Name
Eaton heavy duty DC disconnect
Catalog Number
DCU3064URM
UPC
786685625225
Product Length/Depth
35.38 in
Product Height
11.63 in
Product Width
24.46 in
Product Weight
70 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 98B NEC 690 per UL 1741
Type
DC disconnect/ungrounded system
Amperage Rating
200 A
Number of circuits
3
Ground
Ungrounded
Maximum voltage
600 VDC
NEMA rating
NEMA 3R
Protection
Non-fusible
Application
Solar
Main lug wire size
LC: In 300 kcmil-#6 out 300 kcmil-#6. SR: in 300 kcmil-#6 out 300 kcmil-#6. EG: in #4-#14 AWG out 1/0-#14
System voltage
600 VDC per pole
Voltage rating
600 VDC
Series
DC Photovoltaic Applications
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Switch type
Heavy duty
Protection
Non-fusible
The first feature is a heavy-duty DC disconnect designed for solar PV isolation, which delivers clear, reliable outage capability and reduces risk during maintenance; the business impact is safer operations, faster servicing, and improved uptime for 600 VDC solar circuits in outdoor environments. This unit is rated at 200 A across three circuits and is non-fusible with an ungrounded configuration, meaning system designers can meet NEC requirements while simplifying fault isolation and minimizing arc energy in ungrounded dg configurations. The NEMA 3R enclosure, painted galvanized steel, provides weather-resistant protection for outdoor installations, improving service life and reducing corrosion-related maintenance costs in rooftop or exposed locations. Wire compatibility is a core strength, supporting LC, SR, and EG main lug configurations with sizes from 300 kcmil-#6 to #14 AWG, enabling flexible, field-ready terminations for diverse PV strings. Certifications such as UL 98B and NEC 690 per UL 1741 reinforce compliance, while the Eaton warranty (25-000) offers added assurance and support. This combination of rugged construction and clear electrical ratings translates into measurable efficiency, lower ownership costs, and predictable performance across solar projects.
Get a Quick Quote for a Eaton DCU3064URM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DCU3064URM?
Enquire Now
FAQs
DCU3064URM is designed for straightforward installation in outdoor solar DC buses. It supports three circuits with LC, SR, and EG conductor terminations and accommodates main lugs from 300 kcmil to 1/0 AWG conductors as described in the product specs. Field mounting and wiring follow standard industry practices for NEMA 3R enclosures, enabling reliable protection in rooftop or ground-mounted PV installations.
Key ratings include 200 A amperage, 3 circuits, and a maximum voltage of 600 VDC, with ungrounded, non-fusible protection. The device is intended for 600 VDC solar applications and meets UL 98B and NEC 690 per UL 1741 requirements, ensuring safe, compliant operation in PV systems.
Yes. With a 200 A rating and three circuit paths, the DCU3064URM is well-suited for commercial solar PV systems where reliable DC isolation, ease of maintenance, and outdoor durability are priorities. Its NEMA 3R enclosure and UL/NEC certifications support installation across varied site conditions and code jurisdictions.
DCU3064URM carries UL 98B and NEC 690 per UL 1741 certifications, ensuring compliance with recognized electrical safety and solar-specific installation standards. The NEMA 3R enclosure further supports outdoor reliability, while the non-fusible, ungrounded design aligns with common PV protection schemes.
The non-fusible, ungrounded design reduces fuse maintenance and fault-finding steps, while the robust 70 lb enclosure and weather-resistant construction minimize outdoor service intervals. Combined with standard wiring compatibility and Eaton support, you can expect lower maintenance costs, higher uptime, and faster service response in solar installations.
