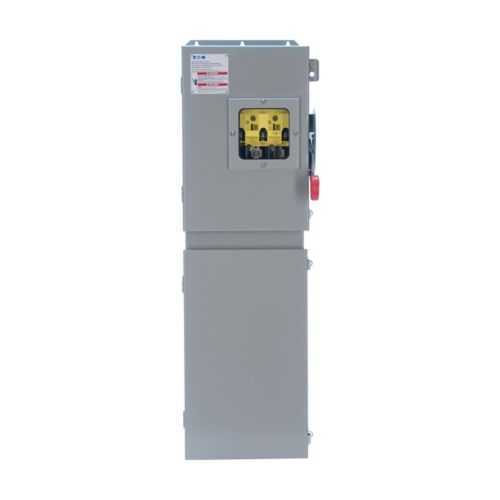

Eaton DD362FDKW Fused Safety Switch - UL Listed NEMA 12/3R

Part Number: DD362FDKW
DD362FDKW
Manufacturer
Eaton
Part number
DD362FDKW
Category

Quick Summary

Eaton double door single-throw fused safety switch provides reliable power isolation for industrial control panels. In fast-paced manufacturing or processing facilities, unplanned downtime often stems from unsafe isolation or difficult fuse access during routine maintenance. UL Listed and NEMA 12/3R-rated enclosures ensure dust-tight protection in harsh environments, while Class H fuses deliver dependable overcurrent protection. This unit's three-pole, fusible design with #14-2 wiring simplifies installation and helps you meet strict safety standards, reducing risk and maintenance costs. The combination of rugged steel enclosure and clear maintenance options supports compliance and long-term operational uptime for engineers and procurement teams.

Product Information

Extended Description

DD362FDKW Eaton: Eaton Double door single-throw fused safety switch, 60 A, NEMA 12/3R, Painted galvanized steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2
Product Name
Eaton double door single-throw fused safety switch
Catalog Number
DD362FDKW
UPC
786679176986
Product Length/Depth
37.49 in
Product Height
8.22 in
Product Width
12.33 in
Product Weight
37 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Double Door Isolation Switch
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty double door safety switch
Wire size
#14-2 AWG
Amperage Rating
60A
Fuse class provision
Class H
HP rating - max
20, 25/ 30, 50 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 12
Voltage rating
600 V
Product Category
Dust tight
Special features
w/ window
Flex Center Customized Double Door Switch with Voltage Indicator and Safe-Test Point Flex Center Customized Double Door Switch with Voltage Indicator and Safe-Test Point Flex Center Customized Double Door Switch with Voltage Indicator and Safe-Test Point Flex Center Customized Double Door Switch with Voltage Indicator and Safe-Test Point Flex Center Customized Double Door Switch with Voltage Indicator and Safe-Test Point Eaton Specification Sheet - DD362FDKW
60 A amperage rating paired with Class H fuse protection minimizes overcurrent risk and supports selective coordination across motor circuits. This reduces fuse replacement downtime and extends equipment life, improving overall line reliability. The DD362FDKW’s three-pole, three-wire configuration enables straightforward integration with common industrial motors and soft starters, enhancing control panel compatibility and reducing engineering time during installation. The NEMA 12/3R enclosure, painted galvanized steel, delivers dust-tight and weather-resistant protection, lowering corrosion concerns in dirty or outdoor environments and enabling safer, longer service intervals. A window option for fuse status allows quick visual verification during maintenance, cutting test times and minimizing unnecessary shutdowns. UL Listed certification and the noted catalog features reinforce regulatory compliance, supporting procurement decisions and risk mitigation for plant operators.

Get a Quick Quote for a Eaton DD362FDKW

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton DD362FDKW? Enquire Now

FAQs

The DD362FDKW uses a three-pole, three-wire configuration designed for NEMA 12 and NEMA 3R enclosures. It features a painted galvanized steel enclosure and supports #14-2 AWG conductors. This combination facilitates straightforward panel integration, compact footprint, and robust protection in dusty or damp environments commonly found on factory floors.
This safety switch is rated for 60 A and 600 V, with a fuse class provision of Class H. It is fusible without neutral, making selective coordination with downstream protection straightforward. These specifications support reliable disconnection for 3-phase motors and other load devices while maintaining safe, predictable operation.
Yes. The DD362FDKW is designed for three-phase service and provides HP ratings up to 50 hp at 1/3 PH for 480 and 600 V systems. It is ideal for motor control and equipment isolation in industrial environments where higher voltage panels and robust protection are required.
The unit is UL Listed and conforms to NEMA 12 and NEMA 3R enclosure classifications, matching dust-tight and splash-resistant application requirements. It’s suitable for regulatory-compliant installations in industrial facilities and helps ensure safe, reliable operation of power-distribution and motor-control circuits.
With durable painted galvanized steel housing, a window for fuse status, and a one-year warranty (plus 18 months from shipment), the DD362FDKW minimizes maintenance downtime and extends service intervals. These features reduce unscheduled outages and simplify spare-parts planning, delivering tangible cost savings and improved return on investment for plant operations.
