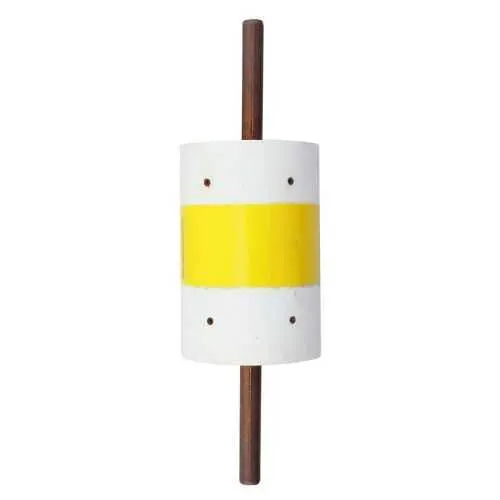

Eaton DFJ-500 High Speed Fuse - Class J, UL Listed
Part Number: DFJ-500
Quick Summary
The Eaton DFJ-500 High Speed Fuse protects electrical circuits by fast overcurrent interruption in industrial drives and control panels. In practice, selecting the wrong fuse leads to nuisance trips, extended downtime, and unnecessary maintenance costs. This Class J fuse offers a robust, compact solution with a clip-lock connection for quick field installation. It is CE marked and RoHS compliant for global compliance, and UL Listed plus CSA Certified to meet safety and reliability standards. With a Melamine tube rated for up to 600 Vac and 450 Vdc, it supports reliable protection in demanding environments. The DFJ-500 also helps optimize panel density and lifecycle costs while aligning with Bussmann series standards and common spare parts inventory.
Product Information
Extended Description
DFJ-500 Eaton: Eaton Bussmann series DFJ high speed fuse, 600 Vac or less, 450 Vdc or less, 500A, 200 kAIC at 600 Vac, 100 kAIC 450 Vdc, Non Indicating, High speed fuse, Clip-lock, Class J, Melamine tube
Product Name
Eaton Bussmann series DFJ high speed fuse
Catalog Number
DFJ-500
UPC
051712653985
Product Length/Depth
8.28 in
Product Height
2.65 in
Product Width
2.71 in
Product Weight
2.66 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
500 A
Interrupt rating
200 kAIC at 600 Vac 100 kAIC 450 Vdc
Voltage rating
600 Vac or less, 450 Vdc or less
Material
Melamine tube
Packaging type
Standard
Class
Class J
Connection
Clip-lock
Fuse indicator
Non Indicating
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - DFJ-500
DFJ-500~DRIVE FUSE
Datasheet - FNQ-30
Feature → The DFJ-500 delivers fast overcurrent interruption at 500 A with an interrupt rating of 200 kAIC at 600 Vac, enabling rapid fault clearance. Business Impact → This reduces fault severity, minimizes downtime, and lowers arc-flash exposure in critical equipment. Application → Ideal for drives, MCCs, and high-energy distribution panels where uptime and safety drive capital efficiency. Feature → Clip-lock connection and Class J construction provide secure, vibration-resistant mounting. Business Impact → Faster installation, easier maintenance, and reliable retention in dynamic industrial environments. Application → Suitable for factory floors, packaging lines, and retrofit panel upgrades. Feature → Melamine tube and robust mechanical design offer durable protection in harsh environments. Business Impact → Enhanced reliability, reduced replacement frequency, and consistent protection under load transients. Application → Common in motor control centers and control panels with limited serviceability. Feature → Comprehensive certifications (UL Listed, CSA Certified, CE Marked, RoHS) support global compliance. Business Impact → Streamlines procurement, QA, and cross-border deployments. Application → Global manufacturers seeking harmonized safety approvals. Feature → Precise dimensional footprint and standard packaging aid installation planning. Business Impact → Easier enclosure zoning, footprint optimization, and predictable spare-part inventories. Application → Panel design and space-constrained control cabinets.
