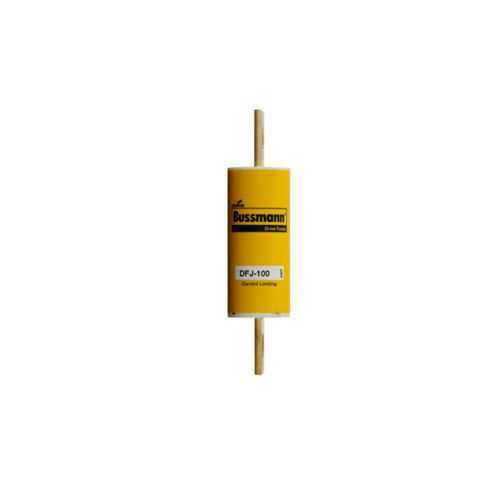

Eaton DFJ-70-W High Speed Fuse - UL Listed Class J
Part Number: DFJ-70-W
Quick Summary
Eaton DFJ-70-W high speed fuse is designed to protect power circuits in industrial control panels and motor drives, delivering rapid interruption when faults occur. Engineers frequently wrestle with devices that combine fast protection with reliable operation, where nuisance trips and extended downtime can erase productivity. This DFJ-70-W variant carries UL Listed and CSA Certified status and CE RoHS compliance, supporting regulatory acceptance across North American and European facilities. The clip-lock connection and melamine tube construction enable quick, secure installations in compact enclosures, while tolerating diverse mounting orientations. By reducing mean time to repair and ensuring consistent protective performance at up to 600 Vac or 450 Vdc, it strengthens uptime, safety, and cost efficiency.
Product Information
Extended Description
DFJ-70-W Eaton: Eaton Bussmann series DFJ high speed fuse, 600 Vac or less, 450 Vdc or less, 70A, 200 kAIC at 600 Vac, 100 kAIC 450 Vdc, Non Indicating, High speed fuse, Clip-lock, Class J, Melamine tube - DFJ-70-W
Product Name
Eaton Bussmann series DFJ high speed fuse
Catalog Number
DFJ-70-W
UPC
051712369770
Product Length/Depth
4.83 in
Product Height
1.19 in
Product Width
1.18 in
Product Weight
0.31 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
70 A
Interrupt rating
100 kAIC 450 Vdc 200 kAIC at 600 Vac
Voltage rating
600 Vac or less, 450 Vdc or less
Material
Melamine tube
Packaging type
Standard
Class
Class J
Connection
Clip-lock
Fuse indicator
Non Indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - DFJ-70-W
High-speed protection translates to shorter fault durations and reduced arc energy, directly improving system uptime and protecting drives, contactors, and wiring from damage. The 70 A rating aligns with common motor control applications, delivering reliable interruption at the exact current level while maintaining selectivity with upstream protective devices. The clip-lock design simplifies field wiring and panel assembly, cutting installation time and labor costs in dense control cabinets. Its melamine tube construction offers durability in harsh environments, enhancing longevity in automated lines and packaging equipment. Compliance to UL Listed, CSA Certified, and CE RoHS ensures audit readiness and smoother cross-border deployments. The compact form factor, combined with standard packaging, eases inventory management for OEMs and refurbishing projects. Overall, this fuse supports predictable protection, easier maintenance planning, and lower total cost of ownership in industrial automation contexts.
Get a Quick Quote for a Eaton DFJ-70-W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DFJ-70-W?
Enquire Now
FAQs
The DFJ-70-W uses a clip-lock connection that snaps securely into standard fuse holders designed for Class J devices. With a length of 4.83 in, width of 1.18 in, and height of 1.19 in, it fits compact panels and MCCs. Ensure proper clearance and align the clip-lock terminals with matching conductors or bus bars for a clean, vibration-resistant connection. This minimizes rework during panel assembly and improves reliability in automated environments.
The DFJ-70-W is a 70 A high-speed fuse rated for up to 600 Vac or 450 Vdc. Its interrupt ratings are 200 kAIC at 600 Vac and 100 kAIC at 450 Vdc, supporting fast fault interruption and robust short-circuit withstand. This combination protectors downstream equipment like motors and drives while meeting demanding industrial safety and reliability requirements.
This fuse is well-suited for industrial automation, motor drives, CNC machinery, conveyors, and power distribution panels. Its Class J design, clip-lock connection, and high interrupt ratings make it a dependable choice for applications requiring fast protection with high current capacity, such as packaging lines, material handling systems, and machine tool controls.
The DFJ-70-W carries UL Listed and CSA Certified certifications and CE Mark RoHS compliance. These approvals support regulatory compliance in North America and Europe, simplify supplier qualifications, and reduce risk during audits and cross-border deployments in global facilities.
As a non-indicating fuse, the DFJ-70-W relies on protective coordination and system diagnostics to signal failure. Plan for periodic panel checks and spare inventory to minimize downtime. Its compact size and standard packaging simplify stocking, while reliable protection reduces component damage and maintenance cycles, delivering lower total cost of ownership over the equipment’s lifecycle.
