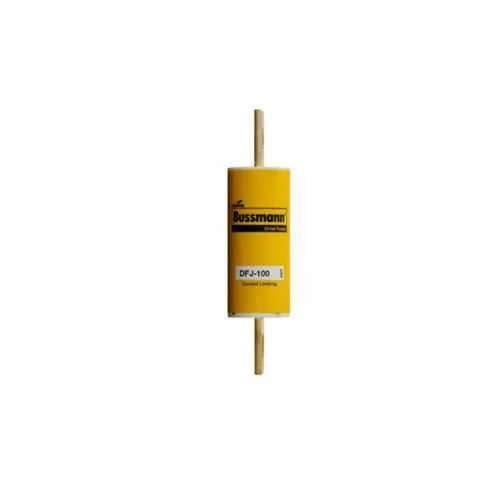

Eaton DFJ-80-W High Speed Fuse Class J - UL Listed
Part Number: DFJ-80-W
Quick Summary
The Eaton DFJ-80-W high speed fuse protects industrial control circuits and motor drives by delivering fast interruption at fault currents. That rapid response helps minimize downtime and equipment damage in harsh factory environments where nuisance trips can stall production. UL Listed, CSA Certified, CE Marked, and RoHS Compliant provide robust, global safety and procurement assurance for multinational projects. Designed as a Class J, clip-lock fuse with a melamine tube, it supports easy retrofits and consistent panel performance across a broad range of applications. This combination translates to lower total cost of ownership, simplified sourcing, and dependable protection for 600 Vac and 450 Vdc circuits in automation settings.
Product Information
Extended Description
DFJ-80-W Eaton: Eaton Bussmann series DFJ high speed fuse, 600 Vac or less, 450 Vdc or less, 80A, 200 kAIC at 600 Vac, 100 kAIC 450 Vdc, Non Indicating, High speed fuse, Clip-lock, Class J, Melamine tube - DFJ-80-W
Product Name
Eaton Bussmann series DFJ high speed fuse
Catalog Number
DFJ-80-W
UPC
051712369787
Product Length/Depth
4.83 in
Product Height
1.19 in
Product Width
1.18 in
Product Weight
0.31 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
80 A
Interrupt rating
200 kAIC at 600 Vac 100 kAIC 450 Vdc
Voltage rating
600 Vac or less, 450 Vdc or less
Material
Melamine tube
Packaging type
Standard
Class
Class J
Connection
Clip-lock
Fuse indicator
Non Indicating
DFJ-80-W~UL Recognized 700 V DFJ
DFJ-80-W~UL Recognized 700 V DFJ
Eaton Specification Sheet - DFJ-80-W
The DFJ-80-W provides a 200 kAIC interrupt rating at 600 Vac. This rapid fault clearance reduces arc exposure and protects downstream equipment in panels and motor control centers. The device also supports a voltage rating of 600 Vac or less and 450 Vdc or less, enabling protection across both AC and DC circuits with a single, standard component in mixed-control environments. Class J, clip-lock construction with a melamine tube ensures compatibility with standard Bussmann fixtures, enabling quick field replacements and consistent panel performance in industrial control panels and machine wiring. The non-indicating design keeps panel interiors clean while maintaining reliable operation and simple visual inspection. Certifications and RoHS compliance (UL Listed, CSA Certified, CE Marked) streamline procurement and regulatory reporting, reducing compliance overhead. With a compact footprint (4.83 in L Ă— 1.19 in H Ă— 1.18 in W) and a weight of 0.31 lb, it fits standard enclosures and supports straightforward retrofits and maintenance planning.
Get a Quick Quote for a Eaton DFJ-80-W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DFJ-80-W?
Enquire Now
FAQs
The DFJ-80-W is a Class J fuse with Clip-lock connections designed for standard Bussmann fixtures. It fits in common power distribution panels, motor control centers (MCCs), and panelboards, offering straightforward retrofit compatibility across legacy and new automation installations.
Key specs include an 80 A rating, a 200 kAIC interrupt rating at 600 Vac, and support for 450 Vdc. Voltage rating is 600 Vac or less and 450 Vdc or less, making it suitable for mixed AC/DC circuits in industrial controls and automation equipment.
Yes. The DFJ-80-W is UL Listed, CSA Certified, CE Marked, and RoHS compliant, providing robust safety, regulatory alignment, and global procurement acceptance for multinational facilities.
Fast fault clearing reduces downtime and equipment damage, lowering maintenance costs and replacement parts usage. Its standard Class J form factor and clip-lock design simplify stocking and field replacements, improving uptime and overall return on investment in automated manufacturing environments.
The fuse measures 4.83 inches in length, 1.19 inches in height, and 1.18 inches in width, with an approximate weight of 0.31 lb. This compact footprint fits standard enclosures and supports space planning in control panels and MCCs.
