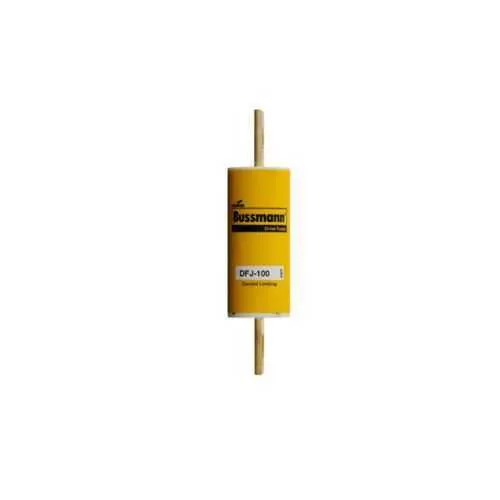

Eaton DFJ-90-W High Speed Fuse - UL Listed 600Vac/90A
Part Number: DFJ-90-W
Quick Summary
The Eaton DFJ-90-W high speed fuse protects industrial control circuits and motor drives by rapidly interrupting fault currents. Nuisance trips and downtime hurt productivity; fast-acting protection minimizes unplanned outages and extends equipment life. This device carries CE marking and RoHS compliance, plus CSA certification and UL listing, delivering safety, reliability, and regulatory alignment. With clip-lock connections, a standard Melamine tube design, and a compact footprint, it supports easy integration and cost-effective maintenance in rugged environments. End users benefit from predictable protection in power distribution, drives, and control panels, while procurement teams appreciate consistent form factors and documented specifications. This combination helps OEMs meet uptime SLAs and reduces spare parts variety across plants.
Product Information
Extended Description
DFJ-90-W Eaton: Eaton Bussmann series DFJ high speed fuse, 600 Vac or less, 450 Vdc or less, 90A, 200 kAIC at 600 Vac, 100 kAIC 450 Vdc, Non Indicating, High speed fuse, Clip-lock, Class J, Melamine tube - DFJ-90-W
Product Name
Eaton Bussmann series DFJ high speed fuse
Catalog Number
DFJ-90-W
UPC
051712369794
Product Length/Depth
4.83 in
Product Height
1.19 in
Product Width
1.18 in
Product Weight
0.31 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
CSA Certified UL Listed
Amperage Rating
90 A
Interrupt rating
100 kAIC 450 Vdc 200 kAIC at 600 Vac
Voltage rating
600 Vac or less, 450 Vdc or less
Material
Melamine tube
Packaging type
Standard
Class
Class J
Connection
Clip-lock
Fuse indicator
Non Indicating
DFJ-90-W~UL Recognized 700 V DFJ
DFJ-90-W~UL Recognized 700 V DFJ
Eaton Specification Sheet - DFJ-90-W
High-speed fault interruption with a 90 A rating delivers immediate protection in energized equipment. By interrupting faults before fault energy accumulates, equipment damage, arc flash risk, and downtime are significantly reduced, yielding lower maintenance costs and improved mean time between failures. Application: Ideal for motor drives, programmable logic controllers, and power distribution panels in industrial automation; the 200 kAIC interrupt rating at 600 Vac ensures resilience against high-energy faults. clip-lock connection and melamine tube enable quick replacements and reliable insulation, reducing maintenance time and prolonging panel life. Comprehensive certifications simplify audits and procurement while CE marking and UL/CSA listings validate safety and compliance across global facilities. The compact 4.83 in length, 1.19 in height, and 1.18 in width footprint suits space-constrained panels without sacrificing performance. Compatibility with Bussmann series reduces training needs and accelerates retrofits across plants.
Get a Quick Quote for a Eaton DFJ-90-W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DFJ-90-W?
Enquire Now
FAQs
DFJ-90-W uses a clip-lock connection designed for quick field replacement without special tools. Ensure the clip-lock terminals mate with standard Bussmann-series clips in Class J fuse holders, maintain proper alignment to avoid arcing, and verify secure seating to preserve interrupt performance under load. The Melamine tube provides insulation for safe operation in typical industrial cabinets.
The DFJ-90-W is rated for 90 A with an interrupt rating of 200 kAIC at 600 Vac and 100 kAIC at 450 Vdc. Voltage rating is 600 Vac or less and 450 Vdc or less, making it suitable for a wide range of industrial power circuits. It is a Class J, non-indicating fuse with a Melamine tube construction.
Yes. With a 90 A rating and high interrupt capacity, the DFJ-90-W is well-suited for motor drives and automation controls where rapid fault clearing protects drives, cables, and power electronics. Its clip-lock design simplifies maintenance, and its compact form factor helps fit into dense control panels typical of conveyors and packaging lines.
DFJ-90-W carries CE marking and RoHS compliance, along with CSA certification and UL listing. These certifications validate safety, environmental compliance, and third-party reliability, facilitating cross-border procurement and reducing qualification time in regulated industries such as food processing, packaging, and material handling.
Using the DFJ-90-W can reduce downtime from short circuits due to its fast interruption (high AIC ratings), lower maintenance costs through quicker replacements with clip-lock design, and simplify spares management with a standard Bussmann-series fuse footprint. Combined, these factors shorten mean time between outages and improve overall line productivity.
