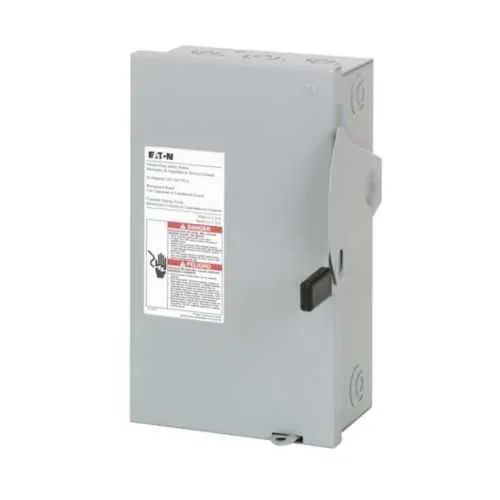

Eaton DG221NGB General Duty Fuse Safety Switch - UL Listed
Part Number: DG221NGB
Quick Summary
The Eaton DG221NGB general duty fuse safety switch protects low-voltage circuits in control panels and machine enclosures. Maintenance teams often face downtime and unsafe fuse replacements, so secure isolation and predictable service times are essential. UL Listed, NEC 230.62 barrier compliant, and a rugged NEMA 1 painted steel enclosure deliver robust protection in demanding environments. This unit supports 30A, 240V circuits with Class H fuses and fusible with neutral, enabling efficient panel design and straightforward installation. For engineers and maintenance leaders, that translates to safer commissioning, lower lifecycle costs, and faster return-to-production.
Product Information
Extended Description
DG221NGB Eaton: Eaton General duty cartridge fuse safety switch, 30 A, NEMA 1, Painted steel, Class H fuses, Fusible with neutral, Two-pole, Three-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG221NGB
UPC
782113120171
Product Length/Depth
6.89 in
Product Height
10.23 in
Product Width
6.1 in
Product Weight
5.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used. 3-Phase hp rating shown is a grounded B phase rating, UL listed.
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
General duty, cartridge fused
Amperage Rating
30A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DG221NGB
Feature: Two-pole design with fusible neutral and NEMA 1 enclosure. Business impact: Provides reliable electrical isolation and durable protection in standard industrial environments, reducing the risk of accidental energization during servicing. Application: Ideal for general duty safety switching in control panels and machine enclosures. Feature: 30A amperage rating at 240V with Class H fuses. Business impact: Delivers appropriate overcurrent protection for common low-voltage motor and control circuits, minimizing nuisance trips and extending equipment life. Application: Suitable for general duty power distribution in machinery lines with dual-element fuse considerations.Feature: UL Listed with NEC 230.62 barrier compliance. Business impact: Supports safe, code-compliant installations and smoother inspections, lowering project risk. Application: Preferred where electrical safety and regulatory alignment are mandatory in panel builds.Feature: Painted steel enclosure and compact footprint. Business impact: Easy integration into existing control cabinets, reducing retrofit effort and enclosure real estate needs. Application: Beneficial for retrofit projects and new equipment racks requiring reliable protection without bulky housings.Feature: Documentation and warranty terms. Business impact: Provides confidence through a one-year warranty (or 18 months from shipment) and clear support, reducing total cost of ownership. Application: Ideal for OEMs and maintenance teams seeking predictable service life and coverage.
Get a Quick Quote for a Eaton DG221NGB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG221NGB?
Enquire Now
FAQs
When installing the DG221NGB, ensure a two-pole, three-wire configuration with fusible neutral as specified. Verify the NEMA 1 painted steel enclosure fits the panel opening and that the 240V supply and 30A load align with the Class H fuse requirements. Follow lockout/tagout procedures and consult the NEC barrier guidelines during mounting to maintain safe clearance and isolation.
Key specifications include a 30A amperage rating, 240V voltage rating, two-pole configuration, fusible with neutral, and Class H fuses. The unit uses a three-wire connection and is designed for general duty safety switching. It is UL Listed and suited for low-voltage control circuits in industrial environments, with a NEMA 1 painted steel enclosure.
Yes. The DG221NGB is designed with NEC 230.62 barrier compliance in mind, providing a safe and code-conforming isolation barrier within the enclosure. This helps installers meet regulatory expectations during commissioning and reduces the risk of non-compliance findings during inspections.
The DG221NGB carries Eaton’s standard warranty: one year from the date of installation or eighteen months from the date of shipment, whichever occurs first. This warranty covers manufacturing defects and sets a clear service expectation for OEMs and end users, supporting maintenance planning and lifecycle budgeting.
Maximum horsepower ratings apply only when dual-element fuses are used. The catalog notes indicate a grounded B phase rating for 3-phase configurations, and the unit is UL listed for safe operation. Engineers should verify hp and motor type per the dual-element fuse guidance to ensure reliable protection in 3-phase drives and motor circuits.
