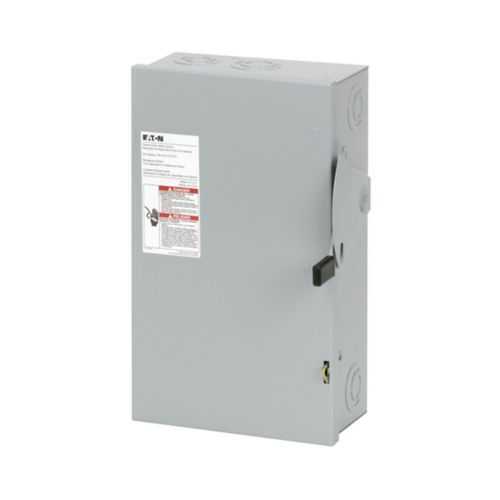

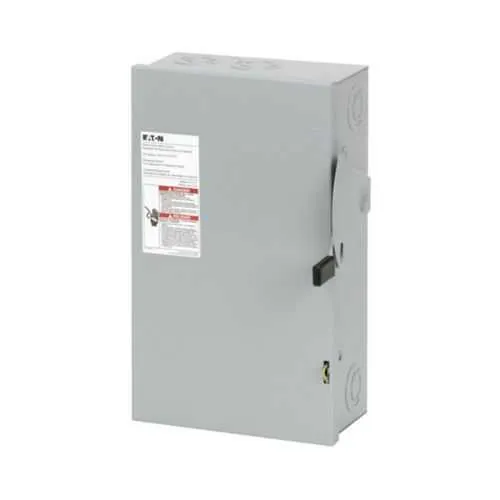

Eaton DG222NGBP General Duty Safety Switch - UL Listed
Part Number: DG222NGBP
Quick Summary
The Eaton DG222NGBP general duty cartridge fuse safety switch protects 60 A circuits in general purpose panels. In busy electrical rooms, mis-sizing or delayed fuse protection can cause costly downtime and safety risks. This DG222NGBP unit is UL Listed, NEC 230.62 barrier compliant, and housed in a NEMA 1 painted steel enclosure. It uses Class H fuses and provides fusible with neutral protection for two poles and three wires at 240 V. Engineers gain straightforward installation, clear labeling, and reliable operation that supports uptime, safety, and regulatory compliance. The compact form factor and compatibility with Eaton switchgear simplify retrofits and spare-part sourcing. With Eaton's warranty and readily available catalogs, procurement and maintenance become predictable, lowering total cost of ownership.
Product Information
Extended Description
DG222NGBP Eaton: Eaton General duty cartridge fuse safety switch, 60 A, Painted steel, NEMA 1, Class H fuses, Fusible with neutral, Two-pole, Three-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG222NGBP
UPC
786685555607
Product Length/Depth
7.35 in
Product Height
13.93 in
Product Width
8.4 in
Product Weight
10 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
General duty, cartridge fused
Amperage Rating
60A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Special features
Posi-lok receptacle
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DG222NGBP
Feature: The DG222NGBP delivers 60 A general duty fuse protection using a fusible-with-neutral cartridge in a two-pole, three-wire configuration. Business Impact: This provides predictable disconnection and reduced arc energy, enhancing personnel safety and protecting downstream equipment. Application: It suits general-duty safety switch installations in control panels and dry indoor environments. Feature: Painted steel enclosure with a NEMA 1 rating. Business Impact: Indoor dry-location protection minimizes corrosion and simplifies mounting. Application: Ideal for conventional panelboards and service enclosures in commercial facilities. Feature: UL Listed certification and NEC 230.62 barrier compliance with Class H fuse compatibility. Business Impact: Regulatory alignment reduces inspection risk and ensures safer operation. Application: Suitable for general duty safety switch installations in regulated facilities. Feature: Posi-lok receptacle and compatibility with standard Eaton switchgear footprints. Business Impact: Reduces mis-wiring and improves installation reliability. Application: Retrofit projects and new builds where quick, dependable interlocks are important. Feature: Clear documentation and warranty terms. Business Impact: Supports predictable maintenance planning and lower total cost of ownership. Application: Procurement and service planning with OEM support.
Get a Quick Quote for a Eaton DG222NGBP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG222NGBP?
Enquire Now
FAQs
DG222NGBP supports two-pole, three-wire wiring with a fusible cartridge configuration that is designed for neutral. It is rated at 60 A and 240 V and uses a NEMA 1 indoor enclosure. The unit matches standard panelboard and Eaton switchgear footprints and includes a secure Posi-lok receptacle, simplifying alignment and reducing potential mis-wiring during retrofit projects.
DG222NGBP is specified for 60 A, 240 V operation and uses Class H fuses in a fusible-with-neutral configuration. The device is UL Listed and designed for two-pole operation with three wires. This combination delivers timely protection against faults while preserving service continuity for non-motor loads in general-duty panels.
Yes. The DG222NGBP meets UL Listed requirements and complies with NEC 230.62 barrier standards, ensuring safe isolation practices. This alignment supports code compliance during inspections and reduces the risk of non-conformance in commercial and light-industrial installations, making it suitable for regulated control panels and service disconnects.
The DG222NGBP carries a warranty of one year from installation or eighteen months from shipment, whichever occurs first. Eaton provides extensive catalogs and technical datasheets to assist procurement, part identification, and maintenance planning, helping teams minimize downtime and maintain compatibility with existing switchgear across multiple projects.
Typical applications include service disconnects and control panels in commercial buildings and light industrial facilities requiring fast isolation and dependable protection. The two-pole, 240 V design with a neutral-fused configuration makes it suitable for panelboards, motor-control centers, and general safety switching tasks, delivering reliable operation during routine maintenance and fault conditions.
