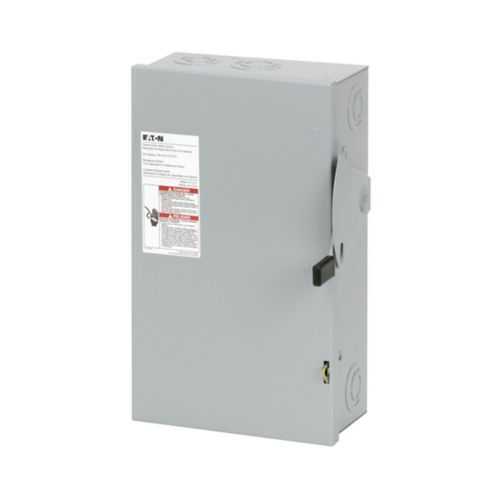

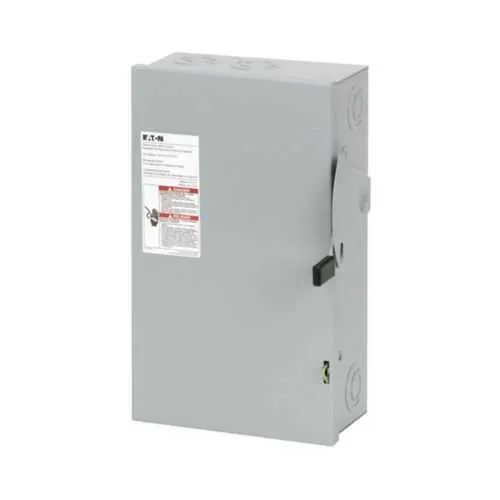

Eaton DG222UGB General Duty Safety Switch - UL Listed
Part Number: DG222UGB
Quick Summary
The Eaton DG222UGB general duty non-fusible safety switch provides reliable indoor switching for 60A, 240V panels. Maintenance teams and panel builders struggle with install-time, space constraints, and code compliance in compact control rooms. UL Listed and NEC-compliant barrier features help ensure safety and reliable operation in demanding environments. For general-duty control panels and service equipment, this unit offers a robust enclosure, straightforward installation, and predictable lifecycle costs, supporting efficient project delivery and long-term reliability. The product's compact footprint, durable painted steel enclosure, and two-pole, two-wire configuration streamline installation in tight spaces. With a one-year warranty and clear Eaton support resources, engineers can plan maintenance windows with confidence.
Product Information
Extended Description
DG222UGB Eaton: Eaton General duty non-fusible safety switch, single-throw, 60 A, NEMA 1, Indoor, Painted steel, Two-pole, Two-wire, 240 V
Product Name
Eaton general duty non-fusible safety switch
Catalog Number
DG222UGB
UPC
782114731130
Product Length/Depth
7.38 in
Product Height
14.19 in
Product Width
8.69 in
Product Weight
9 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse configuration
Non-fusible
Number Of Poles
Two-pole
Number of wires
2
Type
Non-fusible, single-throw
Amperage Rating
60A
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DG222UGB
60A, 240V, two-pole, non-fusible design delivers precise protection against overloads while staying simple to wire. This reduces downtime and simplifies preventive maintenance across the plant. Use it in general-duty control panels, motor starters, and machine enclosures where fast commissioning and dependable operation matter. Enclosure is a NEMA 1, painted-steel cabinet that guards against dust and incidental exposure in indoor environments. The consequence is longer service life for panels and fewer field service calls, especially in dusty manufacturing floors, while maintaining compatibility with standard indoor installations. UL Listed certification and NEC 230.62 (C) compliant barrier support code compliance and safety audits, helping panel builders and integrators meet regulatory requirements with confidence. For service-entrance configurations, catalog notes indicate that a neutral kit must be installed, ensuring proper neutral grounding and compliant wiring paths. The unit’s compact dimensions and 9 lb weight simplify retrofits and new installations in space-constrained panels, reducing logistics and inventory burden while preserving reliability. Warranty coverage of one year from installation or eighteen months from shipment provides predictable post-purchase support and a clear roadmap for maintenance planning.
Get a Quick Quote for a Eaton DG222UGB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG222UGB?
Enquire Now
FAQs
Ensure indoor mounting within a NEMA 1 enclosure footprint and verify two-pole, two-wire wiring. Note the catalog instruction: service-entrance installations require a neutral kit. Plan for compatible mounting hardware and adequate bottom/top clearance for heat dissipation. This reduces rework and accelerates commissioning in new builds or retrofits.
Yes, the DG222UGB is UL Listed. It also features a NEC 230.62 (C) compliant barrier, contributing to code compliance in service equipment and general-duty switching applications. The enclosure is rated NEMA 1 for indoor environments, providing dust protection and mechanical integrity in typical industrial spaces.
Service-entrance use requires installation of a neutral kit per catalog notes. Without the neutral kit, the switch is not approved for service entrance applications. For panel upgrades or new builds, verify wiring paths and neutral requirements to ensure compliance and safe operation.
The DG222UGB is rated at 60A and 240V, configured as a two-pole, two-wire, non-fusible switch. It provides dependable general-duty switching for indoor control panels and machine enclosures, with a straightforward wiring scheme designed to minimize installation complexity and potential fault paths.
The product carries Eaton’s warranty of one year from installation or eighteen months from shipment, whichever occurs first. Eaton also provides access to specification sheets and service resources to support installation, maintenance planning, and future upgrades, helping protect total cost of ownership over the product lifecycle.
