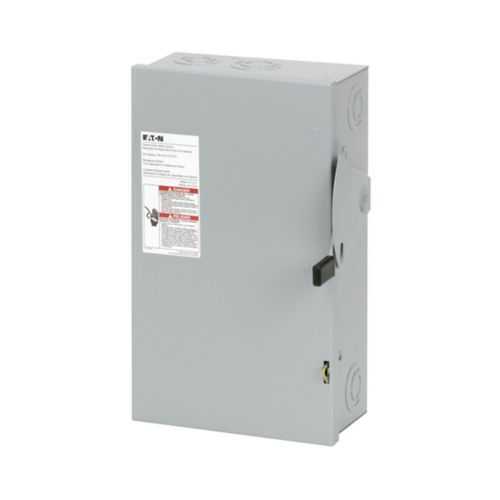

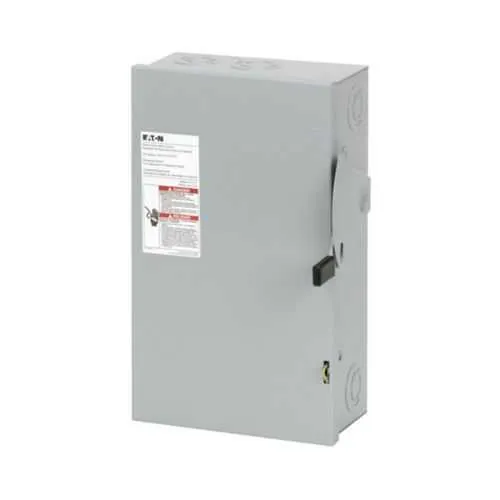

Eaton DG222UGB-CSA General Duty Safety Switch CSA-Certified
Part Number: DG222UGB-CSA
Quick Summary
Eaton DG222UGB-CSA general duty non-fusible safety switch provides reliable 60 A, 240 V motor-disconnect protection for indoor panel setups. Engineers often struggle with switches that don’t meet NEC or CSA requirements, risking downtime and compliance gaps. This unit carries CSA Certification and NEC 230.62 (C) compliant barrier, supporting safer installations in regulated environments. As a general duty safety switch with a painted steel NEMA 1 enclosure, it is designed for indoor control panels, delivering robust protection with straightforward procurement. By aligning with common industry standards and offering clear documentation, it helps streamline sourcing, installation, and ongoing maintenance for electrical protection teams.
Product Information
Extended Description
DG222UGB-CSA Eaton: Eaton General duty non-fusible safety switch, single-throw, 60 A, NEMA 1, Painted steel, Indoor, Two-pole, Two-wire, 240 V
Product Name
Eaton general duty non-fusible safety switch
Catalog Number
DG222UGB-CSA
UPC
786685223100
Product Length/Depth
7.38 in
Product Height
14.19 in
Product Width
8.69 in
Product Weight
9 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
CSA Certified
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse configuration
Non-fusible
Number Of Poles
Two-pole
Number of wires
2
Type
Non-fusible, single-throw
Amperage Rating
60A
Voltage rating
240V
Product Category
General duty safety switch
Special features
CSA Certified
Feature → Business Impact → Application: The DG222UGB-CSA is a 60A, 240V, two-pole, two-wire, non-fusible disconnect, enabling straightforward integration into existing control circuits while delivering reliable protection against accidental energization. This translates to reduced downtime and improved safety in manufacturing lines and industrial equipment; ideal for machine controls and conveyor systems operating at standard industrial voltages. Feature → Business Impact → Application: NEMA 1 painted steel enclosure provides indoor protection against dust and incidental impacts, simplifying on-site installation and reducing enclosure maintenance costs in factory environments. This is particularly beneficial for control panels on shop floors where space is at a premium and quick wiring changes are common. Feature → Business Impact → Application: CSA Certification and NEC 230.62 (C) compliant barrier ensure regulatory alignment, making compliance audits smoother and minimizing risk of fines or work stoppages in regulated facilities. Feature → Business Impact → Application: 7.38 in depth, 14.19 in height, 8.69 in width with a 9 lb weight yields a compact footprint that integrates into existing panels without extensive rework, supporting retrofit projects and new builds alike. Feature → Business Impact → Application: The unit’s general duty designation and non-fusible configuration offer cost-effective protection for non-critical loads, providing a reliable disconnect without the complexity of fused units, while preserving service access and maintenance workflows. Feature → Business Impact → Application: The 240 V/60 A rating supports motor and equipment startups in light to moderate load scenarios, minimizing voltage drop concerns and enabling smoother startup sequences in equipment like pumps, fans, and conveyors. Feature → Business Impact → Application: CSA-certified product documentation and warranty alignment reduce procurement risk and provide clear ownership for installation teams and maintenance contractors, improving total cost of ownership over the product lifecycle.
Get a Quick Quote for a Eaton DG222UGB-CSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG222UGB-CSA?
Enquire Now
FAQs
Begin by confirming a 240 V supply and a two-wire, two-pole configuration. Mount the non-fusible disconnect inside a NEMA 1 enclosure, following NEC 230.62 barrier guidance. Wire connections should be properly insulated and secured, with assembly torque per manufacturer recommendations. This setup delivers a compliant, safe isolation point for equipment in indoor environments.
It is rated 60 A at 240 V with a non-fusible, single-throw design, tailored for general-duty safety switching in standard industrial circuits. The two-pole, two-wire configuration supports straightforward integration into motor controls and panel feeds, while the painted steel enclosure provides reliable indoor protection without the complexity of high-end protective switches.
Yes. The DG222UGB-CSA is CSA Certified and features a NEC 230.62 (C) compliant barrier, ensuring regulatory alignment for indoor installations. The combination supports safer work practices, smoother compliance audits, and reduced risk during inspections or downtime caused by non-compliant equipment.
The unit uses a NEMA 1 enclosure with a painted steel body for indoor use. Its compact footprint (7.38 in depth, 14.19 in height, 8.69 in width) and 9 lb weight simplify panel integration and retrofit projects. Ensure mounting follows standard electrical enclosure practices and maintain clear access for safe operation and maintenance.
The DG222UGB-CSA delivers reliable 60 A protection with a CSA-certified specification, which reduces downtime risk and regulatory scrutiny. Its simple non-fusible design lowers maintenance complexity, while the warranty provides post-sale reassurance. In regulated environments, the verified certifications translate to quicker audits and fewer project delays, improving overall equipment uptime and life-cycle costs.
