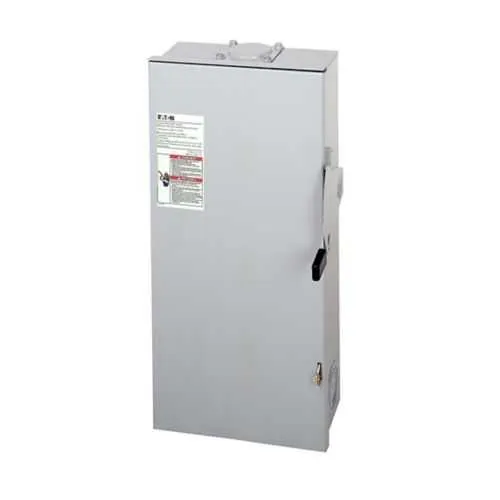

Eaton DG223NRB General Duty Safety Switch - UL Listed
Part Number: DG223NRB
Quick Summary
The Eaton DG223NRB general duty safety switch protects three-wire, two-pole circuits up to 240 V. Engineers often struggle with fuse compatibility, enclosure protection, and installation in tight spaces. UL Listed, NEC 230.62 compliant barrier, and a NEMA 3R enclosure provide safety, code compliance, and weather-resistance. This solution leverages Class H fuses and fusible-with-neutral design to streamline stocking and panel builds, boosting uptime and maintenance planning. For panel builders and service teams, it simplifies specification and procurement without compromising protection. By meeting industry standards, it reduces risk during commissioning and supports long-term reliability in environmentally challenging installations. In practice, contractors gain predictable procurement cycles and fewer spare parts, translating to lower total cost of ownership. Its rugged construction and heritage of Eaton reliability help teams meet aggressive project timelines.
Product Information
Extended Description
DG223NRB Eaton: Eaton General duty cartridge fuse safety switch, 100 A, NEMA 3R, Painted galvanized steel, Class H fuses, Fusible with neutral, Two-pole, Three-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG223NRB
UPC
782113144252
Product Length/Depth
7.38 in
Product Height
19.25 in
Product Width
9.13 in
Product Weight
14 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used. 3-Phase hp rating shown is a grounded B phase rating, UL listed.
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
General duty, cartridge fused
Amperage Rating
100A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DG223NRB
Feature: 100 A amperage rating with Class H fuses and fusible-with-neutral design. Business impact: delivers precise overload protection and selective coordination, reducing nuisance trips and minimizing downtime during fault events. Application: ideal for general duty safety switch installations in commercial and light-industrial panel assemblies, where dependable disconnects are critical. Long-tail keywords addressed include general duty safety switch with neutral and cartridge fused safety switch compatibility.
Get a Quick Quote for a Eaton DG223NRB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG223NRB?
Enquire Now
FAQs
The DG223NRB is a two-pole, three-wire disconnect designed for 240 V systems. It mounts in a NEMA 3R enclosure with a painted galvanized steel body, and uses fusible-with-neutral Class H fuses. Ensure enough clearance for the 7.38 in depth and plan for mounting within standard electrical panels to maintain proper barrier separation as per NEC requirements.
Key specifications include a 100 A amperage rating, 240 V voltage rating, Class H fuses, fusible with neutral configuration, and UL Listed certification. The enclosure is NEMA 3R with a 2-pole, 3-wire design, supporting general duty safety switch applications in commercial and light-industrial environments.
Yes. The DG223NRB uses a NEMA 3R enclosure with painted galvanized steel, which provides weather-resistance for outdoor or semi-exposed installations. Proper mounting and enclosure sealing are still required to maintain barrier integrity and prevent environmental ingress in adverse conditions.
The DG223NRB is UL Listed, and the design includes a NEC 230.62 compliant barrier. This combination supports compliance in building codes and electrical installations, ensuring a credible basis for safe operation in standard commercial and light-industrial panels.
The DG223NRB reduces downtime through reliable disconnects and minimizes spare-part variety with a single, standard 100 A safety switch solution. Its compatibility with Class H fuses and neutral fusion simplifies stocking, procurement, and maintenance planning, delivering a lower total cost of ownership over the panel’s life cycle.
