Eaton DG224NGK General Duty Safety Switch - UL Listed
Part Number: DG224NGK
Quick Summary
Eaton DG224NGK general duty safety switch protects 200 A circuits in light-industrial panels. It simplifies protection with a fusible-neutral, two-pole, three-wire configuration designed for dependable isolation. The design meets important compliance benchmarks, including UL Listed status, NEC 230.62 barrier compliance, and a NEMA 1 painted steel enclosure, helping you pass inspections without custom solutions. This unit uses Class H fuses and is fusible with neutral, offering a clean, coordinated protection scheme for motors, pumps, and generic control circuits. With robust construction and standardized dimensions, installation fits typical electrical rooms and panels, reducing customization. The Eaton DG224NGK also delivers reliable warranty coverage and predictable lifecycle costs, supporting uptime and maintenance planning in facilities and OEM environments.
Product Information
Extended Description

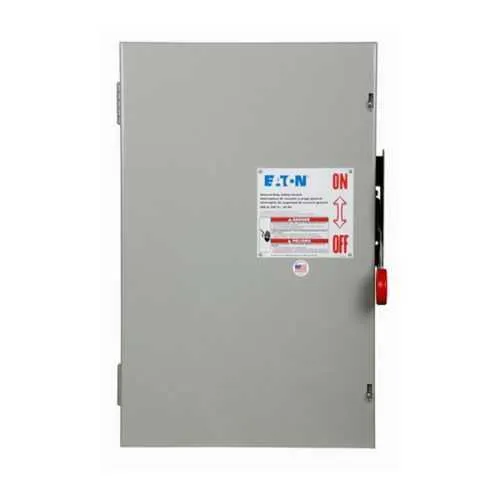

DG224NGK Eaton: Eaton General duty cartridge fuse safety switch, 200 A, NEMA 1, Painted steel, Class H fuses, Fusible with neutral, Two-pole, Three-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG224NGK
UPC
782113213491
Product Length/Depth
11.25 in
Product Height
24.75 in
Product Width
16 in
Product Weight
48 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used. 3-Phase hp rating shown is a grounded B phase rating, UL listed.
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
General duty, cartridge fused
Amperage Rating
200A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DG224NGK
Feature → Business Impact → Application: The DG224NGK employs a two-pole, fusible with neutral configuration rated at 200 A and 240 V, enabling safe isolation of motor loads and control circuits while maintaining a compact footprint. This design reduces wiring complexity and enables straightforward replacement of fuses, shortening downtime during maintenance and enabling faster panel servicing in production lines and HVAC systems. The enclosure uses a NEMA 1 painted steel housing, providing durable protection in standard indoor electrical rooms and equipment closets, which lowers mounting concerns in confined spaces and supports reliable performance in harsh environments. Class H fuses are specified, delivering selective coordination and improved fault clearing for common industrial loads, with the added benefit of predictable fuse life and reduced nuisance tripping when used within intended HP ratings. Compliance-friendly features like NEC barrier and UL Listed certification simplify audits and installation planning, while the fusible-neutral arrangement supports clean grounding schemes and safe disconnection during service.
