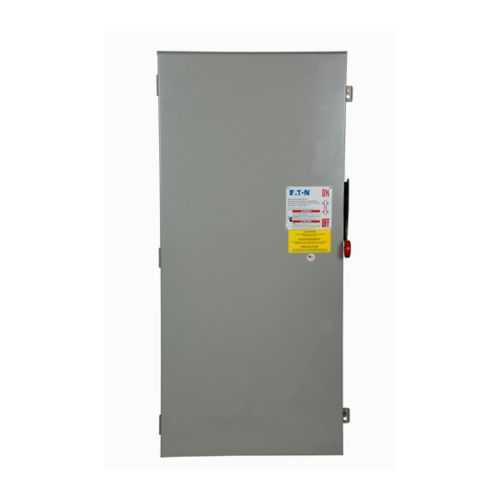

Eaton DG226FRK General Duty Cartridge Fuse Safety Switch - UL Listed
Part Number: DG226FRK
Quick Summary
Eaton DG226FRK general duty cartridge fuse safety switch protects feeders and motor circuits in industrial facilities. This helps mitigate unplanned downtime by delivering reliable isolation during maintenance and fault conditions. UL Listed certification and NEC 230.62 (C) compliant barrier support code adherence, while the rugged NEMA 3R enclosure withstands harsh environments. With its 600 A rating at 240 V, this safety switch integrates seamlessly into general duty power distribution, offering durable protection for critical processes while reducing maintenance complexity and total cost of ownership. The solution aligns with general duty safety switch applications, supports easy retrofits, and complements existing motor protection strategies for improved uptime and safety.
Product Information
Extended Description
DG226FRK Eaton: Eaton General duty cartridge fuse safety switch, 600 A, NEMA 3R, Painted galvanized steel, Class H fuses, Fusible without neutral, Two-pole, Two-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG226FRK
UPC
782114001974
Product Length/Depth
14.25 in
Product Height
52.7 in
Product Width
24 in
Product Weight
150 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used. Solid neutral bars are not included. Must be ordered separately.
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
General duty, cartridge fused
Amperage Rating
600A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DG226FRK
Selling Policy 25-000 - Distribution and Control Products and Services
Feature → Business Impact → Application: The DG226FRK delivers a 600 A amperage rating with Class H fuses, enabling robust protection for high-current feeders and motors, reducing fuse-related nuisance trips and equipment damage in demanding industrial environments. This translates to measurable uptime gains and safer isolation during maintenance across manufacturing lines and distribution panels. Feature → Business Impact → Application: The NEMA 3R enclosure, crafted from painted galvanized steel, provides weather-resistant protection suitable for outdoor or dusty indoor installations, lowering corrosion risk and extending service life in outdoor substations or yard installations. Feature → Business Impact → Application: Fusible without neutral, two-pole, two-wire configuration simplifies wiring and commissioning, enabling faster panel assembly and straightforward compatibility with existing control circuits in conveyors, pumps, and fans. Feature → Business Impact → Application: Compatibility notes indicate maximum HP ratings apply when dual element fuses are used, with solid neutral bars ordered separately, enabling tailored protection that matches motor horsepower and coordination requirements in machine rooms and switchgear closets. Feature → Business Impact → Application: The included warranty terms (one year from installation or eighteen months from shipment) provide business protection and predictable maintenance planning for procurement teams and maintenance engineers, reinforcing total cost of ownership considerations.
Get a Quick Quote for a Eaton DG226FRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG226FRK?
Enquire Now
FAQs
DG226FRK integrates into general duty switchgear and feeders with a 240V, two-pole configuration. Its fusible-without-neutral design accommodates typical control circuits, while the two-wire setup simplifies wiring. Be sure to verify enclosure size (NEMA 3R) and ensure available space for a 14.25 in depth, 24 in width, and 52.7 in height footprint. Neutral bars must be ordered separately if needed.
The DG226FRK delivers 600A amperage protection with Class H fuses, isolating circuits for safety and equipment protection. It is rated for 240V and includes a NEMA 3R weather-resistant enclosure. This configuration supports dependable fault isolation, reduces arc-flash exposure during maintenance, and helps achieve smoother startup and shutdown sequences in industrial applications.
Yes. The DG226FRK uses a NEMA 3R enclosure and painted galvanized steel, which provides weather resistance and corrosion protection suitable for outdoor panels, yards, or exposed locations. When installing outdoors, follow NEC barrier requirements and ensure proper mounting and drainage to maintain enclosure integrity and safety.
The DG226FRK is UL Listed, confirming independent safety certification, and it complies with NEC 230.62 (C) barrier requirements for safe, code-compliant installation. These certifications help ensure regulatory alignment in industrial facilities and support safer, compliant equipment protection.
The product carries Eaton’s warranty of one year from date of installation or eighteen months from shipment, whichever occurs first. For maintenance, schedule periodic inspections of fuse integrity, enclosure seals, and neutral-bar requirements (if ordered separately), and coordinate with your spare-part inventory to minimize downtime during fuse replacement or servicing.
