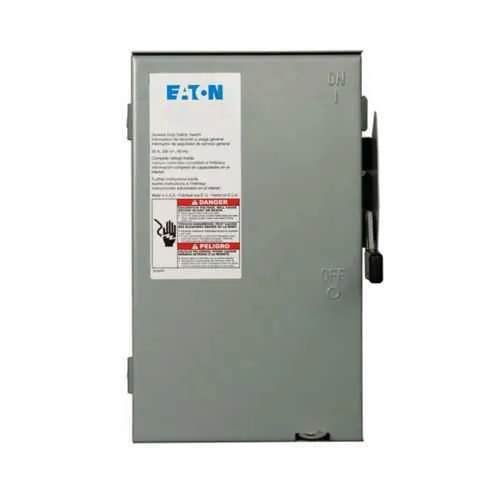

Eaton DG321FRB-CSA General Duty Fuse Safety Switch - CSA Certified
Part Number: DG321FRB-CSA
Quick Summary
Eaton DG321FRB-CSA general duty cartridge fuse safety switch provides reliable overcurrent protection for electrical panels and industrial equipment. Operators and maintenance teams often face downtime and compliance headaches when protection switches aren’t sized or rated for the application. CSA Certified, NEC 230.62 barrier compliant, and a NEMA 3R painted galvanized enclosure deliver rugged performance in harsh environments. Designed for 30 A, 240 V circuits using Class H fuses, this switch helps reduce risk, simplify procurement, and streamline service in general-duty safety-switch applications. This combination supports faster commissioning, lower total cost of ownership, and ongoing reliability in manufacturing lines, water treatment, and packaging equipment.
Product Information
Extended Description
DG321FRB-CSA Eaton: Eaton General duty cartridge fuse safety switch, 30 A, NEMA 3R, Painted galvanized steel, Class H fuses, Fusible without neutral, Three-pole, Three-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG321FRB-CSA
UPC
786685226835
Product Length/Depth
11.29 in
Product Height
6.25 in
Product Width
7.25 in
Product Weight
539 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
CSA Certified
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
General duty, cartridge fused
Amperage Rating
30A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Special features
CSA certified
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DH321FRB-CSA
With a 30A, 240V rating, the DG321FRB-CSA provides precise overcurrent protection for general-duty load centers. This specification minimizes nuisance trips and protects startup surges on conveyors, pumps, and fans, improving line uptime. Engineers can confidently specify this unit for control panels in manufacturing, material handling, and packaging lines. Three-pole, three-wire construction with fusible without neutral simplifies wiring and improves fault isolation in compact control panels. The device accommodates Class H fuses and clear labeling for safe replacement, reducing maintenance time and ensuring regulatory compliance. It is well-suited for three-phase motor drives and allied control circuits in medium-scale machinery. Durable NEMA 3R enclosure in painted galvanized steel provides weather resistance for outdoor or semi-exposed installations. The rugged enclosure lowers corrosion risk and maintenance costs while protecting sensitive components from dust, moisture, and impact. This makes the DG321FRB-CSA ideal for outdoor panels, remote machine enclosures, and harsh factory floors. CSA certification and NEC 230.62 barrier compliance support safety audits and procurement specs. The enclosure's corrosion resistance combined with CSA labeling helps meet regulatory requirements while simplifying supplier qualification. For engineers, this means fewer compliance questions and faster project approvals. Compatibility with standard panel layouts and a robust 539 lb form factor signals a trusted, heavy-duty solution for industrial environments. The cartridge fuse safety switch integrates smoothly with existing wiring schemes and spare fuse inventories, reducing installation time and stock carry costs. In practice, this translates to lower total cost of ownership and reliable service life across multiple shifts.
Get a Quick Quote for a Eaton DG321FRB-CSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG321FRB-CSA?
Enquire Now
FAQs
DG321FRB-CSA installs as a three-pole, three-wire safety switch with fusible without neutral configuration, designed for general-duty panels. It fits standard NEMA 3R enclosures and accepts 30A Class H fuses at 240V. Plan for three-wire terminations, proper mounting clearances, and compatible bus bars; please ensure the neutral is not required and use lifting equipment due to the unit’s weight.
The device features a 30A amperage rating and 240V voltage rating in a three-pole configuration with fusible without neutral. It uses Class H fuses and supports a 3-wire, 3-pole setup. This combination provides reliable protection for three-phase loads while enabling straightforward fuse replacement and safe operation in general-duty safety-switch applications.
Yes. The DG321FRB-CSA comes in a NEMA 3R enclosure with painted galvanized steel, designed for indoor and outdoor exposure. Its enclosure and corrosion-resistant construction withstand dust, moisture, and incidental impacts, making it appropriate for outdoor panels, remote machine enclosures, and tough factory floors where dependable protection is essential.
This switch is CSA certified and NEC 230.62 barrier compliant, aligning with safety standards and installation codes. The CSA labeling supports regulatory audits and supplier qualification, while the NEC barrier ensures safe separation between live parts and conductors in panel assemblies.
Eaton offers a one-year warranty from installation or eighteen months from shipment. The 30A/240V rating, rugged enclosure, and standardized Class H fuse provisions reduce downtime, simplify maintenance, and lower long-term ownership costs by streamlining stocking and replacements in general-duty safety-switch installations.
