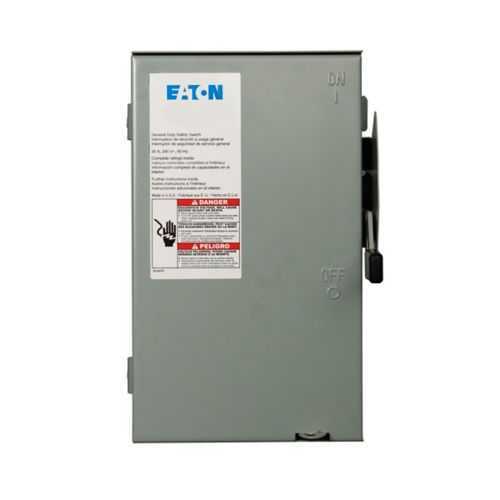

Eaton DG321URB General duty safety switch - UL Listed
Part Number: DG321URB
Quick Summary
The Eaton DG321URB general duty non-fusible safety switch delivers reliable control for three-pole, 30 A circuits in industrial panels. Engineers often struggle with downtime, space constraints, and ensuring service entrances meet code, and this unit helps mitigate those challenges with a rugged, easy-to-install design. UL Listed protection and a NEMA 3R rainproof enclosure, combined with NEC 230.62 barrier compliance, offer robust safety in harsh environments. Its compact footprint and straightforward wiring deliver tangible business value by reducing panel space, enabling quicker maintenance, and lowering lifecycle costs for general-duty distribution and control applications.
Product Information
Extended Description
DG321URB Eaton: Eaton General duty non-fusible safety switch, single-throw, 30 A, Rainproof, Painted galvanized steel, NEMA 3R, Three-pole, Three-wire, 240 V
Product Name
Eaton general duty non-fusible safety switch
Catalog Number
DG321URB
UPC
782113120287
Product Length/Depth
6.88 in
Product Height
10.81 in
Product Width
6.38 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Number Of Poles
Three-pole
Number of wires
3
Type
Non-fusible, single-throw
Amperage Rating
30A
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DG321URB
Feature → Business Impact → Application: General duty non-fusible design enables simple disconnection and maintenance, reducing nuisance trips and enabling faster, safer servicing in routine control circuits for manufacturing lines and packaging operations. This translates to lower downtime and predictable maintenance budgets in general distribution panels. Feature → NEMA 3R rainproof enclosure with painted galvanized steel offers weather resistance and corrosion protection, delivering reliable operation in outdoor or damp locations, including loading docks and weather-exposed panels. This protects critical control wiring and improves uptime in facilities with variable environmental conditions. Feature → Three-pole, three-wire configuration rated at 30 A and 240 V supports standard motor control and line-side disconnects, delivering clear wiring paths and compatibility with common conduit runs in plant electrical rooms and switchgear cabinets. Product weight of 6 lb and compact dimensions (6.88 in depth, 10.81 in height, 6.38 in width) provide a space-saving footprint that simplifies retrofit projects and new panel builds. Feature → Non-fusible, single-throw operation offers straightforward operation and reduced inventory of replacement fuses, streamlining training and maintenance workflows for maintenance teams. Feature → UL Listed with NEC 230.62 barrier compliance ensures compliance and safe integration into compliant electrical assemblies, minimizing risk during audits and enabling faster approvals in project documentation. Feature → Neutral kit compatibility note clarifies service-entrance suitability, ensuring correct installation practice and preventing costly rework; this supports engineers designing service disconnects for main distribution with confidence. Insight: In real-world installations, these switches are favored for their ease of procurement, predictable performance, and compatibility with standard panel enclosures, contributing to measurable project savings and reduced commissioning time.
Get a Quick Quote for a Eaton DG321URB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG321URB?
Enquire Now
FAQs
The DG321URB requires a neutral kit when used as a service entrance, as noted in the catalog. Plan for proper kit installation to meet NEC requirements and ensure safe, code-compliant disconnects. Verify enclosure clearance, proper conduit routing, and that the barrier is maintained during installation to prevent access to live parts.
Yes. It features a NEMA 3R rainproof enclosure with painted galvanized steel, designed to withstand outdoor and damp environments. This construction helps protect internal components from weather elements, reducing maintenance cycles and extending service life in outdoor panels and exposed installations.
The DG321URB is a three-pole, three-wire, non-fusible, single-throw switch rated for 30 A at 240 V. Use standard 30 A conductors and follow proper wiring practices for three-phase control circuits. Ensure correct lugs and terminal torque per manufacturer guidelines to maintain electrical integrity.
The unit is UL Listed and designed to comply with NEC 230.62 barrier requirements. It is housed in a NEMA 3R enclosure, which supports safe operation in indoor and outdoor environments. Follow local codes and NEC provisions when integrating into panels or service equipment.
With a rugged galvanized steel enclosure and a non-fusible design, downtime is reduced due to simplified maintenance and quicker servicing. The unit’s 6 lb weight and compact dimensions ease installation, while the 1 year warranty (or 18 months from shipment) provides a clear maintenance window, contributing to lower lifecycle costs and predictable ROI for general-duty safety switching in manufacturing and distribution environments.
