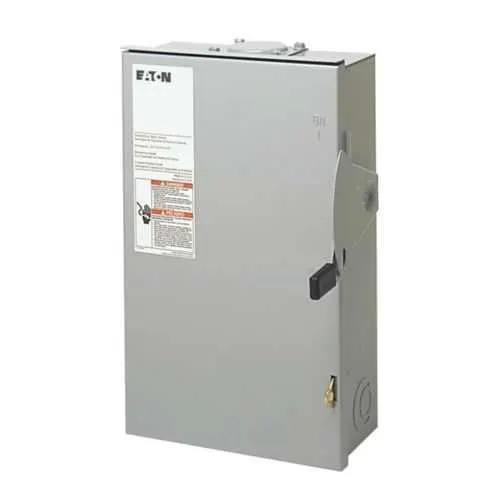

Eaton DG322FRB-CSA General Duty Safety Switch CSA
Part Number: DG322FRB-CSA
Quick Summary
Eaton DG322FRB-CSA general duty safety switch protects motor circuits in industrial panels. This unit addresses downtime caused by unreliable safety barriers and nonconforming components. It carries CSA certification, NEC 230.62(C) compliant barrier, and a NEMA 3R enclosure for rugged outdoor or harsh indoor environments. With 60 A at 240 V, three-pole operation, fusible without neutral, and Class H fuse compatibility, it supports reliable, code-compliant switching. Designed for straightforward installation and service, it offers strong value for panel builders and maintenance teams seeking uptime, easier spare-part management, and scalable protection for evolving electrical infrastructure.
Product Information
Extended Description
DG322FRB-CSA Eaton: Eaton General duty cartridge fuse safety switch, 60 A, NEMA 3R, Painted galvanized steel, Class H fuses, Fusible without neutral, Three-pole, Three-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG322FRB-CSA
UPC
786685226842
Product Length/Depth
14.8 in
Product Height
14.37 in
Product Width
9.7 in
Product Weight
9.63 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
CSA Certified
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
General duty, cartridge fused
Amperage Rating
60A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Special features
CSA certified
Feature → Business Impact → Application: General duty cartridge fused design provides reliable power control (60A, 240V) in a compact general duty switch. This translates to improved protection for motor circuits and reduced nuisance trips, helping maintenance teams run preventive maintenance without uncovering safety gaps. In industrial controls, the three-pole, three-wire configuration simplifies wiring and supports standard panel layouts. Feature → Business Impact → Application: NEMA 3R enclosure in painted galvanized steel delivers dependable protection from dust, rain, and incidental contact, extending service life in outdoor or damp environments. The CSA certification and NEC 230.62(C) barrier improve regulatory compliance and shop-floor safety audits, removing guesswork during inspections. It supports easy mounting alongside other Eaton devices and compatible Class H fuses, reducing spare-part inventories. Feature → Business Impact → Application: Fusible without neutral design and 60A rating enable selective coordination and simplified fuse management in general duty safety switches. This reduces total cost of ownership by eliminating unnecessary neutral conductors and optimizing fuse replacement intervals. The robust enclosure dimensions (14.8 in L x 14.37 in H x 9.7 in W) fit standard racks, enabling faster integration into existing panels. Feature → Business Impact → Application: CSA certification and the included warranty and support simplify procurement and after-sales service, with a one-year warranty from installation or eighteen months from shipment, whichever occurs first, reducing risk during commissioning and future upgrades.
Get a Quick Quote for a Eaton DG322FRB-CSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG322FRB-CSA?
Enquire Now
FAQs
Power must be off before installation. Mount the unit in a NEMA 3R enclosure, connect the three wires to the appropriate terminals, ensure the fusible without neutral configuration is correct, and secure Class H fuses as specified. Verify the NEC barrier remains intact and test the switch after installation to confirm proper operation.
Key specs include 60 A amperage, 240 V voltage rating, three-pole / three-wire configuration, fusible without neutral, NEMA 3R enclosure, painted galvanized steel, Class H fuses, CSA certification, and 14.8 in L x 14.37 in H x 9.7 in W dimensions with a 9.63 lb weight. UPC is 786685226842 and catalog number is DG322FRB-CSA.
Yes. The enclosure uses a NEMA 3R rating suitable for outdoor or damp locations, and NEC 230.62(C) compliant barriers help ensure regulatory alignment during installations and inspections. The CSA certification further supports compliance across manufacturing and service panels in industrial settings.
The product carries Eaton’s warranty policy 25-000, offering one year from the date of installation or eighteen months from shipment, whichever occurs first. This protection reduces lifecycle risk, supports maintenance planning, and complements Eaton’s technical support and availability of spare parts.
Class H fuses provide fast-acting protection with high interrupting rating, enabling reliable coordination for motor circuits. With fusible without neutral design, the DG322FRB-CSA simplifies fuse management, reduces unnecessary neutral conductors, and helps maintain selective protection without compromising system safety or compliance.
