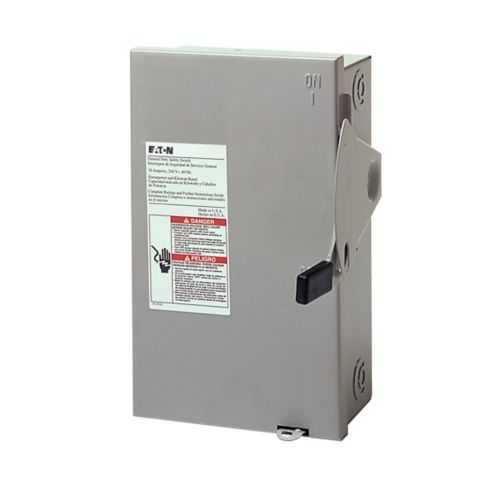

Eaton DG322NGBP General duty safety switch - UL Listed
Part Number: DG322NGBP
Quick Summary
The Eaton DG322NGBP is a general duty cartridge fuse safety switch for electrical control panels. Engineers often face nuisance trips and wiring errors when integrating fuses and switches separately, impacting downtime. This unit is UL Listed and designed for NEC 230.62 compliant barriers in NEMA 1 steel enclosures. Designed for general duty safety switching, it supports streamlined upgrades, simplified installation, and reliable protection for 240 V circuits. With factory-assembled wiring and a robust NEMA 1 enclosure, it reduces on-site labor and protects against dust and accidental contact. UL listing, NEC compliance, and Class H fuse compatibility help maintenance teams meet regulatory deadlines while keeping downtime to a minimum.
Product Information
Extended Description
DG322NGBP Eaton: Eaton General duty cartridge fuse safety switch, 60 A, NEMA 1, Class H fuses, Painted steel, Fusible with neutral, Three-pole, Four-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG322NGBP
UPC
786685952789
Product Length/Depth
7.35 in
Product Height
13.93 in
Product Width
8.4 in
Product Weight
10 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
General duty, cartridge fused
Amperage Rating
60A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Special features
Retail packaging
Feature: Three-pole, four-wire configuration with fusible neutral is packaged in a single NEMA 1 enclosure. Business Impact: Simplifies control wiring, reduces panel footprint, and minimizes mis-wiring risk during panel assembly. Application: Ideal for 60 A, 240 V general-duty control in motor drives and light-to-medium industrial equipment. Paragraph two highlights rugged steel enclosure improvements. Feature: Painted steel, NEMA 1 enclosure, providing dust protection and moisture resistance in shop and factory floors. Business Impact: Extends service life, lowers maintenance cost, and improves operator safety. Application: Panels located in environments with particulate exposure. Feature: UL Listed with NEC 230.62 barrier compliance for regulatory confidence. Business Impact: Reduces certification delays and compliance risk, facilitating faster project commissioning. Application: Electrical installations requiring safe barriers and recognized certification. Feature: 60 A rating and 240 V operation with Class H fuse compatibility. Business Impact: Supports controlled inrush and reliable protection for motor and equipment loads, reducing nuisance trips with proper fuse selection. Application: Motor control panels and general duty circuits in manufacturing. Feature: One-year warranty or eighteen months from shipment under Eaton policy. Business Impact: Provides procurement confidence, predictable maintenance budgeting, and rapid part replacement, improving total cost of ownership. Application: Facility upgrades and long-term asset management across industrial plants.
Get a Quick Quote for a Eaton DG322NGBP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG322NGBP?
Enquire Now
FAQs
The DG322NGBP is a three-pole, four-wire device with fusible neutral designed for 240 V circuits and a NEMA 1 painted steel enclosure. Installers should mount the unit in a suitable panel space, connect three phase lines plus neutral, and ensure proper grounding. Its UL Listed status and NEC 230.62 barrier compliance aid in meeting electrical codes and installation best practices.
DG322NGBP is rated for 60 A at 240 V and uses Class H fuses with a fusible neutral configuration. The device is designed to work with dual-element fuses for maximum horsepower ratings when required, aligning with catalog notes. This combination supports reliable protection for medium-duty motor and control circuits while minimizing nuisance trips when sized correctly.
Yes. As a general duty cartridge fuse safety switch, the DG322NGBP is well-suited for motor control panels and general lighting circuits in industrial settings. Its three-pole, four-wire design with fusible neutral simplifies wiring, while the 60 A / 240 V rating handles typical motor and control loads. For optimal hp ratings, dual-element fuses should be used as noted in the catalog.
The DG322NGBP is UL Listed and features NEC 230.62 compliant barriers in a NEMA 1 painted steel enclosure. It carries a 240 V voltage rating and a 60 A amperage rating with Class H fuse compatibility. These certifications and standards help ensure safe operation, code compliance, and straightforward procurement for regulated environments.
The DG322NGBP offers a one-year warranty (or eighteen months from shipment, per Eaton policy), along with robust enclosure protection and integrated protection-switching. This reduces spare part inventory and maintenance complexity, shortens downtime during replacements, and supports long-term asset reliability in manufacturing and process facilities.
