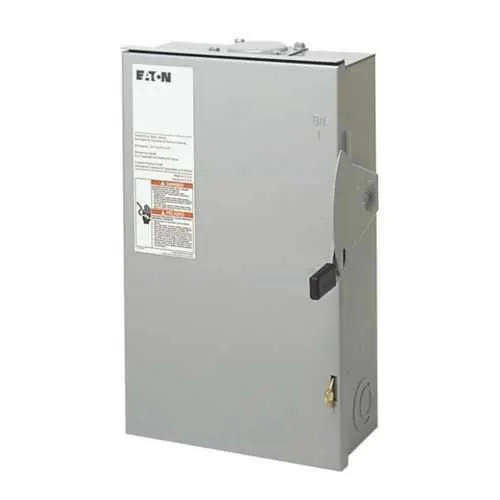

Eaton DG322NRBP General Duty Fuse Switch - UL Listed
Part Number: DG322NRBP
Quick Summary
Eaton DG322NRBP is a general duty cartridge fuse safety switch for reliable control in commercial and light-industrial panels. Engineers face downtime and maintenance costs from fuse faults and challenging field wiring in control panels. UL Listed certification and NEC-compliant barriers in a NEMA 3R enclosure support safe, code-compliant installations. This design pairs with dual-element fuses for higher reliability, reducing replacement cycles and improving panel uptime. For procurement teams, the unit ships in retail packaging and aligns with Eaton's warranty and support programs. Whether upgrading existing panels or deploying new ones, the DG322NRBP streamlines installation with a compact footprint and clear wiring access. The design supports future reliability goals, helping OEMs meet uptime SLAs and reduce total cost of ownership over the system lifetime.
Product Information
Extended Description
DG322NRBP Eaton: Eaton General duty cartridge fuse safety switch, 60 A, NEMA 3R, Painted steel, Class H fuses, Fusible with neutral, Three-pole, Four-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG322NRBP
UPC
786685952772
Product Length/Depth
7.35 in
Product Height
14.37 in
Product Width
8.4 in
Product Weight
9.68 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used
Enclosure
NEMA 3R
Enclosure material
Painted steel
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
General duty, cartridge fused
Amperage Rating
60A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Special features
Retail packaging
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DG322NRBP
Selling Policy 25-000 - Distribution and Control Products and Services
60 A at 240 V with Class H fuses provides robust overcurrent protection for motor loads and control circuits. The business impact is fewer fuse failures and less downstream equipment damage, translating to lower maintenance costs and shorter unplanned downtime. In practice, this aligns with typical industrial control panels and light-duty MCCs that demand reliable protection without unnecessary complexity. Fusible with neutral simplifies wiring and fault isolation. The business impact is safer maintenance and clearer fault paths, enabling faster service windows and reduced risk during disconnections. This is especially valuable in panels feeding three-phase loads with shared neutrals in manufacturing lines and packaging equipment. NEMA 3R painted-steel enclosure offers weather-resistant protection. The business impact is outdoor and damp-location applicability, improving uptime in facilities with exposed panels and reducing enclosure corrosion concerns. This supports consistent performance across plant floors, outdoor substations, and exterior enclosures. Three-pole, four-wire configuration supports standard three-phase distribution with a neutral. The business impact is compatibility with common motor starters and panel buses, enabling straightforward installation and expansion in new builds and retrofits. This reduces engineering time and avoids custom wiring harnesses. UL Listed certification and catalog notes ensure compliance and predictable performance. The business impact is smoother approvals, lower risk audits, and straightforward sourcing through Eaton channels. The note that maximum horsepower ratings apply only with dual-element fuses helps prevent over-specification and protects equipment life. Retail packaging and documented warranty offer practical procurement and post-sale support. The business impact includes easier stocking, faster replacements, and clear service windows, contributing to lower total cost of ownership in distributed control systems.
Get a Quick Quote for a Eaton DG322NRBP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG322NRBP?
Enquire Now
FAQs
Install DG322NRBP in a standard three-pole, four-wire panel space designed for general duty safety switches. Mount the unit securely, connect the three hot leads and neutral to the fusible neutral terminals, and ensure adequate clearance for maintenance. Use NEC barriers and follow local disconnecting means requirements. Refer to Eaton's specification sheet for wiring diagrams and torque specs.
DG322NRBP is rated for 60A at 240V, uses Class H fuses, and is fusible with neutral. It is a three-pole, four-wire switch in a NEMA 3R painted steel enclosure. It is UL Listed and designed to integrate with standard control panels, MCCs, and distribution blocks. Ensure dual-element fuses when higher hp ratings are required.
Yes. The DG322NRBP is rated for NEMA 3R enclosures, which provide rain and corrosion resistance for outdoor or damp indoor locations. The painted steel enclosure is designed to withstand typical plant environments, and proper sealing plus standard installation practices will maintain performance. Always verify ambient temperature and enclosure size for site conditions.
DG322NRBP carries UL Listed certification and NEC 230.62 barrier compliance within a NEMA 3R enclosure. It also notes compatibility with general duty safety switch requirements and a warranty policy of one year from installation or eighteen months from shipment. These certifications help streamline approvals, inspections, and ongoing maintenance.
Using the DG322NRBP can reduce downtime and maintenance costs by providing reliable protection and easy fault isolation. The device supports dual-element fuses for higher hp ratings, enabling longer service intervals, and its compact footprint simplifies panel layouts. Sourcing through Eaton and documented warranty support further lowers total cost of ownership in distributed control systems.
