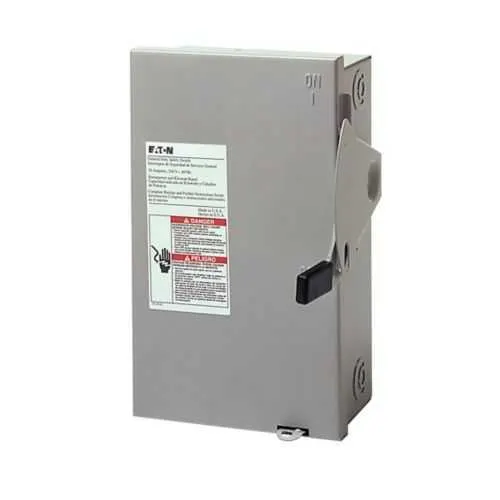

Eaton DG323NGBP General duty safety switch - UL Listed
Part Number: DG323NGBP
Quick Summary
The Eaton DG323NGBP is a general-duty cartridge fuse safety switch for motor and power-distribution applications. Maintenance downtime and costly nuisance trips occur when safety devices don’t coordinate fuse elements or fail to isolate circuits cleanly. UL Listed, NEC-compliant barrier, and a NEMA 1 painted-steel enclosure support reliable indoor protection. With 100 A rating, fusible with neutral configuration, and 240 V operation, it suits general duty safety-switch needs. Using this unit can improve uptime, simplify maintenance, and help meet applicable electrical codes while offering scalable motor-control protection. Serviceability is straightforward with a compact footprint and industry-standard dimensions, reducing installation risk. This combination of features translates to predictable disposal and safer energy management in plant environments.
Product Information
Extended Description
DG323NGBP Eaton: Eaton General duty cartridge fuse safety switch, 100 A, Painted steel, Class H fuses, Fusible with neutral, Three-pole, Four-wire, NEMA 1, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG323NGBP
UPC
786685952819
Product Length/Depth
7.36 in
Product Height
18.81 in
Product Width
8.82 in
Product Weight
13.96 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
General duty, cartridge fused
Amperage Rating
100A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Special features
Retail packaging
Feature: 100 A amperage rating with a three-pole, four-wire enclosure and fusible with neutral configuration. Business Impact: Enables safe, code-compliant isolation for medium-current motor loads, reduces arc flash risk, and coordinates with Class H fuses for predictable protection. Application: Ideal for general duty safety switch installations in MCCs and power-distribution panels where reliable disconnects are critical. Feature: 240 V voltage rating and NEMA 1 painted-steel enclosure. Business Impact: Robust indoor protection against dust and incidental contact, simplifying installation in electrical rooms or workshops. Application: Suitable for indoor motor control and light industrial distribution where rugged enclosure integrity matters. Feature: UL Listed and NEC 230.62 (C) compliant barrier. Business Impact: Streamlines regulatory approvals, lowers commissioning time, and supports compliant safety practices. Application: Regulated facilities and OEM installations require verified certifications for safety and reliability. Feature: Fuse configuration—Class H fuses with neutral. Business Impact: Enables proper fuse coordination for motor-start and braking applications, reducing nuisance trips and extending equipment life. Application: Works with dual-element fuses where hp ratings depend on fuse type, ensuring scalable protection. Feature: General duty, cartridge-fused design with retail packaging. Business Impact: Simple replacement and straightforward procurement, minimizing maintenance downtime. Application: Indoor electrical assemblies, service panels, and retrofit projects benefit from easy stocking and quick field swaps. Feature: Warranty and compatibility notes. Business Impact: One-year warranty from installation or eighteen months from shipment enhances lifecycle planning and service budgeting. Application: Helps maintenance teams plan spares and ensures long-term reliability in plant systems.
Get a Quick Quote for a Eaton DG323NGBP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG323NGBP?
Enquire Now
FAQs
DG323NGBP is a three-pole, four-wire, 100 A safety switch designed for indoor general duty use. It fits standard panels with appropriate enclosure openings and supports fusible with neutral configurations. When replacing older devices, verify the 240 V supply, NEMA 1 enclosure, and mounting patterns to ensure mounting accuracy and safe wiring terminations.
The unit utilizes Class H fusible elements with a neutral, enabling proper fuse coordination for motor-start and fault conditions. This coordination minimizes nuisance trips, maintains service continuity for non-fault loads, and preserves downstream protection. Ensure dual-element fuse selections match hp ratings per catalog notes to optimize performance.
Yes. With a NEMA 1 painted-steel enclosure and a 240 V rating, this general-duty safety switch is well-suited for indoor motor control applications and HVAC equipment. The three-pole, four-wire configuration provides clean isolation for essential service panels, enabling reliable operation in standard indoor environments.
The DG323NGBP is UL Listed and features NEC 230.62 (C) compliant barrier for safe isolation. It uses a NEMA 1 enclosure suitable for indoor use and meets general-duty safety-switch standards. These certifications support compliant installation in regulated facilities and simplify the approval process during audits.
The product carries a one-year warranty from installation or eighteen months from shipment, whichever comes first. Maintenance considerations include straightforward field replacement of fused elements and standard spare parts. The unit’s compatibility with Class H fuses and simple retail packaging help minimize downtime and spare-part inventory costs.
