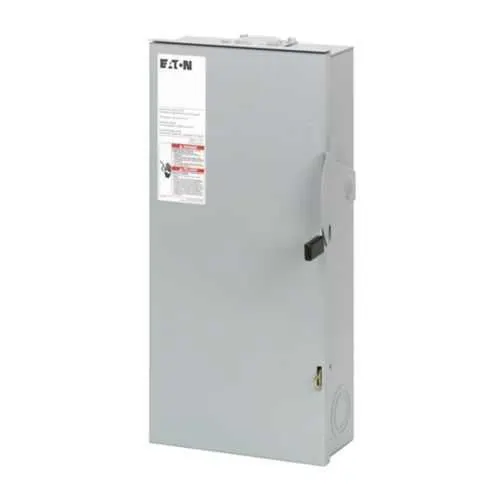

Eaton DG323NRB General Duty Cartridge Fuse Safety Switch - UL Listed
Part Number: DG323NRB
Quick Summary
The Eaton DG323NRB General duty cartridge fuse safety switch provides reliable three‑phase protection for industrial control panels. Engineers often struggle coordinating fused disconnects with space constraints and stringent NEC requirements. UL Listed, NEC 230.62 barrier compliant, and a NEMA 3R enclosure help ensure safety and reliability across indoor and outdoor installations. This product integrates Class H fuses, a fusible-with-neutral configuration, and 240 V operation to support fast installation and long-term maintenance. By aligning with dual-element fuse guidance when appropriate, it also enables scalable protection without compromising compliance or reliability.
Product Information
Extended Description
DG323NRB Eaton: Eaton General duty cartridge fuse safety switch, 100 A, NEMA 3R, Painted galvanized steel, Class H fuses, Fusible with neutral, Three-pole, Four-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG323NRB
UPC
782113144351
Product Length/Depth
7.38 in
Product Height
19.25 in
Product Width
9.13 in
Product Weight
14 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
General duty, cartridge fused
Amperage Rating
100A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DG323NRB
Feature: Three-pole, four-wire design with fusible neutral. Business Impact: Ensures complete circuit disconnection and safe energization of controlled loads, reducing risk of arc flash and equipment damage. Application: Ideal for motor control centers and general duty safety switch installations in industrial panels.Feature: NEMA 3R enclosure with painted galvanized steel. Business Impact: Provides weather-resistant protection for outdoor equipment and harsh environments, lowering corrosion risk and downtime. Application: Outdoor switchgear, service entrances, and outdoor control panels.Feature: 100 A amperage rating at 240 V with Class H fuses. Business Impact: Delivers reliable short-circuit and overload protection with selective coordination for motors and feeders, supporting energy efficiency and lifecycle cost reduction. Application: Industrial power distribution and process automation systems.Feature: UL Listed and NEC 230.62 barrier compliance. Business Impact: Streamlines regulatory approvals, accelerates commissioning, and reduces verification efforts during audits. Application: Plantwide safety compliance in manufacturing facilities and commercial buildings.Feature: Fusible with neutral and compatibility with dual-element fuses (hp ratings varying by fuse configuration). Business Impact: Enables accurate hp ratings for motor loads while maintaining safe switching and protection margins. Application: Motor protection in heavy-duty applications and compliant system upgrades.
Get a Quick Quote for a Eaton DG323NRB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG323NRB?
Enquire Now
FAQs
The DG323NRB is designed as a three-pole, four-wire safety switch with fusible neutral, suited for standard industrial panels and motor control centers. Mounting should follow the enclosure’s NEMA 3R rating for outdoor use, with proper wiring to the 240V supply and Class H fuses. Ensure clear access for maintenance and field wiring per NEC guidelines to support safe operation and compliance.
The DG323NRB provides a 100A amperage rating, 240V voltage rating, and uses Class H fuses with a fusible neutral configuration. It is a three-pole, four-wire device housed in a NEMA 3R enclosure and is UL Listed. The product supports dual-element fuse configurations for hp ratings as noted in the catalog, enabling scalable protection for motor and load circuits.
Yes. The DG323NRB uses a NEMA 3R enclosure made of painted galvanized steel, designed for outdoor and harsh environments. This construction provides weather resistance, corrosion protection, and reliable operation in exposed electrical installations, aligning with industrial outdoor protection requirements.
The DG323NRB is UL Listed and complies with NEC barrier requirements under NEC 230.62. These certifications support safe operation, easier approval during audits, and assurance that the unit meets recognized safety standards for general duty safety switches used in 240V, three‑phase systems.
By integrating a general duty safety switch with fusible neutral and UL-listed protection, the DG323NRB reduces wiring complexity and downtime during fuse replacements. Its durable NEMA 3R enclosure and compatibility with dual-element fuses help extend service intervals, simplify regulatory compliance, and lower total cost of ownership in industrial power distribution and motor protection applications.
