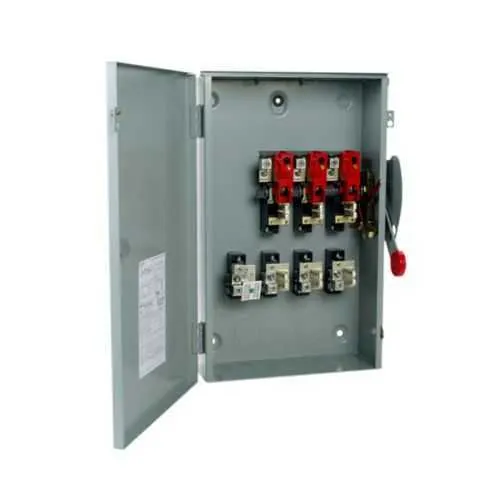

Eaton DG324FRK-CSA General Duty Safety Switch - CSA
Part Number: DG324FRK-CSA
Quick Summary
Eaton DG324FRK-CSA is a general duty cartridge fuse safety switch for panel protection in industrial electrical systems. End users often face downtime when protection devices complicate fuse changes or fail to meet code requirements. This unit carries CSA certification and NEC 230.62 (C) compliant barrier, plus a NEMA 3R enclosure for versatile indoor or outdoor use. With a 200 A rating at 240 V and a three-pole design, it simplifies installation while enhancing safety margins. By combining rugged construction with standard protection features, it supports faster maintenance, predictable compliance, and improved reliability across critical power feeds.
Product Information
Extended Description
DG324FRK-CSA Eaton: Eaton General duty cartridge fuse safety switch, 200 A, NEMA 3R, Painted galvanized steel, Class H fuses, Fusible without neutral, Three-pole, Three-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG324FRK-CSA
UPC
786685226866
Product Length/Depth
15.91 in
Product Height
24.77 in
Product Width
15.52 in
Product Weight
55 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
CSA Certified
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
General duty, cartridge fused
Amperage Rating
200A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Special features
CSA certified
Feature: General duty cartridge fuse safety switch with fusible without neutral. Business Impact: Reduces spare part variety and simplifies maintenance logistics, lowering total cost of ownership. Application: General electrical protection in industrial panels where ease of fuse replacement is essential. Feature: 200 A, 240 V rating. Business Impact: Supports mid-range distribution circuits with robust protection, enabling safer operation and reduced voltage drop concerns. Application: Medium-power panelboards and control circuits. Feature: Three-pole, three-wire configuration in a NEMA 3R painted galvanized steel enclosure. Business Impact: Ensures safe, accessible switching with barrier protection in diverse environments, lowering risk of arc flash incidents. Application: Outdoor or damp indoor installations requiring durable housing. Feature: Class H fuses and fusible without neutral. Business Impact: Simplifies stock planning while delivering reliable overcurrent protection, helping meet electrical codes. Application: Motor loads and general duty service where neutral is not required. Feature: CSA certified, NEC compliant barrier. Business Impact: Streamlines compliance documentation and audit readiness, reducing project risk. Application: Facilities governed by strict standards and safety regulations. Feature: Clear dimensions and weight (15.91 in depth, 24.77 in height, 15.52 in width, 55 lb). Business Impact: Facilitates accurate space planning and retrofits within existing enclosures. Application: Equipment rooms and retrofit projects with strict footprint constraints.
Get a Quick Quote for a Eaton DG324FRK-CSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG324FRK-CSA?
Enquire Now
FAQs
The DG324FRK-CSA is a general duty, three-pole cartridge fuse safety switch rated for 200 A at 240 V and designed for use with Class H fuses. It features fusible without neutral configuration, making it suitable for standard industrial panels that require straightforward overcurrent protection without a neutral conductor. It integrates with common Eaton and third-party panelboard ecosystems that support three-wire, three-pole protection.
Key specifications include a 200 A amperage rating, 240 V voltage rating, three-pole configuration, and fusible without neutral. The enclosure is NEMA 3R, made of painted galvanized steel, providing durable protection for indoor and outdoor environments. The unit weighs 55 lb and has dimensions of 15.91 in (depth) × 24.77 in (height) × 15.52 in (width). CSA certification and NEC barrier compliance support code adherence.
Yes. The DG324FRK-CSA uses a NEMA 3R enclosure, which is designed for indoor or outdoor use and offers protection against rain and other elements. The painted galvanized steel enclosure provides a rugged housing suitable for general duty safety switch applications in facilities requiring reliable protection against environmental exposure.
This Eaton unit is CSA certified and includes an NEC 230.62 (C) compliant barrier, supporting safe, code-compliant installations. These certifications help with compliance documentation, inspections, and meeting facility safety standards, reducing the effort required during audits and procurement reviews.
Choosing the DG324FRK-CSA offers standardized protection with Class H fuses and a fusible without neutral configuration, simplifying spare parts planning and maintenance routines. The CSA certification and documented warranty (one year from installation or 18 months from shipment) provide assurance and a predictable support window, contributing to lower downtime and easier vendor support when planning replacements or upgrades.
