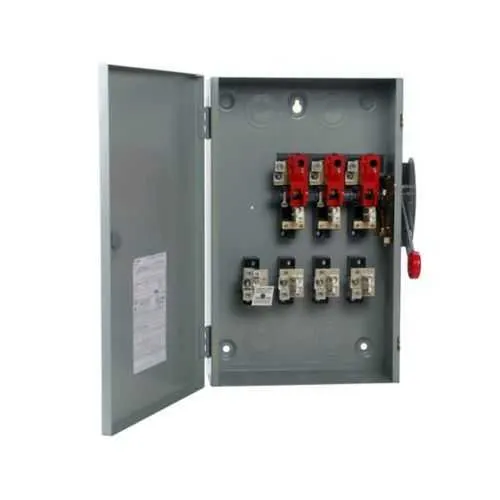

Eaton DG324NGK General-Duty Safety Switch - UL Listed
Part Number: DG324NGK
Quick Summary
DG324NGK General-Duty Safety Switch protects electrical circuits in industrial panels up to 200 A. It is designed for general purpose applications where reliable disconnect and protection is required. This solution simplifies maintenance with a fusible switch that includes a neutral, reducing wiring complexity and downtime. UL Listed and NEC 230.62 (C) compliant barrier provide critical certifications for safe operation, while the NEMA 1 painted steel enclosure protects against dust and incidental impact in indoor environments. For expanding power needs, the device supports dual-element fuses to achieve higher hp ratings per catalog notes, and it pairs well with standard low-voltage distribution and control panels, delivering cost-effective protection.
Product Information
Extended Description
DG324NGK Eaton: Eaton General duty cartridge fuse safety switch, 200 A, NEMA 1, Painted steel, Class H fuses, Fusible with neutral, Three-pole, Four-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG324NGK
UPC
782113213538
Product Length/Depth
11.25 in
Product Height
24.75 in
Product Width
16 in
Product Weight
48 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
General duty, cartridge fused
Amperage Rating
200A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DG324NGK
Selling Policy 25-000 - Distribution and Control Products and Services
Feature → Business Impact → Application: The DG324NGK combines a 200 A, 240 V three-pole, four-wire configuration with a fusible-with-neutral design, reducing wiring complexity and potential miswiring while delivering robust overload protection for general-duty circuits in industrial panels. This translates to lower installation costs, faster commissioning, and improved uptime in motor control and distribution applications. Feature → Business Impact → Application: The NEMA 1 painted steel enclosure provides indoor protection against dust and minor impacts, enabling reliable operation in plant control rooms and electrical closets without enclosure add-ons. Feature → Business Impact → Application: UL Listed certification and NEC 230.62 (C) compliant barrier support regulatory compliance, simplifying approvals for code compliance and reducing risk during audits in commercial facilities. Feature → Business Impact → Application: Class H fuses with neutral support safe disconnects for circuits requiring fuse protection, while catalog notes on dual-element fuses offer higher hp ratings when needed, enabling scalable protection for evolving equipment loads. Feature → Business Impact → Application: Warranty alignment with Eaton policies (one year from installation or 18 months from shipment) provides predictable service expectations and lowers total cost of ownership over the product life cycle.
Get a Quick Quote for a Eaton DG324NGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG324NGK?
Enquire Now
FAQs
The DG324NGK is a three-pole, four-wire general duty safety switch designed for indoor use in a NEMA 1 painted steel enclosure. It integrates a fusible-with-neutral arrangement suitable for standard low-voltage distribution panels and motor control centers, simplifying retrofits and new installations alike.
Key specs include a 200 A amperage rating, 240 V voltage rating, three-pole configuration, four wires, and fusible-with-neutral operation using Class H fuses. The device supports dual-element fuses per catalog notes to achieve higher hp ratings when required.
Yes, the DG324NGK is UL Listed and includes NEC 230.62 (C) compliant barriers, ensuring safe, code-compliant installations. These certifications help streamline approvals in many industrial and commercial facilities.
Catalog notes indicate maximum horsepower ratings apply only when dual-element fuses are used. This means you can increase protection and accommodate higher loads if you select the appropriate dual-element fuses, improving overall system performance.
The DG324NGK falls under Eaton’s policy 25-000, with a one-year warranty from the date of installation or eighteen months from shipment, whichever occurs first. This provides coverage for manufacturing defects and helps protect ROI during early operation and commissioning.
