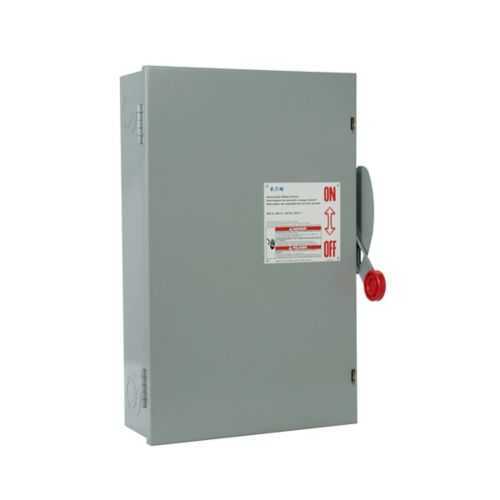

Eaton DG324NGKP General Duty Fuse Safety Switch UL Listed
Part Number: DG324NGKP
Quick Summary
DG324NGKP general duty fuse safety switch provides safe isolation for medium-size electrical feeders in commercial and light industrial environments. Facility downtime and compliance risk rise when safety devices are undersized, miswired, or difficult to service. It carries UL Listed certification, NEC 230.62 compliant barrier, and a NEMA 1 painted steel enclosure for dependable indoor use. Designed for general duty safety switch applications with cartridge fuses and neutral, it supports 240 V three-pole, four-wire installations, delivering reliable protection and lower lifecycle costs.
Product Information
Extended Description
DG324NGKP Eaton: Eaton General duty cartridge fuse safety switch, 200 A, Painted steel, Class H fuses, Fusible with neutral, Three-pole, Four-wire, NEMA 1, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG324NGKP
UPC
786685952796
Product Length/Depth
15.91 in
Product Height
24.77 in
Product Width
15.52 in
Product Weight
35.6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
General duty, cartridge fused
Amperage Rating
200A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Special features
Retail packaging
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DG324NGKP
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 200 A general duty cartridge fuse safety switch provides a compact, integrated disconnect for mid-range loads. Business Impact: Reduces project complexity and warehouse footprint while delivering reliable overcurrent protection with Class H fuses. Application: Ideal for service entrances and control circuits in commercial and light industrial panels, supporting 240 V systems. Feature: Fusible with neutral enables seamless protection of circuits carrying neutral conductors without separate devices. Business Impact: Improves protection coordination and simplifies wiring schemes, lowering fault risks. Application: Suitable for three-pole, four-wire feeders where a neutral path is required. Feature: NEMA 1 painted steel enclosure offers clean indoor capability. Business Impact: Enhances durability and ease of mounting in controlled environments, reducing maintenance downtime. Application: Fits standard control panels and switchgear assemblies. Feature: UL Listed and NEC 230.62 barrier compliant with a robust enclosure design. Business Impact: Improves regulator compatibility and workplace safety compliance, aiding audit readiness. Application: Enables safer installation in regulated facilities. Feature: Three-pole, four-wire configuration with 240 V rating supports precise three-phase switching. Business Impact: Optimizes motor and load safety while supporting standard industrial voltages. Application: Common in commercial HVAC, pumps, and other three-phase equipment. Feature: Warranty policy provides 1 year from installation or 18 months from shipment. Business Impact: Reduces total cost of ownership and supports procurement planning. Application: Useful for budgeting, asset management, and service scheduling for maintenance teams.
Get a Quick Quote for a Eaton DG324NGKP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG324NGKP?
Enquire Now
FAQs
The DG324NGKP is a three-pole, four-wire device rated for 240 V, with a NEMA 1 enclosure and fusible with neutral configuration. Plan for indoor mounting, ensure proper bus and wiring clearances, and verify that Class H fuses are compatible with the switch. Use appropriate wiring practices to maintain the NEC barrier and easy service access.
This unit combines a 200 A amperage rating with a cartridge fuse safety switch design, enabling reliable isolation for mid-range loads. Its UL Listed status, NEC 230.62 barrier compliance, and painted steel NEMA 1 enclosure support safe operation in typical commercial and light industrial environments, streamlining installation and regulatory compliance.
Confirm the DG324NGKP’s 200 A amperage rating, 240 V operation, fuse class provision for Class H fuses, and fusible-with-neutral configuration. Ensure the replacement fuses meet Class H ratings and that the neutral conductor is correctly connected. Verify three-pole, four-wire wiring to maintain proper phase protection and safety.
Yes. The DG324NGKP includes a NEC 230.62 compliant barrier and is UL Listed, ensuring safety and regulatory alignment for indoor installations. This combination supports safer maintenance, reduces inspection risk, and improves system reliability in regulated facilities.
The unit’s robust 200 A rating, NEMA 1 enclosure, and integrated cartridge fuse protection minimize downtime and simplify panel layouts, delivering lower lifecycle costs. With a one-year warranty from installation (or 18 months from shipment) and standard retail packaging, maintenance planning and asset management become more predictable for procurement teams.
