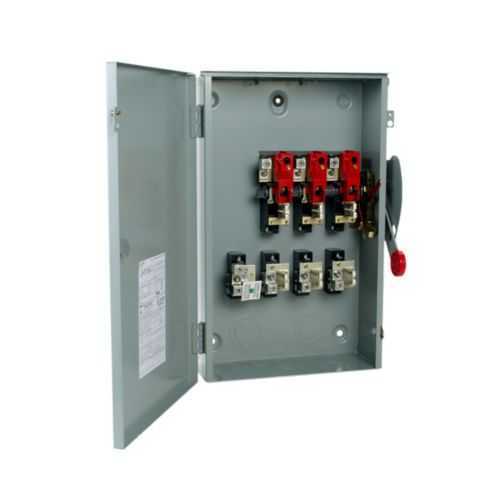

Eaton DG324NRK-CSA General duty safety switch - CSA
Part Number: DG324NRK-CSA
Quick Summary
Eaton general duty cartridge fuse safety switch protects electrical panels by delivering safe, controlled isolation for industrial automation systems. Engineers often wrestle with downtime caused by improper isolation or incompatible fuses. This model is CSA Certified and features a NEC 230.62 compliant barrier and a NEMA 3R enclosure to withstand indoor and outdoor environments. CSA certification, NEC barrier compliance, and a NEMA 3R enclosure deliver robust protection without sacrificing ease of installation. Designed for general protection of 240 V circuits in control panels, it helps streamline procurement and maintenance while supporting reliable electrical protection and safe panel isolation.
Product Information
Extended Description
DG324NRK-CSA Eaton: Eaton General duty cartridge fuse safety switch, 200 A, Painted galvanized steel, Class H fuses, Fusible with neutral, Three-pole, Four-wire, NEMA 3R, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG324NRK-CSA
UPC
786685226743
Product Length/Depth
29.5 in
Product Height
25.5 in
Product Width
17.5 in
Product Weight
55 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
CSA Certified
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
General duty, cartridge fused
Amperage Rating
200A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Special features
CSA certified
Feature: 200 A amperage rating with Class H fuses; Business Impact: enables reliable protection for high-current feeders and minimizes damage from fault events, reducing maintenance downtime; Application: ideal for general duty safety switches serving motor loads and distributed control circuits in 240 V systems. Feature: Fusible with neutral; Business Impact: ensures complete circuit protection and balanced fault clearance, simplifying wiring and protection coordination; Application: suitable for four-wire control panels and multi-circuit mains. Feature: Three-pole, four-wire configuration; Business Impact: simplifies installation and wiring harness design, improves fault-path clarity, and supports straightforward battery or control logic integration; Application: common in power distribution to control panels and equipment racks. Feature: NEMA 3R painted galvanized steel enclosure; Business Impact: provides weather-resistant protection for indoor and outdoor installations, extending service life and reducing enclosure maintenance; Application: ideal for workshop, plant floor, and outdoor enclosures where reliability matters. Feature: CSA Certified and NEC 230.62 compliance; Business Impact: helps meet regulatory and safety requirements, reducing commissioning risk and accelerating safety audits; Application: essential for compliance-driven procurement and site approvals. Feature: 240 V operation and 200 A rating; Business Impact: delivers robust protection for large control circuits with efficient current handling; Application: suitable for general duty safety switching in industrial panels and equipment rooms.
Get a Quick Quote for a Eaton DG324NRK-CSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG324NRK-CSA?
Enquire Now
FAQs
The DG324NRK-CSA is designed for three-pole, four-wire wiring with a fusible neutral. Plan for a 240 V power distribution layout, ensure the NEMA 3R enclosure is mounted to a suitable surface, and verify alignment with Class H fuses. Use proper torque on terminal screws and maintain clearances around the enclosure for cooling and service access. This configuration supports straightforward integration into general duty safety switch panels and reduces wiring complexity.
This model carries CSA Certification and NEC 230.62 compliant barrier, ensuring safety and regulatory alignment for installations. The NEMA 3R enclosure provides weather-resistant protection suitable for indoor and outdoor environments. These certifications support safer commissioning, easier audits, and a smoother procurement process for compliance-driven projects in electrical protection and control panels.
Yes, the DG324NRK-CSA is designed for Class H fuse compatibility and a fusible-with-neutral configuration. It supports three poles with four wires, operating at 240 V. This setup simplifies fuse coordination and panel protection while enabling reliable isolation in general duty safety switching. Ensure available space and panel ratings align with the 29.5 in x 25.5 in x 17.5 in footprint and the 55 lb weight.
Warranty is specified as Eaton’s policy: one year from installation or eighteen months from shipment, whichever occurs first. For service life, rely on the rugged painted galvanized steel enclosure and CSA-certified construction for long-term durability in demanding environments. Regular inspection of fuses, terminal connections, and enclosure integrity supports predictable performance and reduces unexpected downtime.
Deploying the DG324NRK-CSA offers tangible ROI through improved uptime, safer panel isolation, and reduced risk during audits thanks to CSA certification and NEC barrier compliance. Its robust 200 A rating and 240 V operation support large control circuits, while the NEMA 3R enclosure minimizes weather-related failures. Overall, this translates to lower maintenance costs and faster fault handling in electrical protection and control environments.
