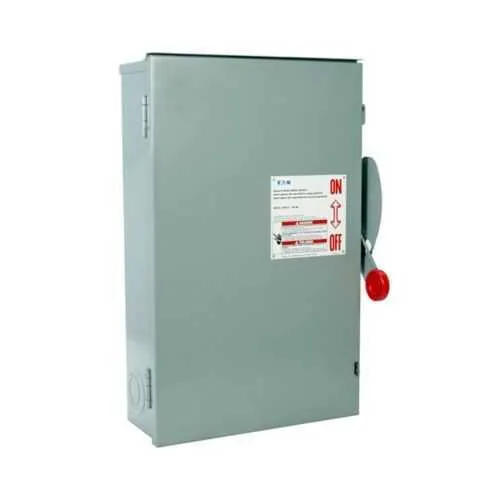

Eaton DG324NRKP General Duty Switch - UL Listed
Part Number: DG324NRKP
Quick Summary
DG324NRKP is a general duty cartridge fuse safety switch for reliable control in industrial panels. Engineers grapple with downtime from nuisance fuse trips and wiring mistakes in demanding environments. UL Listed, NEC 230.62 barrier compliant, and a NEMA 3R painted steel enclosure address safety, environmental readiness, and code compliance. Designed for panel builders and OEMs, it offers straightforward installation with durable protection, reducing field outages and expediting commissioning. With Class H fuses and a neutral fusible configuration, it scales to a variety of motor loads while keeping stock simple and maintenance predictable.
Product Information
Extended Description
DG324NRKP Eaton: Eaton General duty cartridge fuse safety switch, 200 A, NEMA 3R, Painted steel, Class H fuses, Fusible with neutral, Three-pole, Four-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG324NRKP
UPC
786685952802
Product Length/Depth
15.91 in
Product Height
24.77 in
Product Width
15.52 in
Product Weight
35.6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used
Enclosure
NEMA 3R
Enclosure material
Painted steel
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
General duty, cartridge fused
Amperage Rating
200A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Special features
Retail packaging
Feature: 200A amperage rating at 240V with a three-pole, four-wire configuration using Class H fuses. Business impact: Provides robust protection for high-current loads, enabling reliable fault isolation and minimizing nuisance trips that cause unplanned downtime. Application: Ideal for motor control centers, conveyors, and panel assemblies in manufacturing environments where dependable protection and quick serviceability are essential.Feature: NEMA 3R, painted steel enclosure. Business impact: Delivers weather-resistant protection for indoor and outdoor installations, extending equipment life and reducing the need for additional protective housings. Application: Outdoor control panels, remote motor starters, and process lines in facilities with variable weather conditions.Feature: UL Listed certification with NEC 230.62 barrier compliance. Business impact: Eases audits, strengthens code conformance, and supports safe system integration. Application: Industrial facilities and OEM projects requiring documented safety certifications for switchgear.Feature: Fusible with neutral and three-pole, four-wire wiring. Business impact: Simplifies installation, reduces wiring errors, and lowers spare-part variety by leveraging standard Class H fuses. Application: Panel builders upgrading legacy controls and engineers standardizing safety-switch installations.Feature: Warranty and service support. Business impact: One-year warranty from installation or eighteen months from shipment improves asset lifecycle planning and reduces unexpected maintenance costs. Application: Any facility relying on predictable protection for general duty safety switches and everyday machinery.
Get a Quick Quote for a Eaton DG324NRKP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG324NRKP?
Enquire Now
FAQs
Wiring the DG324NRKP involves connecting the three live lines to L1, L2, and L3, with the neutral wired to the neutral terminal as part of the fusible with neutral configuration. Ensure the enclosure is mounted per NEMA 3R guidelines, verify a 240V supply, and use Class H fuses. This arrangement provides safe isolation and straightforward maintenance, reducing miswiring risk during panel setup.
The DG324NRKP is rated for 200A, 240V, three-pole, four-wire operation with Class H fuses. These ratings support typical motor control and conveyor loads in general-duty applications. Note that maximum horsepower ratings apply only when dual-element fuses are used, so plan protection strategy accordingly and ensure compatibility with your motor’s start-up current and inrush characteristics.
Yes. The device is housed in a NEMA 3R painted steel enclosure, offering protection suitable for indoor and moderate outdoor exposure. This design helps resist weather-related ingress and supports installation in weather-variable facilities, reducing the need for additional external housings and simplifying outdoor panel deployment.
The DG324NRKP carries UL Listed certification and NEC 230.62 barrier compliance. These certifications support safer operation, easier regulatory audits, and smoother integration into code-compliant control systems across industrial facilities, OEM projects, and panel builds.
The product carries a one-year warranty from installation or eighteen months from shipment, whichever occurs first. This warranty, combined with standard spare-part compatibility (Class H fuses and fusible-with-neutral configuration), helps optimize asset lifecycle planning, reduce maintenance surprises, and stabilize long-term operating costs.
