Eaton DG324UGK General Duty Safety Switch - UL Listed
Part Number: DG324UGK
Quick Summary
The Eaton DG324UGK general duty safety switch provides reliable circuit protection for indoor electrical panels in industrial and commercial settings. For panel builders and maintenance teams, coordinating safe isolation, wiring space, and code-compliant barrier installation can slow projects. This unit carries UL Listed certification, NEC 230.62(C) barrier compliance, and a rugged NEMA 1 painted steel enclosure designed for indoor use. Designed to integrate with standard low-voltage power distribution and motor-control circuits, it helps shorten commissioning time while ensuring safe disconnection and regulatory compliance. By pairing strong durability with straightforward wiring, it supports a cost-effective protection strategy for facilities seeking dependable performance and easier maintenance.
Product Information
Extended Description

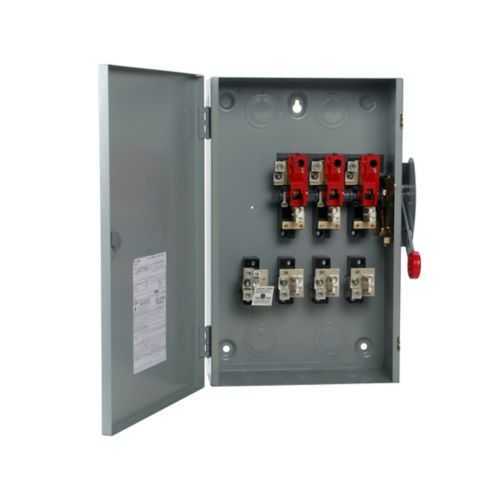

DG324UGK Eaton: Eaton General duty non-fusible safety switch, single-throw, 200 A, NEMA 1, Indoor, Painted steel, Three-pole, Three-wire, 240 V
Product Name
Eaton general duty non-fusible safety switch
Catalog Number
DG324UGK
UPC
782113213552
Product Length/Depth
11.25 in
Product Height
24.75 in
Product Width
16 in
Product Weight
48 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse configuration
Non-fusible
Number Of Poles
Three-pole
Number of wires
3
Type
Non-fusible, single-throw
Amperage Rating
200A
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DG324UGK
Selling Policy 25-000 - Distribution and Control Products and Services
The DG324UGK is a three-pole, non-fusible general duty safety switch rated for 200A at 240V, delivering reliable, code-compliant disconnection for motor control and distribution panels. Feature → Business Impact → Application: The three-pole design enables clean, predictable switching of three-wire feeders, reducing miswiring risk and improving panel layout efficiency in industrial control cabinets. This translates to faster installation, easier troubleshooting, and lower labor costs during commissioning in general distribution and machine control setups. The NEMA 1 enclosure and painted steel construction provide durable indoor protection, minimizing corrosion and maintenance needs in harsh environments and ensuring long-term reliability in panel boards and control enclosures. Feature → Business Impact → Application: UL Listed certification and NEC 230.62(C) barrier compliance give you auditable safety and regulatory alignment for wall-mounted and embedded applications in facilities that must meet strict electrical codes. Feature → Business Impact → Application: The non-fusible, simple wiring topology reduces spare parts inventory and simplifies field wiring, promoting quicker changeovers and safer routine maintenance. We also address installation considerations with a clear note that the unit is not approved for service entrance unless a neutral kit is installed, guiding proper integration with service entrance requirements. Warranty information from Eaton—one year from installation or 18 months from shipment—further supports maintenance planning and total cost of ownership discussions for stakeholders.
Get a Quick Quote for a Eaton DG324UGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG324UGK?
Enquire Now
FAQs
DG324UGK is designed for three-pole, 200A, 240V indoor use with a NEMA 1 enclosure. It fits common panel boards and aligns with standard Eaton wiring accessories. When integrating, verify enclosure dimensions (11.25 in depth, 24.75 in height, 16 in width) and ensure mounting provisions match your panel layout. Use approved neutral or interlock components as specified.
Core specs include a 200A amperage rating, 240V voltage rating, three-pole non-fusible configuration, NEMA 1 indoor enclosure, and UL Listed certification. It weighs approximately 48 lb and measures 11.25 in deep, 24.75 in tall, and 16 in wide. These specs support reliable isolation for general distribution and motor-control applications.
DG324UGK is not approved for service entrance unless a neutral kit is installed. For service entrance use, procure the appropriate neutral kit and follow Eaton’s installation guidelines. This ensures compliance with NEC requirements and maintains proper safety isolation at the service disconnect point.
This model is UL Listed and complies with NEC 230.62(C) barrier requirements. It features a NEMA 1 indoor enclosure and painted steel construction, making it suitable for indoor general-duty protection in compliant panel installations and general distribution applications.
Warranty covers one year from installation or 18 months from shipment, whichever occurs first. The robust steel enclosure and straightforward wiring reduce maintenance downtime and spare parts needs. Its reliability supports lower total cost of ownership in facilities-focused protection strategies and faster changeouts during routine maintenance.
