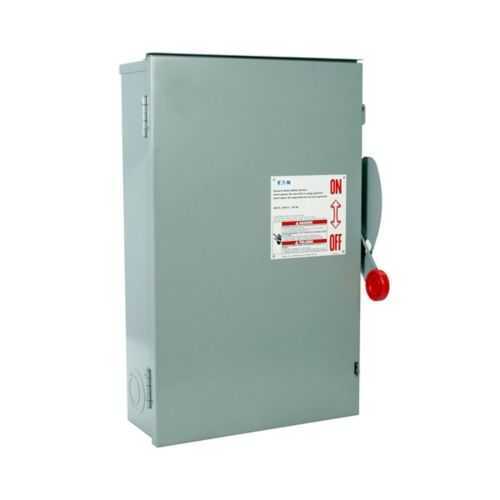

Eaton DG324URK General Duty Non-Fusible Safety Switch UL
Part Number: DG324URK
Quick Summary
The Eaton DG324URK is a general duty non-fusible safety switch designed for reliable isolation in industrial power distribution applications. Engineers often wrestle with undersized enclosures, complex wiring, and code-compliance gaps that lead to downtime. This unit delivers UL Listed safety with a NEMA 3R rainproof enclosure and robust painted galvanized steel construction, suitable for outdoor and damp indoor environments. It features a 200A amperage rating at 240V, three poles and three wires, all in a compact footprint. By meeting NEC 230.62 barrier requirements and offering a straightforward installation, it reduces commissioning time and maintenance costs. The DG324URK complements building automation and machine control projects, while offering easy retrofits and integration with neutral-kit considerations for service entrances.
Product Information
Extended Description
DG324URK Eaton: Eaton General duty non-fusible safety switch, single-throw, 200 A, NEMA 3R, Rainproof, Painted galvanized steel, Three-pole, Three-wire, 240 V
Product Name
Eaton general duty non-fusible safety switch
Catalog Number
DG324URK
UPC
782113213576
Product Length/Depth
11.25 in
Product Height
25.5 in
Product Width
16 in
Product Weight
55 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Number Of Poles
Three-pole
Number of wires
3
Type
Non-fusible, single-throw
Amperage Rating
200A
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DG324URK
Feature → Business Impact → Application: The DG324URK delivers 200A at 240V in a three-pole, three-wire configuration, enabling reliable isolation for heavy-duty feeders and control circuits. This supports faster fault isolation, reduces downtime, and simplifies panel wiring for motor control and building automation applications. Application: ideal for commercial and light-industrial power distribution blocks where robust, dependable isolation is required. Feature → Business Impact → Application: The NEMA 3R enclosure made from painted galvanized steel provides rainproof, weather-resistant protection. This reduces corrosion risk and maintenance costs in outdoor and damp indoor environments, improving long-term uptime for outdoor panels, service entrances, and weather-exposed installations. Application: outdoor feeders and stand-alone safety switch locations in harsh climates. Feature → Business Impact → Application: UL Listing and NEC 230.62 barrier compliance ensure code-conforming installations with clear safety demarcations. This mitigates regulatory risk, streamlines approvals, and supports safer commissioning for building service entrances and automated machinery. Application: projects with strict safety and compliance requirements. Feature → Business Impact → Application: Non-fusible, single-throw operation simplifies maintenance and reduces inventory of spare fuses. This enables quicker isolation during routine servicing and minimizes downtime in control circuits, service panels, and equipment feeds. Application: daily maintenance routines in manufacturing and processing environments. Feature → Business Impact → Application: The unit’s dimensions and weight (11.25 in depth, 16 in width, 25.5 in height, approx. 55 lb) inform space planning and mounting decisions, ensuring compatibility with existing enclosures and retrofit projects. Application: retrofit installations or new facilities where footprint planning and mounting clearances matter. Feature → Business Impact → Application: Warranty and available installation resources (spec sheet) provide confidence in long-term support and easy access to technical guidance. Application: procurement and project teams seeking predictable vendor support and clear installation guidelines.
Get a Quick Quote for a Eaton DG324URK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG324URK?
Enquire Now
FAQs
DG324URK is designed for general duty isolation in 240V power circuits. It is ideal for control panels, outdoor feeders, and machine isolations in commercial and light industrial settings. The three-pole, three-wire configuration supports standard 200A service feeds, while the non-fusible design simplifies maintenance and reduces spare parts requirements during field service.
Key specifications include a 200A amperage rating, 240V voltage rating, three-pole construction, and non-fusible, single-throw operation. It uses a NEMA 3R enclosure with painted galvanized steel and weighs about 55 lb, which informs handling and mounting. UL Listed and NEC barrier compliance further impact selection for code-approved installations.
Yes. The NEMA 3R rainproof enclosure and painted galvanized steel construction provide outdoor resilience and corrosion resistance, enabling reliable performance in outdoor or damp indoor environments. The design also supports straightforward mounting and compatible wiring practices, reducing maintenance in weather-exposed locations.
DG324URK supports NEC 230.62 barrier compliance and is UL Listed, helping meet safety and installation standards. Note that service entrance installations require a neutral kit per catalog notes. This clarifies application boundaries and reduces the risk of code violations during commissioning.
The unit carries a one-year warranty from installation or eighteen months from shipment, whichever occurs first. Eaton provides specification sheets and technical data to support installation, plus access to engineering support for retrofit planning and on-site guidance, ensuring predictable long-term performance and parts availability.
