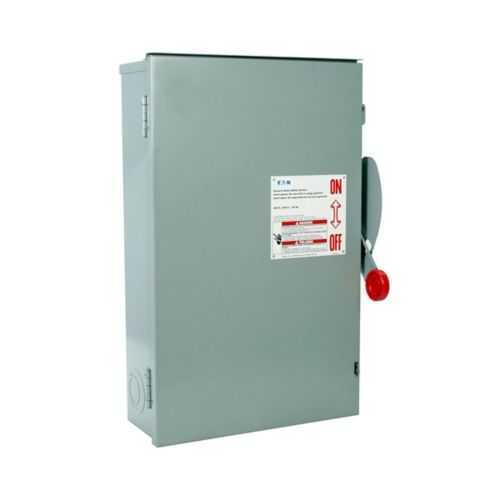

Eaton DG324URK-CSA General duty safety switch - CSA
Part Number: DG324URK-CSA
Quick Summary
Eaton general duty non-fusible safety switch provides reliable isolation for 240 V, three-wire systems. Weather exposure, regulatory compliance, and field wiring can complicate safe disconnects, risking downtime. CSA Certified, NEC 230.62(C) compliant barrier, and a NEMA 3R rainproof enclosure ensure code-compliant operation in harsh environments. Designed for 200 A, 240 V three-pole configurations, it supports durable, cost-effective protection for motors, feeders, and switchgear, while aligning with procurement and installation workflows for facilities and OEMs.
Product Information
Extended Description
DG324URK-CSA Eaton: Eaton General duty non-fusible safety switch, single-throw, 200 A, NEMA 3R, Rainproof, Painted galvanized steel, Three-wire, Three-pole, 240 V
Product Name
Eaton general duty non-fusible safety switch
Catalog Number
DG324URK-CSA
UPC
786685226811
Product Length/Depth
11.25 in
Product Height
25.5 in
Product Width
16 in
Product Weight
55 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
CSA Certified
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Number Of Poles
Three-pole
Number of wires
3
Type
Non-fusible, single-throw
Amperage Rating
200A
Voltage rating
240V
Product Category
General duty safety switch
Special features
CSA Certified
200 A amperage rating with a non-fusible, single-throw design provides a robust main disconnect. This reduces arc exposure during maintenance and startup, delivering safer isolation for motor feeders and panels in commercial and light industrial settings. Three-pole, three-wire configuration supports standard 3-phase loads and feeder circuits, enabling consistent protection and easier coordination with downstream breakers while minimizing wiring errors during installation. The painted galvanized steel enclosure with a NEMA 3R rating delivers weatherproof performance for outdoor and damp locations, lowering retrofit costs and extending service life in harsh environments. NEC 230.62(C) compliant barrier and CSA certification provide regulatory confidence, smoothing inspections and facilitating compliance across industrial facilities. With a 55 lb weight and compact 25.5 in H x 16 in W x 11.25 in D footprint, installation is straightforward, reducing labor time and total cost of ownership. A one-year warranty supports ongoing service and parts availability, aligning with standard procurement cycles.
Get a Quick Quote for a Eaton DG324URK-CSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG324URK-CSA?
Enquire Now
FAQs
DG324URK-CSA is designed with a NEMA 3R enclosure and a painted galvanized steel body, making it suitable for outdoor rain exposure and damp indoor environments. Its 200 A, 240 V, three-pole configuration supports common industrial service disconnects, while the CSA certification and NEC 230.62(C) barrier help ensure regulatory compliance during installation and inspections.
The unit is a non-fusible, single-throw switch rated for 200 A at 240 V. It features a three-pole, three-wire configuration for standard 3-phase service. The non-fusible design provides straightforward operation and reduces maintenance complexity compared with fusible disconnects.
Yes. The NEMA 3R rainproof enclosure, painted galvanized steel construction, and CSA certification make it well-suited for outdoor service entrances and motor feeders exposed to weather. Its rugged build supports reliable isolation and reduces weather-related maintenance costs in industrial facilities.
DG324URK-CSA is CSA Certified and complies with NEC 230.62(C) barrier requirements. These certifications help ensure code compliance, improve pass rates during inspections, and provide a reliable standard for life-safety disconnect applications in facilities and OEM equipment.
The product includes Eaton’s standard warranty: one year from installation or eighteen months from shipment, whichever occurs first. Documentation includes Eaton’s specification sheet for detailed technical data, facilitating installation planning, maintenance planning, and ROI analysis for facilities managers and procurement teams.
