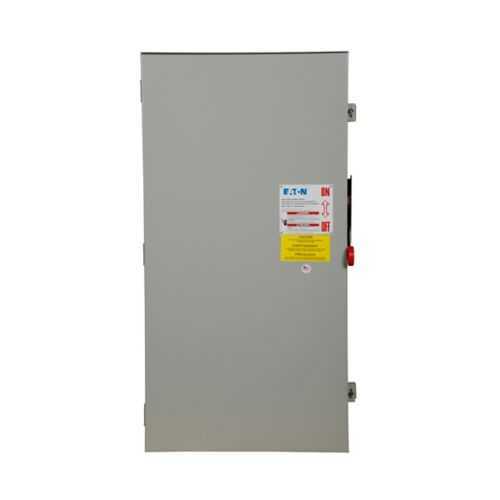

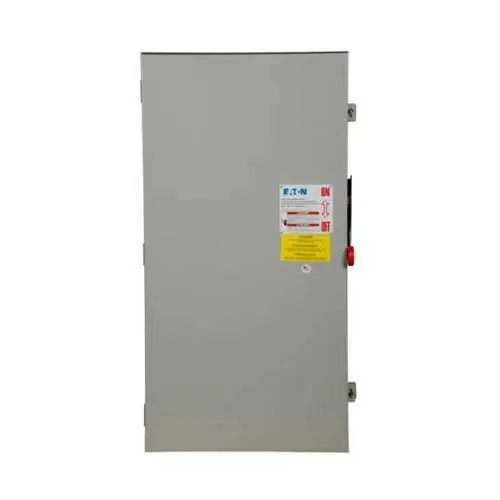

Eaton DG325URK Non-Fusible Safety Switch - UL Listed
Part Number: DG325URK
Quick Summary
The Eaton DG325URK non-fusible safety switch provides reliable isolation for general‑duty power distribution in industrial facilities. This rugged disconnect helps prevent accidental energization and protects maintenance teams during service and testing. It features a rainproof NEMA 3R enclosure and field-neutral kit options, addressing outdoor installations and retrofit needs. UL Listed and NEC 230.62 barrier compliance reinforce safety and regulatory alignment, while the rugged galvanized steel housing withstands harsh environments. For purchasing teams, the combination of robust protection, straightforward installation, and Eaton's warranty adds predictable downtime management and long‑term cost savings. This model integrates seamlessly with 240V three‑wire systems and three‑pole configurations, supporting scalable, reliable control of general purpose equipment.
Product Information
Extended Description
DG325URK Eaton: Eaton General duty non-fusible safety switch, single-throw, 400 A, NEMA 3R, Rainproof, Painted galvanized steel, Three-pole, Three-wire, 240 V
Product Name
Eaton general duty non-fusible safety switch
Catalog Number
DG325URK
UPC
782113589541
Product Length/Depth
7.27 in
Product Height
44.74 in
Product Width
23.08 in
Product Weight
120 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Drilled to accept field installed neutral kits
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Number Of Poles
Three-pole
Number of wires
3
Type
Non-fusible, single-throw
Amperage Rating
400A
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DG325URK
Feature: NEMA 3R rainproof enclosure in painted galvanized steel. Business Impact: Provides weather-resistant protection for outdoor and semi-enclosed installations, reducing corrosion risk and downtime. Application: Outdoor motor disconnects, compressors, and general duty switchgear in harsh environments. Feature: 400 A amperage rating with 240 V, three-pole, three-wire configuration. Business Impact: Enables safe, code-compliant isolation of large general-duty circuits while supporting compatible motor loads and distribution panels. Application: Main disconnects for manufacturing lines and general power distribution in facilities with 240 V systems. Feature: Non-fusible, single-throw operation. Business Impact: Simplifies maintenance and testing procedures with straightforward operation and predictable fault isolation. Application: General purpose power isolation where fusing is not required. Feature: Drilled to accept field-installed neutral kits. Business Impact: Offers flexible retrofits and wiring options without expensive enclosure changes. Application: Circuits requiring a neutral in a three-wire setup or future expansion. Feature: UL Listed and NEC 230.62 barrier compliant. Business Impact: Enhances regulatory compliance, reduces audit findings, and speeds installation approvals. Application: Safety-critical power-distribution setups in industrial plants. Feature: Compact footprint with defined dimensions (7.27 in depth, 44.74 in height, 23.08 in width) and 120 lb weight. Business Impact: Predictable space planning and mounting compatibility in existing electrical rooms or outdoors. Application: Retrofit projects and new installations where space is a concern.
Get a Quick Quote for a Eaton DG325URK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG325URK?
Enquire Now
FAQs
The DG325URK is built with a NEMA 3R rainproof enclosure and a rugged galvanized steel body, making outdoor mounting suitable. Ensure mounting per its footprint (dimensions: 7.27 in depth, 44.74 in height, 23.08 in width) and provide adequate clearance for wiring, service access, and field-neutral kit installation as needed.
Key specs include a 400 A amperage rating, 240 V voltage rating, three-pole, three-wire configuration, and non-fusible, single-throw operation. It is UL Listed and compliant with NEC 230.62 barrier requirements, designed for general-duty power distribution in industrial facilities.
Yes. As a general-duty non-fusible safety switch with a three-pole, three-wire arrangement and 240 V rating, it is well-suited for main disconnects in motor control centers and general power distribution tasks in manufacturing and processing environments, with robust outdoor and indoor applicability.
Rely on UL Listed certification for safety compliance and NEC 230.62 barrier conformity to ensure compliant installation. The NEMA 3R enclosure rating provides weather protection, supporting regulatory acceptance for outdoor installations.
The DG325URK includes a one-year warranty from installation or 18 months from shipment and offers field-neutral kit compatibility to minimize retrofit costs. Its simple non-fusible design reduces maintenance complexity and downtime, contributing to lower total cost of ownership over the life of general-duty power-distribution circuits.
