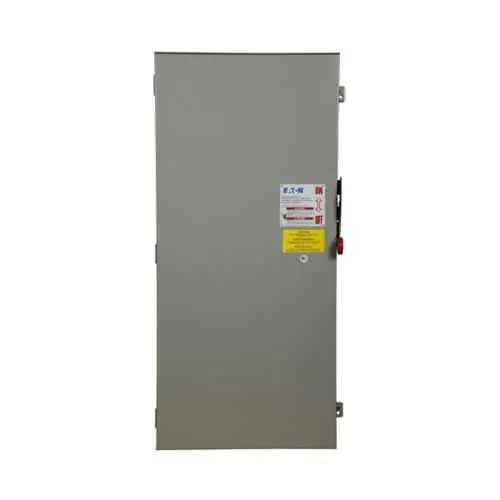

Eaton DG326FRK General Duty Safety Switch - UL Listed
Part Number: DG326FRK
Quick Summary
Eaton DG326FRK general duty cartridge fuse safety switch provides reliable power control in commercial and industrial panels. For engineers facing downtime and safety compliance pressure, this unit offers a compact, code-ready solution that reduces wiring errors and nuisance trips. It carries UL Listed certification, NEC 230.62 (C) compliant barrier, and a rugged NEMA 3R enclosure, enabling safe operation in indoor and outdoor environments. With 600 A (240 V) ratings and fusible without neutral configuration, it delivers robust protection without complicating control circuits. The design supports straightforward installation and service, helping you meet maintenance schedules and reduce total cost of ownership while maintaining essential safety margins.
Product Information
Extended Description
DG326FRK Eaton: Eaton General duty cartridge fuse safety switch, 600 A, NEMA 3R, Painted galvanized steel, Class H fuses, Fusible without neutral, Three-pole, Three-wire, Category: general duty safety switch, 240 V
Product Name
Eaton general duty cartridge fuse safety switch
Catalog Number
DG326FRK
UPC
782113589589
Product Length/Depth
14.25 in
Product Height
52.7 in
Product Width
24 in
Product Weight
150 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Maximum hp ratings apply only when dual element fuses are used. Solid neutral bars are not included. Must be ordered separately. Warning! Switch is not approved for service entrance unless a neutral kit is installed.
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
General duty, cartridge fused
Amperage Rating
600A
Fuse class provision
Class H fuses
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DG326FRK
Feature: General duty, cartridge fused switch with three-pole configuration. Business Impact: Simplifies panel protection while delivering reliable fault interruption, reducing unplanned downtime. Application: Suitable for general distribution in compact control panels where space is limited and quick, safe switching is required. Feature: NEMA 3R enclosure in painted galvanized steel. Business Impact: Enables outdoor and harsh-environment installations without compromising safety or corrosion resistance. Application: Ideal for exterior switchgear rooms and loading areas in industrial facilities. Feature: 600A amperage rating at 240V with Class H fuses. Business Impact: Delivers high-current protection with proven fuse classes, improving short-circuit coordination and component life. Application: Large motors and heavy loads in manufacturing lines need robust protection. Feature: Fusible without neutral and solid neutral-bar notes. Business Impact: Reduces wiring complexity and allows configurable protection; neutral kit can be added as needed. Application: Utility and machine control panels where a neutral is not required by default. Feature: Compliance and certification framework. Business Impact: UL Listed status and NEC barrier compliance help meet regulatory requirements with minimal engineering effort. Application: Design-in for code-compliant installations in commercial and industrial facilities. Feature: Installation notes regarding maximum HP ratings. Business Impact: Provides clear guidance to avoid overrating switches, lowering service costs and risk. Application: Coexists with dual-element fuses when higher HP ratings are needed.
Get a Quick Quote for a Eaton DG326FRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG326FRK?
Enquire Now
FAQs
The DG326FRK is a three-pole, fusible without neutral general duty safety switch designed for 240 V systems. It mounts in NEMA 3R enclosures and accepts Class H fuses. Note that solid neutral bars are not included and must be ordered separately. It is compatible with standard industrial control panels and requires a neutral kit only if service entrance use is planned.
DG326FRK provides a 600A amperage rating at 240V and uses Class H fuses for protection. It is fusible without a neutral by default, with HP ratings (maximum) applicable only when dual-element fuses are used. This configuration supports reliable protection for large loads while enabling flexible fuse coordination in panel designs.
Yes. The DG326FRK is categorized as a general duty safety switch and is suitable for motor control panels and general electrical distribution. Its three-pole configuration supports three-phase circuits, and its rugged NEMA 3R enclosure is appropriate for indoor and outdoor environments, assuming correct neutral kit considerations and fuse selections per HP requirements.
DG326FRK is UL Listed and features NEC 230.62 (C) compliant barrier protection. The enclosure is a NEMA 3R rated unit, suitable for outdoor use. These certifications and ratings help ensure code compliance and safety in both new installations and upgrades of existing electrical systems.
Warranty terms follow Eaton Selling Policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. This, combined with UL-listed certification and durable galvanized steel construction, helps minimize maintenance costs and equipment downtime. Proper fusion strategy (including dual-element fuses if HP is a concern) can further reduce lifecycle costs by extending component life and reducing failures.
