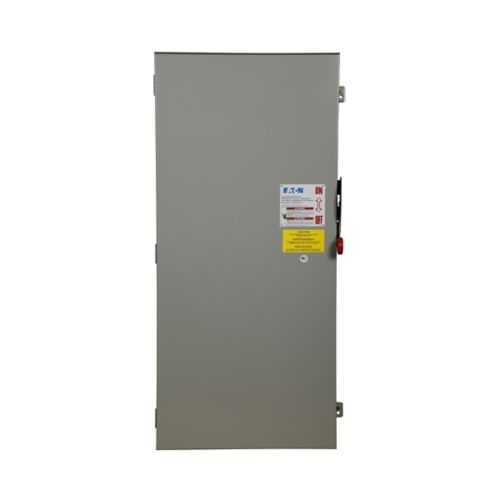

Eaton DG326URK Safety Switch - UL Listed NEMA 3R
Part Number: DG326URK
Quick Summary
Eaton DG326URK safety switch provides reliable isolation for general-duty control panels in commercial and light-industrial environments. Field maintenance, downtime, and wiring confusion are common challenges; this unit simplifies installation and fault isolation to keep critical processes online. It carries UL Listed certification, a NEMA 3R rainproof enclosure, and NEC 230.62 barrier compliance, ensuring safety and code alignment in real-world installations. Designed for 240V three-wire systems with three poles, it supports field-installed neutral kits and reduces wiring complexity, offering a clear business value for panel builders, machine builders, and facilities teams.
Product Information
Extended Description
DG326URK Eaton: Eaton General duty non-fusible safety switch, single-throw, 600 A, NEMA 3R, Rainproof, Painted galvanized steel, Three-pole, Three-wire, 240 V
Product Name
Eaton general duty non-fusible safety switch
Catalog Number
DG326URK
UPC
782113589602
Product Length/Depth
14.25 in
Product Height
52.7 in
Product Width
24 in
Product Weight
135 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Drilled to accept field installed neutral kits
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Number Of Poles
Three-pole
Number of wires
3
Type
Non-fusible, single-throw
Amperage Rating
600A
Voltage rating
240V
Product Category
General duty safety switch
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DG326URK
DG326URK is a general-duty non-fusible safety switch rated for 600A at 240V with three poles and three wires. This combination provides reliable service disconnects for commercial and light-industrial equipment, improving protection for personnel and downstream circuits while simplifying panel wiring. The NEMA 3R enclosure, painted galvanized steel, delivers rainproof operation in exposed or tough locations, reducing weather-related failures and maintenance. Field-installed neutral kit compatibility is supported by provisions to accept neutrals, shortening field modification times and enabling flexible, code-compliant terminations. Compliance and certification include UL Listed status and NEC 230.62 barrier adherence, ensuring installations meet regulatory requirements. Overall, the DG326URK supports a balanced installed base footprint with a predictable mount, contributing to lower lifecycle costs and faster project commissioning.
Get a Quick Quote for a Eaton DG326URK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DG326URK?
Enquire Now
FAQs
Install the DG326URK as a three-pole, three-wire disconnect in a suitable enclosure. Verify the 240V supply and confirm voltage at the feed and load terminals before wiring. Utilize the field-installed neutral kit provisions noted in the catalog, and follow NEC guidelines for service disconnect clearances and barrier installation. Adhere to Eaton recommendations for torque and terminal practices to ensure a safe, code-compliant installation.
Yes. The DG326URK features a NEMA 3R enclosure with a painted galvanized-steel body, providing rainproof protection for outdoor and exposed installations. This design reduces weather-related failures and supports reliable operation in harsh environments, aligning with common industrial site requirements.
DG326URK is a 600A, 240V general-duty safety switch with three poles and three wires. It is non-fusible and designed for 240V three-wire control circuits. Overall dimensions include a depth of 14.25 in, height of 52.7 in, and width of 24 in, with a product weight of 135 lb, suitable for standard panel and service-disconnect applications.
Yes. The catalog notes indicate the unit is drilled to accept field-installed neutral kits, allowing customization for neutral requirements without needing a different preconfigured variant. This feature reduces field modification time and supports flexible wiring in three-wire, three-phase systems.
DG326URK carries a one-year warranty from installation or 18 months from shipment, whichever occurs first. It is UL Listed and NEC 230.62 barrier compliant, ensuring alignment with safety standards and electrical codes for reliable, compliant panel protection.
