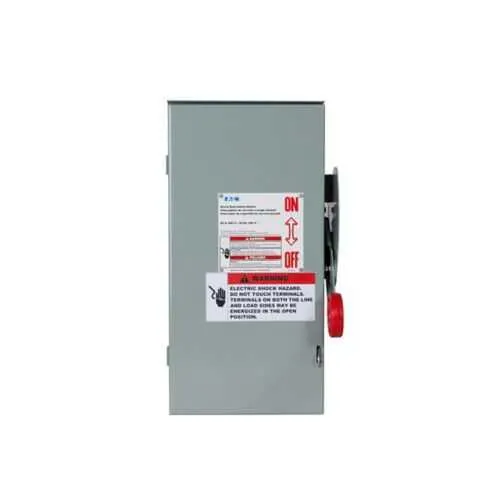

Eaton DH161URKN DC Disconnect - UL Listed, NEMA 3R
Part Number: DH161URKN
Quick Summary
Eaton DH161URKN DC disconnect provides reliable isolation for 600 VDC circuits in industrial and solar-power applications. This single-pole, non-fusible disconnect delivers safe, code-compliant DC shutdown to protect personnel and equipment. The rugged enclosure is a painted galvanized steel NEMA 3R, delivering weather resistance for outdoor environments while UL Listed certification confirms adherence to safety standards. For procurement teams and engineers, the design reduces field wiring complexity and installation risk. With factory-installed neutral assemblies and a compact form factor, it supports streamlined installation and predictable maintenance, helping minimize downtime and maximize system uptime in demanding environments.
Product Information
Extended Description
DH161URKN Eaton: Eaton DC disconnect, Single-throw, 30 A, NEMA 3R, Painted galvanized steel, Class R fuses, Non-Fusible, Single-pole, One-wire, 5 at 250 Vdc
Product Name
Eaton DC disconnect
Catalog Number
DH161URKN
UPC
786685375694
Product Length/Depth
25.13 in
Product Height
15.81 in
Product Width
8.87 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Special features
Neutral assemblies factory installed
Type
Single-throw
Amperage Rating
30A
Number of circuits
1
Protection
Non-fusible
Number of poles
Single-pole
Voltage rating
600 VDC
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Protection
Non-fusible
DC disconnects for 600VDC solar photovoltaic installations (single circuit)
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DH161URKN
Feature → Business Impact → Application: Single-pole, non-fusible DC disconnect rated at 30A and 600 VDC provides straightforward isolation for critical DC circuits, improving safety and reducing the risk of arc-flash during maintenance. This translates to faster lockout-tagout procedures and lower downtime in manufacturing lines or solar arrays. Feature → Business Impact → Application: NEMA 3R painted galvanized steel enclosure delivers weather resistance for outdoor installations, protecting components from corrosion and extending service life in harsh environments such as rooftops and outdoor utility sites. Feature → Business Impact → Application: UL Listed certification offers compliance confidence for electrical installations, simplifying audits and procurement across regulated facilities. Feature → Business Impact → Application: Factory-installed neutral assemblies shorten wiring time and minimize field errors, enabling faster commissioning and consistent electrical performance in DC distribution panels. Feature → Business Impact → Application: Compact 5 at 250 Vdc rating and 1 circuit/1 pole configuration support compact layouts, enabling seamless integration into existing switchgear and control panels while reducing footprint and total cost of ownership.
Get a Quick Quote for a Eaton DH161URKN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH161URKN?
Enquire Now
FAQs
DH161URKN is a single-pole, 30A DC disconnect designed for integration into DC distribution panels and switchgear with standard 600 VDC ratings. Its compact footprint and factory-installed neutral assemblies reduce wiring complexity and support straightforward retrofits into existing installations.
Key specs include 30A amperage rating, 1 circuit, non-fusible protection, 600 VDC voltage rating, and a single-pole configuration. It is housed in a NEMA 3R enclosure, with UL Listed certification for safety and reliability in demanding environments.
Yes. The NEMA 3R enclosure and outdoor-ready galvanized steel construction make it well-suited for outdoor DC distribution, including solar PV installations, where weather resistance and safe isolation are critical.
The product is UL Listed and features a NEMA 3R enclosure, which means it meets safety standards for outdoor electrical equipment and is suitable for installation in harsh or weather-exposed environments, helping with compliance and inspection readiness.
Eaton’s warranty policy provides coverage for one year from installation or eighteen months from shipment, whichever occurs first. This supports ongoing reliability and defines clear maintenance expectations for procurement and facilities teams.
