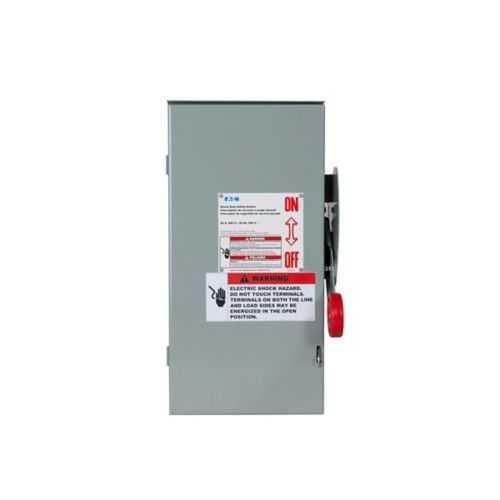

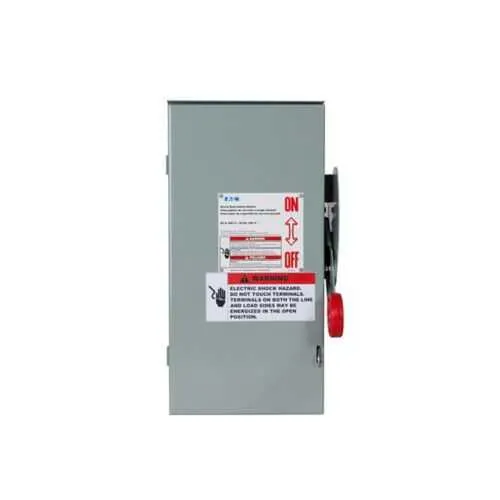

Eaton DH162NRK DC Disconnect - UL Listed 600 VDC
Part Number: DH162NRK
Quick Summary
Eaton DC disconnect DH162NRK provides a safe, switchable DC disconnect for 600 VDC solar and battery systems. Installers struggle with corroding enclosures and unreliable fusible links in exposed locations; this unit minimizes downtime with durable painted galvanized steel and precise engineering. UL Listed certification and a NEMA 3R enclosure rating provide safety compliance and reliable weather resistance for outdoor solar and industrial applications. The device supports a single 60 A circuit rated at 600 VDC with fusible protection and a neutral, helping you meet code requirements. With compatible mounting options and documented specifications, it reduces integration risk across distributed energy, rooftop PV, and battery storage installations. Beyond compliance, this solution offers long-term cost savings through reduced maintenance and streamlined installation.
Product Information
Extended Description
DH162NRK Eaton: Eaton DC disconnect, 60 A, NEMA 3R, Painted galvanized steel, Class R, Fusible with neutral, Single-pole, Two-wire, Solar disconnect switch, 600 V, #14-#2 Cu/Al
Product Name
Eaton DC disconnect
Catalog Number
DH162NRK
UPC
786685375861
Product Length/Depth
9.89 in
Product Height
16.27 in
Product Width
7.75 in
Product Weight
17 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/grounded system
Amperage Rating
60 A
Number of circuits
1
Protection
Fusible
Voltage rating
600 VDC
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Protection
Fusible
DC disconnects for 600VDC solar photovoltaic installations (single circuit)
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Switching Devices Flex Center
Eaton Specification Sheet - DH162NRK
Feature: 60 A single-pole fusible with neutral provides safe isolation and protection for DC power feeds. Business Impact: Reduces arc-flash risk, protects inrush and fault conditions, and simplifies code-compliant DC distribution for solar and battery systems. Application: Ideal for solar PV arrays and industrial DC power distribution.Feature: NEMA 3R enclosure with painted galvanized steel delivers outdoor-grade durability. Business Impact: Enhances weather resistance and corrosion protection, extending service life in rooftop and open-site installations. Application: Outdoor solar disconnects and rugged industrial DC protection enclosures.Feature: 600 VDC rating supports high-voltage DC systems. Business Impact: Enables direct integration with 600 VDC solar and battery storage networks, reducing the need for intermediate breakers. Application: rooftop PV, utility-scale DC distribution, and DC power management.Feature: UL Listed certification confirms safety compliance and procurement confidence. Business Impact: Accelerates approvals, streamlines purchasing, and reduces risk in regulated facilities. Application: Industrial facilities, commercial solar installations, and utility customers.Feature: Conductor range of #14-#2 Cu/Al and single-pole, two-wire configuration simplifies wiring. Business Impact: Eases field installation, reduces material handling, and supports flexible wiring topologies for distributed energy resources. Application: Quick-connect solar DC protection with neutral conductor integration.Feature: Compact footprint and defined dimensions (9.89 in depth, 16.27 in height, 7.75 in width) with a 17 lb weight. Business Impact: Improves space planning and mounting in restricted enclosures and service cabinets. Application: Panelboard integration, outdoor mounting, and retrofit projects.
Get a Quick Quote for a Eaton DH162NRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH162NRK?
Enquire Now
FAQs
DH162NRK is designed for outdoor and indoor DC protection in solar PV arrays and battery storage systems. It provides a single 60 A circuit, 600 VDC rating, fusible protection with a neutral, and a NEMA 3R enclosure for weather-resistant performance.
Yes, the unit is UL Listed. It is configured for a NEMA 3R enclosure, providing weather resistance suitable for outdoor solar installations and robust industrial DC protection in harsh environments.
Amperage rating is 60 A, voltage rating 600 VDC, single circuit, fusible with neutral, and conductor compatibility for #14-#2 Cu/Al, enabling flexible wiring for diverse distributed energy systems.
With a single-pole, two-wire configuration and neutral, it simplifies wiring for solar PV arrays and DC power distribution. The rugged enclosure supports outdoor mounting, reducing maintenance and enabling compliant, reliable protection in rooftop and yard installations.
Warranty follows Eaton policy 25-000, one year from installation or 18 months from shipment, whichever occurs first. Regular fuse checks and inspections are recommended to maintain optimal protection and minimize downtime.
